Capresso Infinity Bottom Conical Burr Replacement

Geschrieben von: Nina Mackin

Kommentare: 22

Capresso Infinity Bottom Conical Burr Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

20 Minuten

Einleitung

If you need to replace the bottom conical burr, follow this guide to access it. The bottom conical burr is essential to having finely ground coffee, and if it is dull or no longer working, it needs to be replaced. For this guide you will need a Torx Security T20 Bit Screwdriver and an extension bit. To access the bottom conical burr, you will need to follow previous guides on replacing the outside metal casing. This guide is simple once you’ve finished the other.

Werkzeuge

Schritt 1

Twist the top plastic container to the left counterclockwise.
Pull upwards to remove.

Schritt 2

Twist the top burr to the left counter clockwise.
Pull upwards to remove.

Schritt 3

Flip entire device upside down.
Remove two rubber coverings on the back of the device.

Schritt 4

Remove four 11.59mm T10 screws.
The screws will have small circular washers under them. Put them aside for reassembly.

T8 Torx screws. The two screws towards the front of the machine are below those circled in red in the picture.

Canbo - 11/10/20

My housing is plastic, and was just held on by clips holding the outer part to the base, I gently pried the housing away and lifted the housing off. It’s a Capresso model 560

panchocole - 21/01/21

Mine is as well. I tried digging the “rubber washers” out but it was only scratching plastic.

There are 5 areas you can slide a slim flathead into and gently wiggle to get the casing to slide out from the base. Be firm yet gentle.

Joseph Hirn -

Schritt 5

Lift the metal outside casing off the black base.
Flip the outside casing forward so you have access to the inside of it.

What about the hard black plastic gasket that fits under the inside lip of the outer metal case?

Nicole - 02/03/19

What about the hard black plastic gasket that fits under the inside lip of the outer metal case?

Nicole - 02/03/19

It sits between the outer metal case & the black plastic flat ring. Please describe how to reassemble that part.

Nicole - 02/03/19

Schritt 6

Remove one 11.59mm T10 screw.
Let the green wire fall, or place somewhere so it doesn't get in the way.
There will be a small metal retainer and washer, put them aside for reassembly.

T8 Torx screw.

Canbo - 11/10/20

My unit has a plastic case and a two-prong plug, so there is no ground wire.

michael.g.safonov -

Schritt 7

Remove two 11.59mm T10 screws.

Schritt 8

Remove the time/on switch by pulling upwards.

Schritt 9

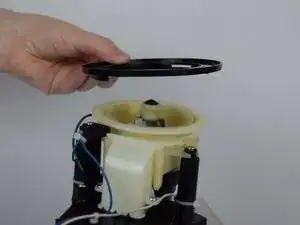

Grab the edge of the plastic black ring that sits on top of the device and gently pull up to release.

An important step BEFORE you remove the ring is to mark on the white shoot with a sharpie where the groove in the ring ends. Then when you reassemble you can line it up correctly. Otherwise the bin won't go back on,

Gregg - 22/09/20

Schritt 10

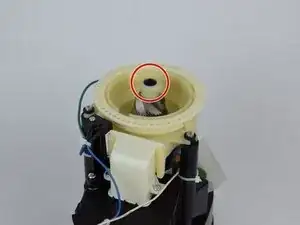

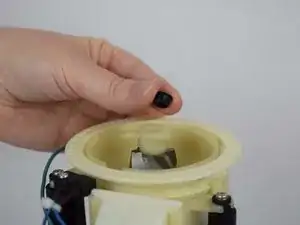

Remove the black rubber knob atop the bottom burr by gently pulling up.

Schritt 11

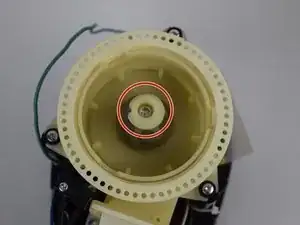

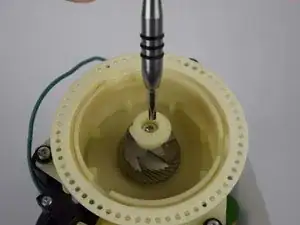

Partially remove one 47.20mm T20 screw.
The screw does not need to come out completely, it just needs to be loose enough pull the burr out of the device.

Schritt 12

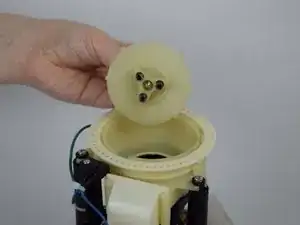

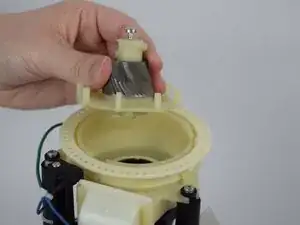

Remove the bottom burr piece by pulling upwards.
There will be 3 springs and 3 metal balls under the springs, located underneath the burr. Put them aside for reassembly.

Schritt 13

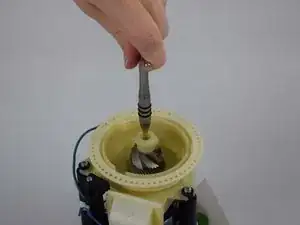

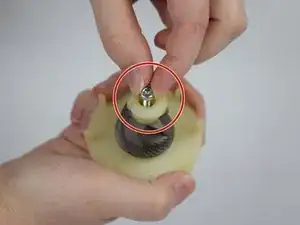

Remove the loosened screw by pulling it upwards.

Schritt 14

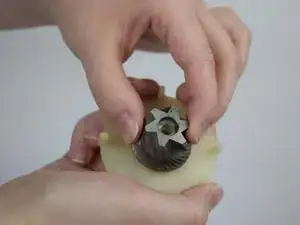

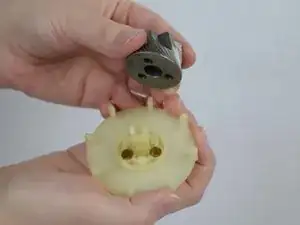

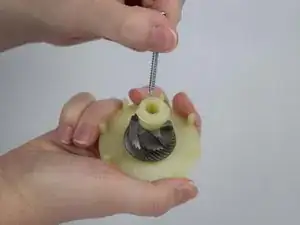

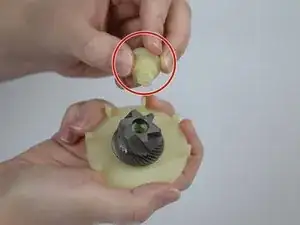

Grip the plastic piece at the top of the conical burr and pull upwards to remove.
Grip the metal burr, and pull upwards to slide it off the plastic base.

Schritt 15

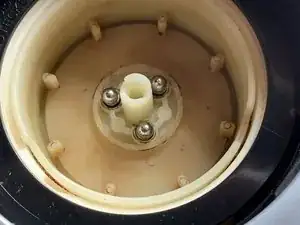

This is the correct position of bearings and springs when the screw and bottom burr are removed.

I added this image because nowhere in the guide does it show the arrangement of bearings and springs in relation to each other and the bottom burr.

jprokos - 16/05/20

I have reassembled shown as above, but now the grinder only puts out a fine ground coffee at any setting.

Whats up?

Scott W. Nelson - 03/01/21

Fixed this by setting grinder to extra fine with beans in, grinding, then slowly working the grinder back to coarse.

Josh Kociemba - 18/01/21

Essentially, the grid is more fine when the screw is not in all the way. The grid is more coarse when it is fully tightened. If you have super fine grind all of the sudden, you may think you have the screw in all they way but in fact, the plastic parts are most likely not aligned. The plastic pieces on the between the bottom bur grinder hae slots and need to be aligned properly. (the bottom metal bur grinder is the smaller one - in the left hand of the person in picture 14) ) IF the plastics parts are not mated correctly, the grind will be very fine, and slow. When I aligned the slots properly, I was good to go. In step 15, you can see the slots on the bottom plastic piece. The top plastic piece is where the screw goes. It’s tough to align, but you’ll know you got it when you grind.

Robbie Kalin -

Abschluss

To reassemble your device, follow these instructions in reverse order.
