Capresso Perfectea 260 Control System Replacement

Geschrieben von: Kenji Anzai
  • Kommentare: 0
Capresso Perfectea 260 Control System Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 - 45 Minuten

Einleitung

If you need to repair any of the wires or computer chips, use this guide to remove these components for repair and replacement.

  1. PKHiHYWCuZXPWHvv

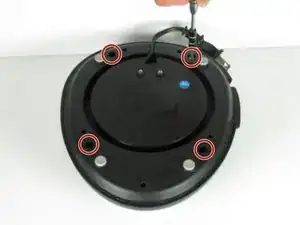

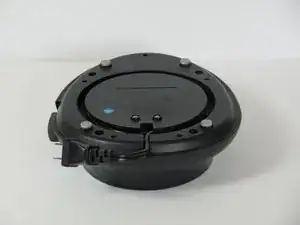

    • First, take the base of the device and flip it over.

  2. 6WfGwBDnw5WG1mjI
    6WfGwBDnw5WG1mjI
    ejWvIyXDUHICcrPS

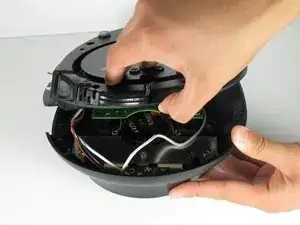

    • Remove the four 12 mm Phillips #2 screws surrounding the base then lift the bottom half of the base to expose the circuit boards inside the device.

  3. qZtfgrZpyONeCJDA

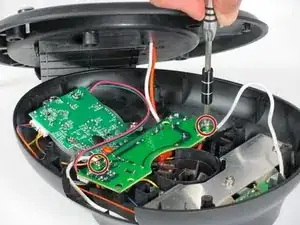

    • Remove the two 7.5 mm Phillips #2 screws holding in the motherboard

  4. WmhNDW1JElrGRm3c

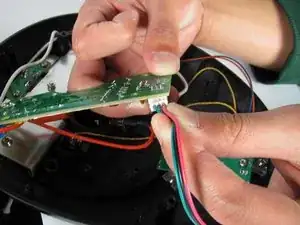

    • Unplug the wire going into the side of the motherboard

  5. 1RkiXHwF4B2mjXwV
    1RkiXHwF4B2mjXwV
    XgSUc4IAMOZ2Coyv

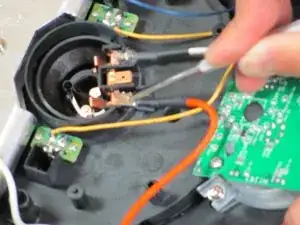

    • Use the metal spudger to cut open the rubber covering the latch where it clamps onto the copper tab.

    • Unplug wire at heating element by first using the metal spudger to push the latch in and then pushing it out.

    • Be careful when unplugging the wire as if it is done too forcefully it can damage the connection and make it difficult to connect a new motherboard

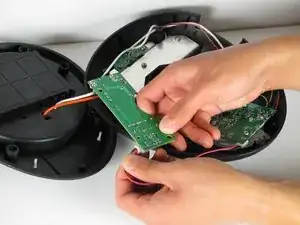

  6. s6geYQX5PMbNIDYp

    • Lift the motherboard out of the device

  7. whqsjuGo5DM3UAhE
    whqsjuGo5DM3UAhE
    yUdMJaTZsQWA3JaP

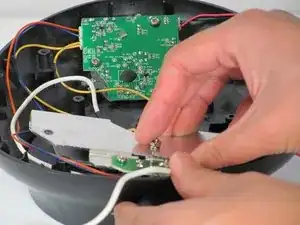

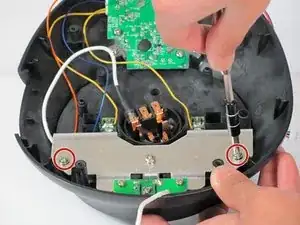

    • Remove the two 7.5mm Phillips #2 screws from the metal frame.

    • Remove the frame from the assembly.

  8. JqP21xv4ogTecClt
    JqP21xv4ogTecClt
    pZiNZ2A1JYJwuDgd
    IXrMsFdQgt1Ik12x

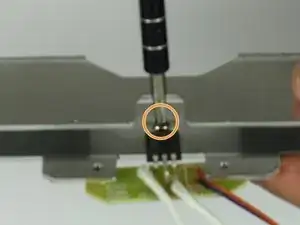

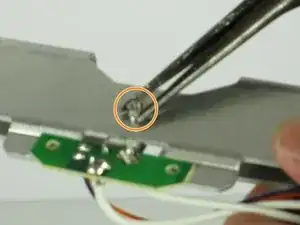

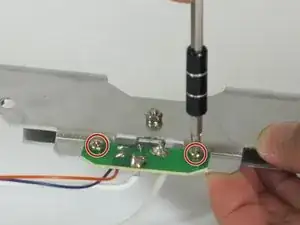

    • Remove the two 6mm fine thread Phillips #2 screws attaching the small computer chip to the metal frame.

    • Flip over and remove the 7.5 mm fine thread Phillips #2 screw from the back while holding the 5mm nut on the front securely.

  9. RBmIw1bZwhi6MEKC
    RBmIw1bZwhi6MEKC
    odMyT32UHxZpDtCO
    uruShwDm4YUTWjip

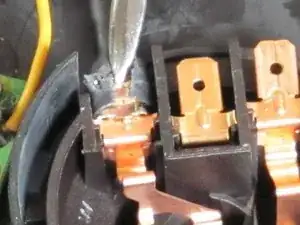

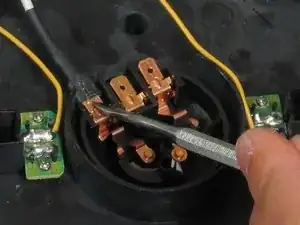

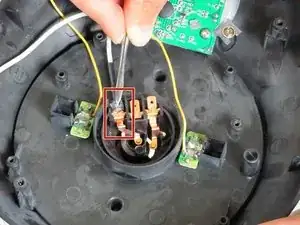

    • Find the cable that attaches the small computer chip to the heating element connections.

    • Use the spudger to cut open the rubber coating on the latch where it clamps onto the copper tab.

    • Insert the metal spudger into the rectangular hole on the latch and push toward the tab (away from the wire) to unbend the tab.

    • Push the latch off the tab with the spudger.

    • The tab will come loose suddenly. Make sure that you apply force in a controlled manner to avoid injuring yourself or damaging the other components.

  10. YTw4M21OZdDGOskT
    YTw4M21OZdDGOskT
    XjUt2LychGL1GMH5
    tdjNSlLOBPqEbpyC

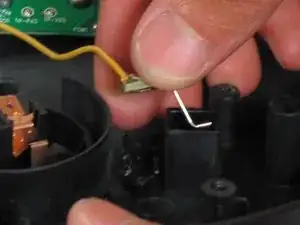

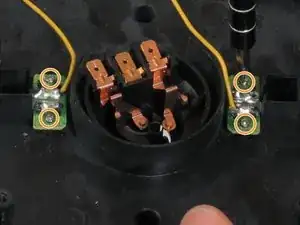

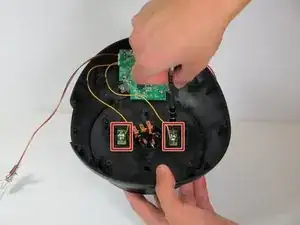

    • Identify the two computer chips that connect the two yellow wires to the temperature controls.

    • Remove the four 5 mm Phillips #1 screws.

    • Remove the two computer chips from their places.

    • The two computer chips are held in place by plastic interference pins. Wiggle the board free of these pins to remove.

  11. VhDCNQDfEUtsBuMd
    VhDCNQDfEUtsBuMd
    qLNQHnCHU26DWKO5
    CSEbTKTEVjmHVNeI

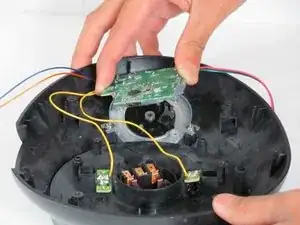

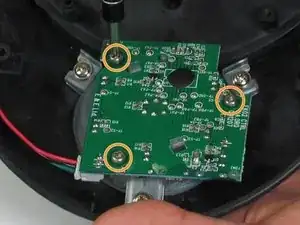

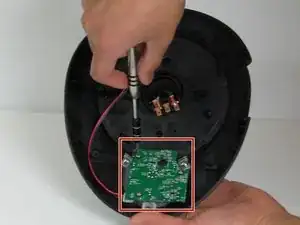

    • Find the computer chip over the dial.

    • Remove the three 6mm Phillips #2 screws.

    • Remove the computer chip.

    • Remember the orientation of the computer chip on the dial and which peg goes into which hole.

    • Keep the plastic frame on the bottom of the chip attached.

  12. drIMMGdOIfwvNlkG

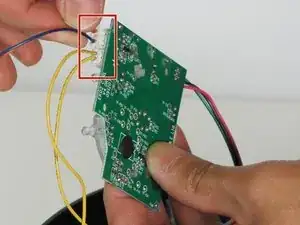

    • Unplug the four cables on the left side of the chip.

    • Remember which cable goes to which plug.

Abschluss

To reassemble your device, follow these instructions in reverse order.
