Carburetor Adjustment

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

Follow this guide to adjust the carburetor on a 2019 Echo Power Pruner model PPT-2620.

This procedure requires running the motor for several minutes. Only run the motor outside or in a large, well-ventilated room. Do not run the motor in an enclosed space.

Wear ear protection while the motor is running.

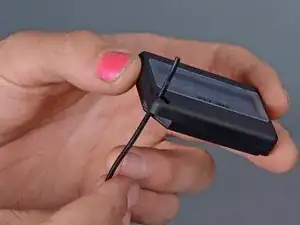

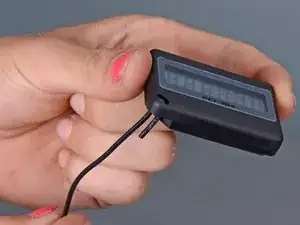

  1. SYqGIscWiYCLq6mG
    SYqGIscWiYCLq6mG
    FUFcFhvAeCtBYcgO

    • Feed the inductive pickup lead wire through one of the two holes in the lower-left corner of the tachometer.

    • Bend the wire around and feed it through the second hole, then pull it tight.

  2. QWMZoxGjLvtA1aUK
    QWMZoxGjLvtA1aUK
    TGwQpUvac5ciWJ16

    • Clamp the inductive pickup lead alligator clip onto the spark plug wire.

    • Make sure the inductive pickup lead wire is not touching anything except the tachometer.

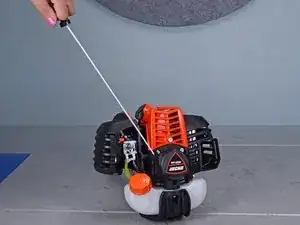

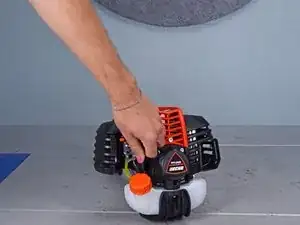

  3. 4auIAGsgVVTXxsNy
    4auIAGsgVVTXxsNy
    mdaO4YwWd3H35Q16

    • Wear ear protection for the remainder of the procedure.

    • Start the motor and let it run for two minutes to ensure it reaches operating temperature.

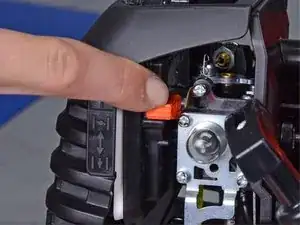

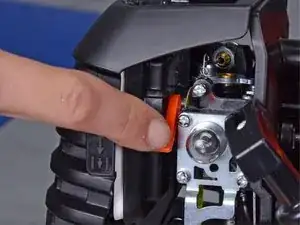

  4. ZJkZaSVCoUnoeIuY
    ZJkZaSVCoUnoeIuY
    iSPF3QttWO3EBx3R
    tVdnGa2lPKPE2Y2y

    • Make sure the choke is fully in the open position.

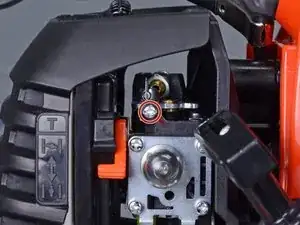

  5. sohvdyW4P4HD5EMV
    sohvdyW4P4HD5EMV
    ColMK5gCtgHfoRYC

    • Use a Phillips screwdriver to adjust the carburetor idle screw until the tachometer reads as close to 3100 RPM as possible:

    • Turn the idle screw clockwise to increase RPM

    • Turn the idle screw counterclockwise to decrease RPM

    • Once the idle has been set, shut off the motor and disconnect the tachometer.

Abschluss

The procedure is complete, no further action is required.
