Einleitung

If your small gas engine is running sluggishly or smoking, it's possible that the carburetor is clogged or dirty. This guide will provide instructions on how to access and clean the carburetor.

  1. tLQxdJ2KTUZHNK1g
    tLQxdJ2KTUZHNK1g
    HlPAvfW2PEJkWbP1
    a2C5AmBjVwLK3efT

    • Before starting, ensure that the engine is not running and is not hot.

    • Pull the tab until the filter cover opens. Remove the filter cover.

    • Note that the bottom of the cover is hinged.

  2. 2WOvDpFtwRaC6UGa

    • Remove the air filter.

    • The air filter will be either an oily sponge, or an accordion-folded fabric.

    • Note that the air filter is saturated with oil. Wear gloves and use paper towels to avoid creating a mess.

  3. ERY2WKyO2nC6PGHC
    ERY2WKyO2nC6PGHC
    FlMfbyDJOx1PJXKD
    mGOPtFfJk5ZCJZXe

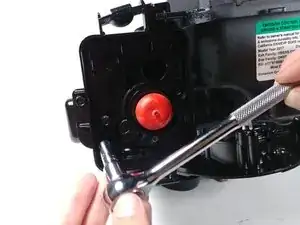

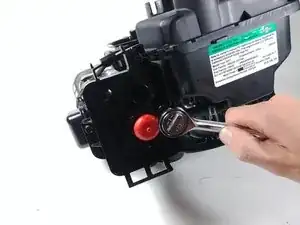

    • Locate the four bolts holding the air filter housing to the engine. Remove these bolts using the ratchet driver and the appropriately sized socket.

    • Remove the 1/4" bolts.

    • Remove the 5/16" bolts.

  4. eWq1BRMXfcyqpMgm
    eWq1BRMXfcyqpMgm
    SJONdaVu2EtqYAW3

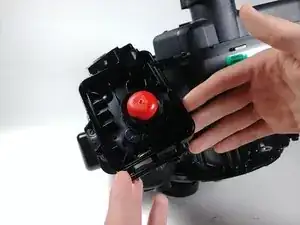

    • Lift away the air filter housing.

    • Note that the housing is still attached to the engine via a bendable plastic rod.

  5. XqPGC4Fd4UtB3xaD

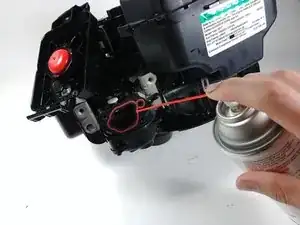

    • Spray carburetor cleaner into the open carburetor.

    • You may want to wear gloves for this step, as carburetor cleaner is harmful if applied to the skin.

Abschluss

To reassemble your device, follow these instructions in reverse order.
