Cardinal Health Vela Ventilator Left Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

The left panel is structurally significant to the ventilator but is not fixed to any other components. Therefore it is necessary to remove the left panel for a vast majority of service to be done on internal components of the ventilator. You will need a Phillips screwdriver to complete this guide. This part is strictly structural, however it needs to be removed to access many of the parts inside.

  1. gdk4fthOhAGOgmLD

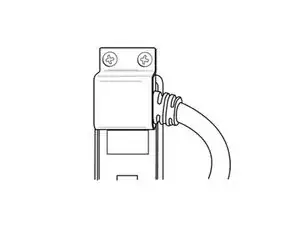

    • Use a screwdriver to remove the two Phillips pan-head screws at the top of the plug guard.

    • Remove the plug guard and unplug the ventilator.

  3. QmIwYhDyAWHPcZga

    • Remove the four Phillips #0 screws on the back side of the ventilator.

  4. ZWnwpOxGJTYSHZOC

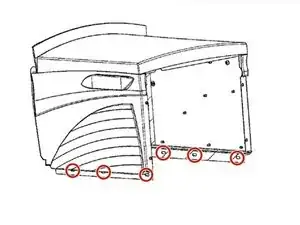

    • Remove all six small side panel screws along the bottom of each side of the top cover with the same screwdriver.

    • Slide the top cover towards the back side of the ventilator to remove it.

  6. YmP3TXlvcOioTPBm

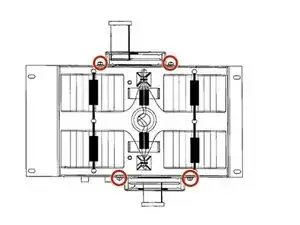

    • Use your Phillips screwdriver to unscrew the 4 Phillips pan head screws positioned on each side of the battery tray.

    • Lift the battery tray out of the ventilator.

    • Caution: The wires connecting the batteries to the ventilator will still be connected so lift the battery tray carefully.

  8. 5icJmb1ohxsY5AQP

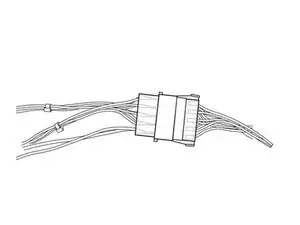

    • Disconnect the batteries from the ventilator by pulling apart the Battery Connector.

    • Remove the two Phillips countersink at the rear of the panel.

    • Remove the Phillips countersink in the upper front of the panel.

    • The panel is now free and can be lifted from the device.

    • To install the left panel follow these steps in reverse order.

Abschluss

To reassemble your device, follow these instructions in reverse order.
