Caribou Coffee CC-EKV8SS7 Power Cord Replacement

Remove the five (10mm) Y screws from the bottom of the base. Three are in a triangle around the center and two are on the corners of the flat edge.

Now you will need to 'unlock' the top and bottom of the base from each other. On the flat edge, there is a rectangle inset with one side cut out. Insert a metal spudger about 1/2'' in to the opening to toggle open an interior tab.

With the metal tool still inserted, use an opening tool between the black and silver sides to pry the base open.

Once you have the halves opened at least 1/4'', remove the metal key and rotate the base a quarter turn in any direction.

Continue using the spudger to pry open the base at each quarter turn until the sides separate easily.

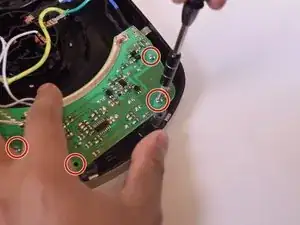

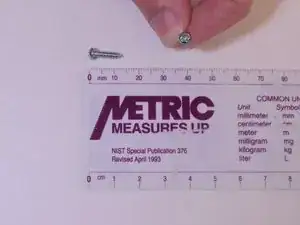

Begin detaching the circuit board by removing four rounded top (12mm) Philips head screws (one from each corner).

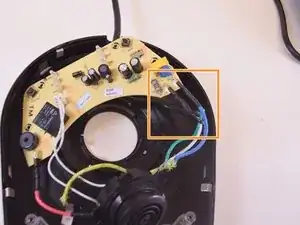

Find the blue and black wires that connect to the circuit board from the power cord. Using moderate force, pull them away from their silver tabs on the circuit board.

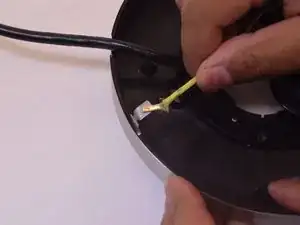

Detach the power cord's grounding wire (yellow with green stripes) from the edge. First unbend the silver strip, then pull upwards with a small jiggle.

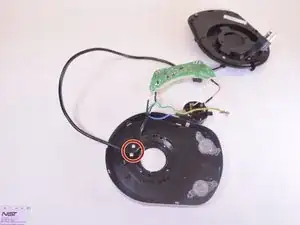

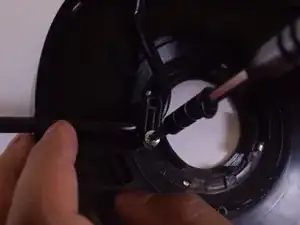

Remove the two rounded top (12mm) Phillips Head screws from the 1'' bar holding down the power cord.

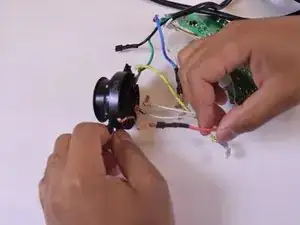

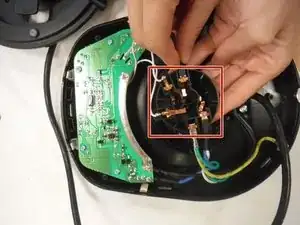

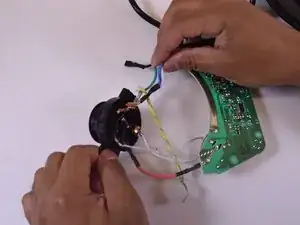

Disconnect five metal connectors attached to the center circle - three wires from the circuit board, and two wires from the power cord.

From the circuit board, there are two white wires and one red wire to be disconnected.

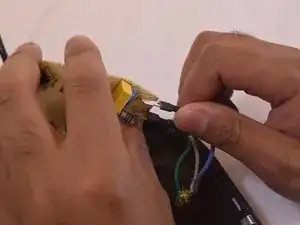

From the power cord, there is a green wire, as well as two wires (one blue, one white) connected with black electrical tape near the metal.

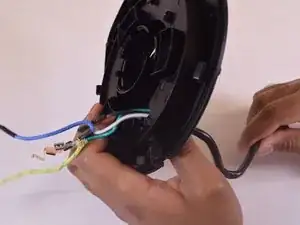

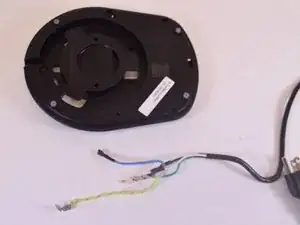

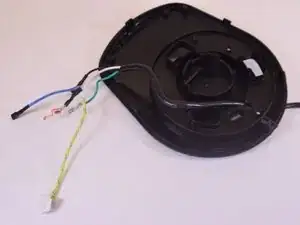

At this point, as long as all the color-coded wires at the end are straightened, the power cord can be pulled through the black base bottom.

Discard the old power cord and insert the new power cord by following these instructions in reverse.
