A weak or damaged motor might be the reason your quadrocopter is unable to fly properly. This guide will show you how to replace any of the four motors

  1. gBw3WEKmOjTRcLhJ
    • Flip the quadrocopter over so that the underside of the device is facing up.

    • Unplug the battery cable from the socket on the quadrocopter.

  2. UDgMes1tfNR2KDHC
    • Push the battery upward with your thumbs to loosen it from the tight slot until your thumbs can not reach the bottom of the battery anymore.

  3. 1MAAnDhL3oK5oJPA
    • Pull the battery away from the slot to remove it.

  4. wQ5cHrjY1pE2kRaY
    • Using the JIS #00 screwdriver, hold the rotor blade still and unscrew the 4.762mm screw in the center of the blade.

  5. HUlJBKKpNTVQh5ox
    • Lift the screw out and set it aside.

    • Lift the rotor blade out.

    • Be sure to place the rotor blades properly for stable flight. With the quadrocopter facing you, the front rotor blades should be red with blade A on the right and B on the left. The rear rotor blades should be blue with blade B on the right and A on the left.

  6. dMTUolUYdFdwhZbi
    • With the PH1 screwdriver, unscrew the four 7.1mm screws located underneath the quadrocopter.

    • Pull the base out and set the foam piece aside

  7. LiVWRlo2QIjqDVjb

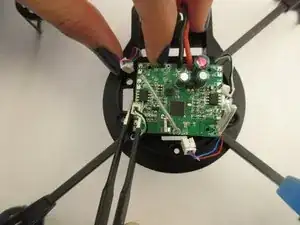

    • From the precision tweezers set, use the round-end tweezers to pull and wiggle the white-head wires from the motherboard.

    • Be sure to pull from the connector. Otherwise you run the risk of slicing through the wires.

  8. RCmeVRwaKiIkyTB4
    RCmeVRwaKiIkyTB4
    R6QugPSVgIomVhcb

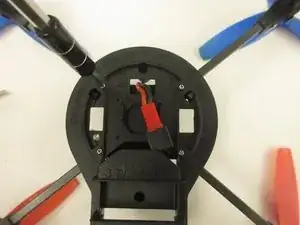

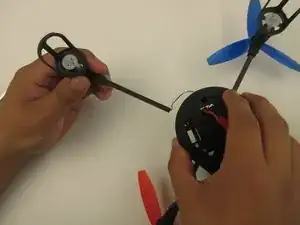

    • Using the PH0 screwdriver, unscrew the 3.2 mm screw on the base.

    • While all four locations are shown, you will only have to remove the screw/s corresponding to the motor/s you are replacing.

    • Pull the rotor leg out from the base

  9. DeOtDXAPPyrVDZCI
    DeOtDXAPPyrVDZCI
    RZ1yKQ5C4vMdJWMp

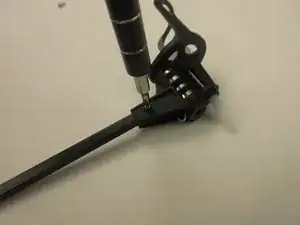

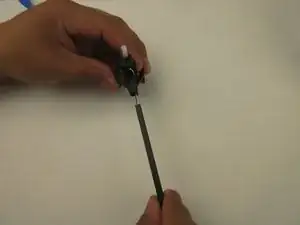

    • Using the PH0 screwdriver, unscrew the 4 mm screw where the leg meets the motor case/ rotor stand.

    • Pull the leg apart from the motor case/ rotor stand

  10. 5AmnOP4II4Voo2s2
    5AmnOP4II4Voo2s2
    BvKsWmXqTxx1elhX

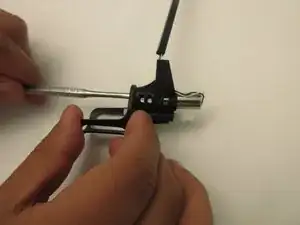

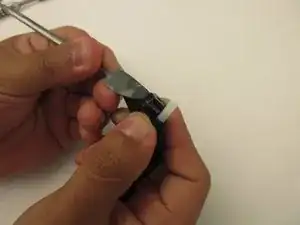

    • Using the metal spudger of your choice, remove the clip at the top of the motor.

    • Use the thinner side of the spudger to push the motor through and out of the case.

  11. Rw5dU6gUcUq3ixHt

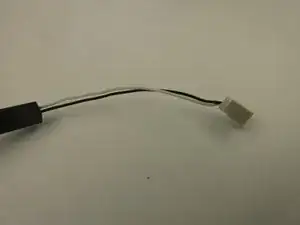

    • Cut the connection head off and pull the wiring out of the leg.

Abschluss

To reassemble your device, follow these instructions in reverse order.
