Carrera Mario Copter Rotor Blade Replacement

Geschrieben von: Marissa Espino
  • Kommentare: 1
Carrera Mario Copter Rotor Blade Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

15 Sekunden

Einleitung

The quadrocopter will not fly correctly if a rotor blade is damaged or installed wrong. This guide will show you how to remove any of the quadrocopter’s four rotor blades.

  1. wQ5cHrjY1pE2kRaY

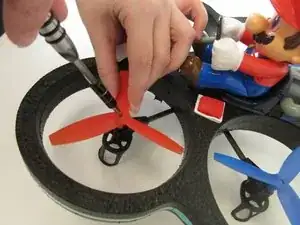

    • Using the JIS #00 screwdriver, hold the rotor blade still and unscrew the 4.762mm screw in the center of the blade.

  2. HUlJBKKpNTVQh5ox

    • Lift the screw out and set it aside.

    • Lift the rotor blade out.

    • Be sure to place the rotor blades properly for stable flight. With the quadrocopter facing you, the front rotor blades should be red with blade A on the right and B on the left. The rear rotor blades should be blue with blade B on the right and A on the left.

Abschluss

To reassemble your device, follow these instructions in reverse order.
