Carrier 58MSA060-08 Furnace Filter Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

Furnaces are one of the most important appliances in a household but they are often neglected. As a result, when they do breakdown, homeowners face expensive repair or replacement costs.

The simple maintenance task of changing your furnace’s filter will provide many benefits such as:

  • Extending the furnace’s lifespan.
  • Increasing the furnace’s efficiency.
  • Improving the air quality within your home.

This guide will teach you how to replace the furnace filter in a Carrier 58MSA060-08 furnace.

Ersatzteile

  1. 5a6PkDLRGKpK322V
    5a6PkDLRGKpK322V
    wmoasOcu2gV14Pq1

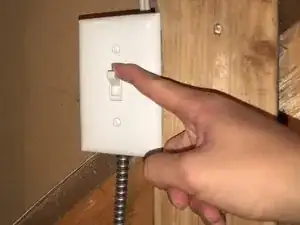

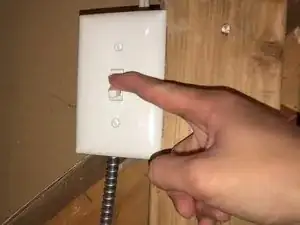

    • Locate the furnace disconnect switch.

    • Flip the switch from the "ON" position to the "OFF" position.

  2. Kw4jW5v1WiRUIBDs

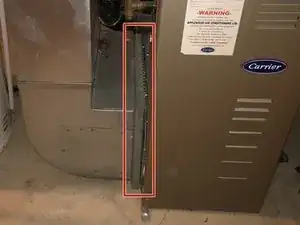

    • The filter is located in between the return duct and the main furnace unit.

  3. aVDihOGXDqvbUrDp
    aVDihOGXDqvbUrDp
    fMdpdDPrs5XXpGhW
    KDNiXUUo2ZDZtXNy

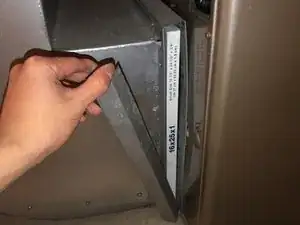

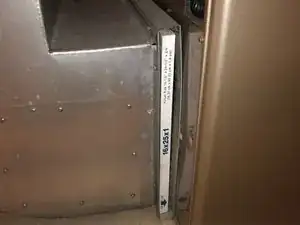

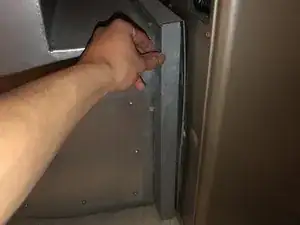

    • Pull the filter cover off of the duct to remove it and expose the filter.

  4. 2uI5G3ODhTW1rCjx
    2uI5G3ODhTW1rCjx
    6UGmdsEhZJfkftOE

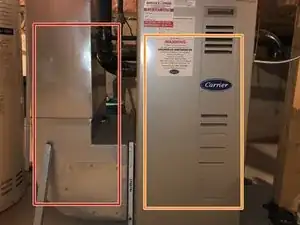

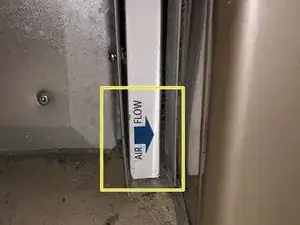

    • Examine your furnace to determine the air flow direction.

    • The Return Duct

    • The Furnace Unit

    • The air will always flow from the return duct towards the furnace unit.

    • Your old filter may also have an arrow indicator on the side.

    • The arrow's direction will indicate the air flow direction.

  5. cDeUbCEfQQWHUBoE
    cDeUbCEfQQWHUBoE
    eQUADYbEUooFfEF6
    B2eXbsSwiceAlCBF

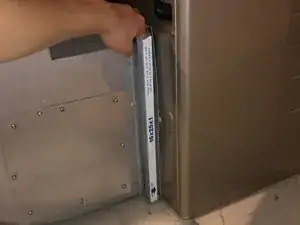

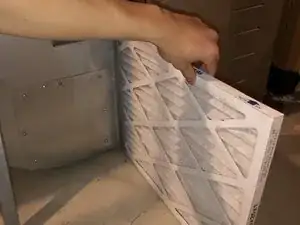

    • Remove the old filter by pulling it out of the duct.

  6. eTLbWUIFQOgXwvkM
    eTLbWUIFQOgXwvkM
    pGhYF2CTHKnas2t5
    JYuTQx3J3enKqpdK

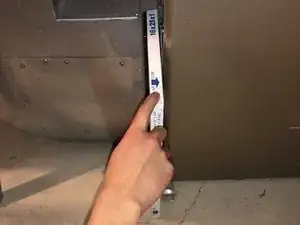

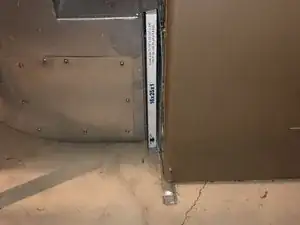

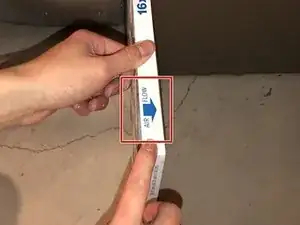

    • Insert the new filter.

    • Pay attention to which direction the new filter should face before inserting it; make it is correct.

  7. vruJYVJCbFsu6xVR
    vruJYVJCbFsu6xVR
    XMIGsFguPOVsd3KB

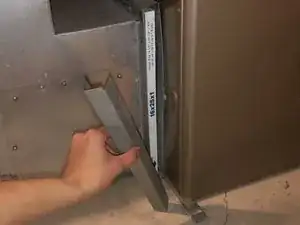

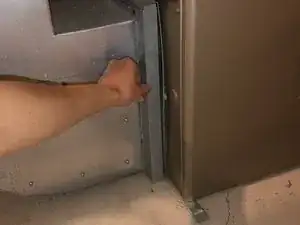

    • Reattach the filter cover.

    • Ensure that the filter cover is securely in place.

  8. pEithL2JNwgT4Liq
    pEithL2JNwgT4Liq
    LBLiElFXKWtmRWno

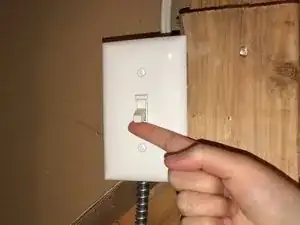

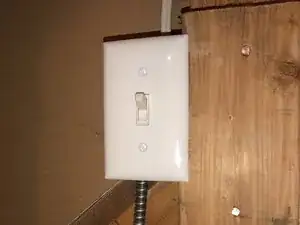

    • Turn on the furnace.

    • Flip the switch from the "OFF" position to the "ON" position.

Abschluss

Once you have completed these steps, your furnace filter replacement will be complete.
