Casdon Dyson Ball Air Cylinder Motor Replacement

Geschrieben von: Seldon Price
  • Kommentare: 2
Casdon Dyson Ball Air Cylinder Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

This replacement guide of the motor involves one phillips PH00 screwdriver and use of a soldering tool. The plastic pieces are fragile, so be careful of using excessive force when taking apart the product.

  1. YlTZGZANJqMMEBBw

    • Remove one 9.2mm (0.36 in) screw using the PH00 screwdriver.

    • Remove the battery cover by pulling it away from the vacuum once the 9.2mm (0.36 in) screw is removed.

  2. AxajdNe36xqhMsJ2

    • Remove batteries from the vacuum by pulling them out and away from the vacuum.

    It take 4 C batteries. Hope this helps!

    Ladii Lee -

  3. mZTXMJntAY2h2XQP

    • Remove all seven 9.2mm (0.32 in) screws on the back of the vacuum.

  4. dPxiEmxjDfZTi3RC

    • Remove the front side covers by pulling them away from the vacuum.

  5. X2ALJs44DeFCPPhl

    • Separate the battery compartment from the ball and bead cylinder by sliding the vacuum ball away from the battery compartment.

  6. RqiUXGMC6VKAHLq6

    • Separate the bead cylinder and the fan compartment by pulling the bead cylinder away from the fan compartment.

    There is a clip inside the lip on the front side that needs to be overcome. I used a flathead screwdriver through the gap to help lift the corner of the clip.

    Garrett -

  7. YaudiAsOI6jHtDdn

    • Remove beads from the container.

  8. pUenNHqXjLOQsRiW

    • Remove four 9.2mm (0.32 in) screws on bottom of air cylinder motor mount using the PH00 screwdriver.

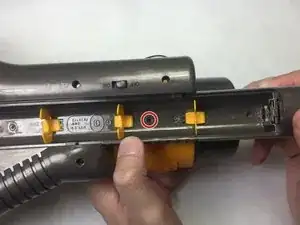

  9. BhRqgmjvRWWDOSfy

    • Remove one 11.5mm (0.45 in) screw in battery compartment using the PH00 screwdriver.

  10. na2KOSXDIqEwLRsJ

    • Remove the red fan from the motor by pulling the red fan away from the bead cylinder motor compartment.

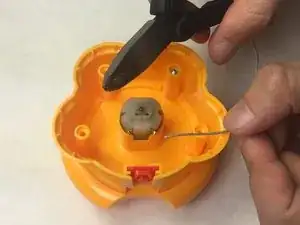

  11. JDvhOHMAA1uHOLfi

    • Cut wires connected to faulty motor using a set of wire cutters.

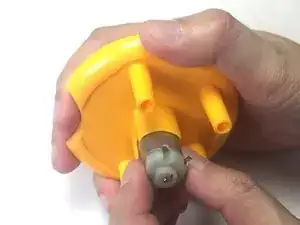

  12. VTH6Q6Mk6RIZLZpH
    VTH6Q6Mk6RIZLZpH
    o5g1J3kLr1uSTcFT

    • Remove and replace faulty air cylinder motor.

    • Solder new air cylinder motor's wires to the vacuum's wires which were previously cut.

Abschluss

To reassemble your device, follow these instructions in reverse order.
