Casdon Dyson Ball Ball Motor Replacement

Geschrieben von: Seldon Price
  • Kommentare: 3
Casdon Dyson Ball Ball Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

Using a PH00 screwdriver, wire cutters and a soldering station, this guide will show the steps necessary to replace the ball motor.

  1. YlTZGZANJqMMEBBw

    • Remove one 9.2mm (0.36 in) screw using the PH00 screwdriver.

    • Remove the battery cover by pulling it away from the vacuum once the 9.2mm (0.36 in) screw is removed.

  2. AxajdNe36xqhMsJ2

    • Remove batteries from the vacuum by pulling them out and away from the vacuum.

    It take 4 C batteries. Hope this helps!

    Ladii Lee -

  3. mZTXMJntAY2h2XQP

    • Remove all seven 9.2mm (0.32 in) screws on the back of the vacuum.

  4. dPxiEmxjDfZTi3RC

    • Remove the front side covers by pulling them away from the vacuum.

  5. X2ALJs44DeFCPPhl

    • Separate the battery compartment from the ball and bead cylinder by sliding the vacuum ball away from the battery compartment.

  6. RqiUXGMC6VKAHLq6

    • Separate the bead cylinder and the fan compartment by pulling the bead cylinder away from the fan compartment.

    There is a clip inside the lip on the front side that needs to be overcome. I used a flathead screwdriver through the gap to help lift the corner of the clip.

    Garrett -

  7. YaudiAsOI6jHtDdn

    • Remove beads from the container.

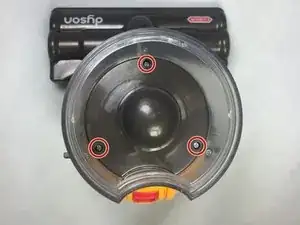

  8. FO4PBcBlX5AgFQhJ

    • Remove the three 11.5mm (0.45 in) screws at bottom of bead cylinder container using the PH00 screwdriver.

  9. X6UUwLSoFVB5q2op

    • Remove the bead cylinder and motor mount from the vacuum ball.

  10. GnTcR6RkJKuadiUW

    • Separate the motor mount from the bead cylinder by pulling the motor mount away from the bead cylinder.

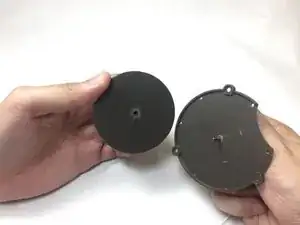

  11. CakgATrkDFMklNoN

    • Separate the fan from the motor shaft by pulling the fan away from the motor.

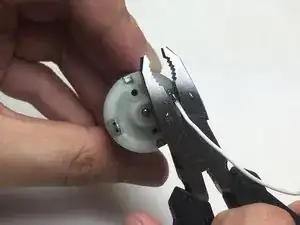

  12. JBOiOJZrIc5pQGp5

    • Cut the wires to the faulty motor using wire cutters.

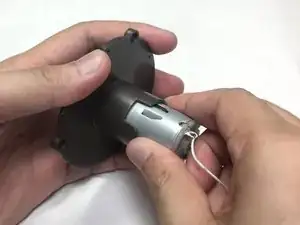

  13. ClGU1VEu2rPmBQSv

    • Remove and replace the faulty ball motor with a new one.

    • Solder the new ball motor's wires to the vacuum's wires which were previously cut.

Abschluss

To reassemble your device, follow these instructions in reverse order.
