Casdon Dyson Ball Disassembly

Geschrieben von: Seldon Price
  • Kommentare: 4
Casdon Dyson Ball Disassembly

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Using a PH00 screwdriver, this guide will demonstrate how to disassemble the Casdon Dyson Ball. This disassembly will show how to separate the battery compartment from the vacuum ball.

  1. YlTZGZANJqMMEBBw

    • Remove one 9.2mm (0.36 in) screw using the PH00 screwdriver.

    • Remove the battery cover by pulling it away from the vacuum once the 9.2mm (0.36 in) screw is removed.

  2. AxajdNe36xqhMsJ2

    • Remove batteries from the vacuum by pulling them out and away from the vacuum.

    It take 4 C batteries. Hope this helps!

    Ladii Lee -

  3. mZTXMJntAY2h2XQP

    • Remove all seven 9.2mm (0.32 in) screws on the back of the vacuum.

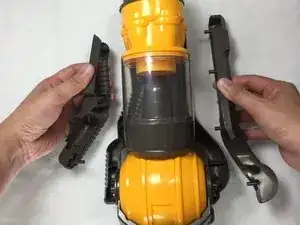

  4. dPxiEmxjDfZTi3RC

    • Remove the front side covers by pulling them away from the vacuum.

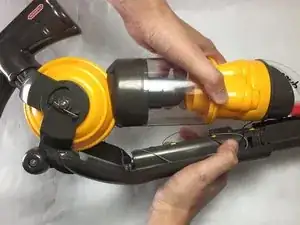

  5. X2ALJs44DeFCPPhl

    • Separate the battery compartment from the ball and bead cylinder by sliding the vacuum ball away from the battery compartment.

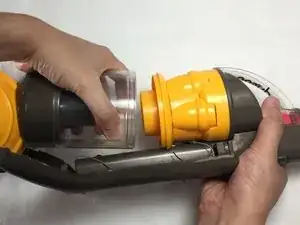

  6. RqiUXGMC6VKAHLq6

    • Separate the bead cylinder and the fan compartment by pulling the bead cylinder away from the fan compartment.

    There is a clip inside the lip on the front side that needs to be overcome. I used a flathead screwdriver through the gap to help lift the corner of the clip.

    Garrett -

  7. YaudiAsOI6jHtDdn

    • Remove beads from the container.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Seldon Price

Mitglied seit: 07/11/17

612 Reputation

2 Kommentare

How do I get the handle out once assembled?

Carie McClendon -

The fan to make the beads jump around no longer works….is there. Separate battery for that?

Kathy -
