Casio Cassiopeia E-125 Key Pad Replacement

Geschrieben von: Ryan Fernandez
  • Kommentare: 0
Casio Cassiopeia E-125 Key Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

25 - 40 Minuten

Einleitung

If you are having issues with the responsiveness or functionality of the key pad on your Casio Cassiopeia E-125, this guide will walk you through the process in 10-15 minutes.

In Step 9, proceed with caution: Potential for device damage. Do not pull apart the wires connecting the outer case.

  1. KLDJQLQhLeCmGAVG

    • Flip the device over to the back side.

  2. 2cXMFEyxRl22yVOF

    • Slide the small switch on the back to "MAIN".

  3. ZeoZdJZCZd3kP1KH

    • Slide the battery cover downwards.

    • Pull off the battery cover.

  4. vvhNYLZSAG6KQmuZ

    • Pull the black tab to remove the battery.

  5. ou5PYWFtIxEvA6RE

    • Use the Phillips #00 screwdriver to remove the two screws near the top of the device.

  6. UjdpAZduafiJ2DYi

    • Use the Phillips #00 screwdriver to remove the two screws located inside the battery compartment.

  7. rtTLvPNQsjJFBdtU

    • Use a spudger or opening tool to separate the two halves of the case.

  8. EJoFPiEXWVtKXJt1

    • Pry the two halves of the case apart with the opening tool.

  9. pnB5HBdXvmKoDxUp

    • Potential for device damage. Do not pull apart the wires connecting the outer case.

    • Lay the two halves of the outer case next to the central components as shown.

  10. xIZfIMPZgDP6vHIg

    • Use the Philips #00 screwdriver to remove the three screws in the corners of the screen.

  11. gdQBjqCQQxJKbc13
    gdQBjqCQQxJKbc13
    vhyTZVaJkDtvArUk

    • Lift the tab on the motherboard and pull out the ribbon cable.

    • After the ribbon cable is detached from the motherboard, the touch screen is completely separated from the device.

  12. 4OOilbFgp4TmKgCp

    • Use the Phillips #00 screwdriver and remove the five screws from the daughterboard.

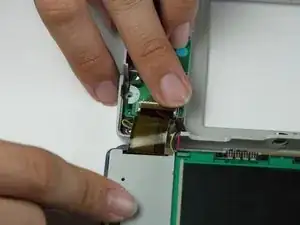

  13. SwcMctHsmfA66SQq

    • Pull the ribbon cable out of its port on the back of the keypad.

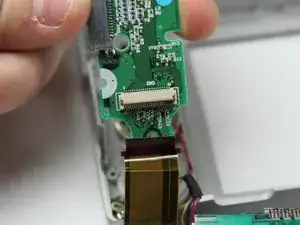

  14. g5pW2G4XrRSndRUf

    • Now, lift the keypad off the front case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
