Casio Cassiopeia E-125 Touch Screen Replacement

Geschrieben von: Ryan Fernandez
  • Kommentare: 0
Casio Cassiopeia E-125 Touch Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

If the touchscreen of your Casio Cassiopeia E-125 has been damaged or broken follow this guide to replace it.

  1. KLDJQLQhLeCmGAVG

    • Flip the device over to the back side.

  2. 2cXMFEyxRl22yVOF

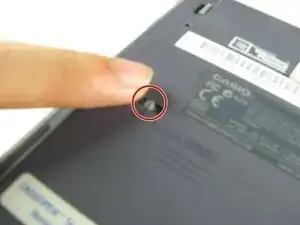

    • Slide the small switch on the back to "MAIN".

  3. ZeoZdJZCZd3kP1KH

    • Slide the battery cover downwards.

    • Pull off the battery cover.

  4. vvhNYLZSAG6KQmuZ

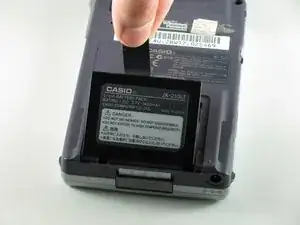

    • Pull the black tab to remove the battery.

  5. ou5PYWFtIxEvA6RE

    • Use the Phillips #00 screwdriver to remove the two screws near the top of the device.

  6. UjdpAZduafiJ2DYi

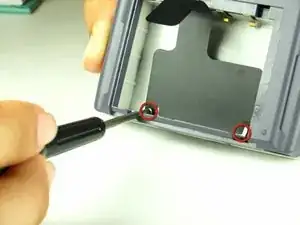

    • Use the Phillips #00 screwdriver to remove the two screws located inside the battery compartment.

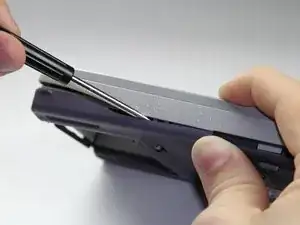

  7. rtTLvPNQsjJFBdtU

    • Use a spudger or opening tool to separate the two halves of the case.

  8. EJoFPiEXWVtKXJt1

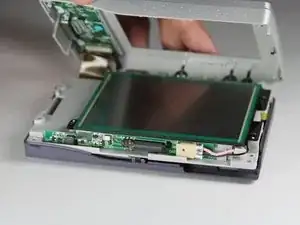

    • Pry the two halves of the case apart with the opening tool.

  9. pnB5HBdXvmKoDxUp

    • Potential for device damage. Do not pull apart the wires connecting the outer case.

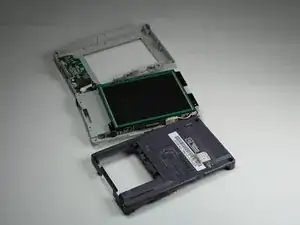

    • Lay the two halves of the outer case next to the central components as shown.

  10. xIZfIMPZgDP6vHIg

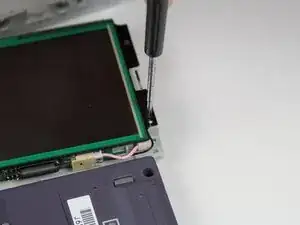

    • Use the Philips #00 screwdriver to remove the three screws in the corners of the screen.

  11. gdQBjqCQQxJKbc13
    gdQBjqCQQxJKbc13
    vhyTZVaJkDtvArUk

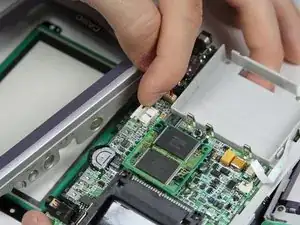

    • Lift the tab on the motherboard and pull out the ribbon cable.

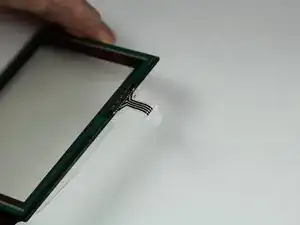

    • After the ribbon cable is detached from the motherboard, the touch screen is completely separated from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
