Casio Exilim EX Z55 LCD Screen Replacement

Geschrieben von: Laura
  • Kommentare: 0
Casio Exilim EX Z55 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

This guide shows how to remove the LCD screen from the Casio Exilim EX Z55 camera. You may have to replace a broken or shattered screen.

  1. bsZFGySBgveiCO1d
    bsZFGySBgveiCO1d
    xFaYMakeVwQ6Owuw
    eyMKmSSrw1iDRVLC

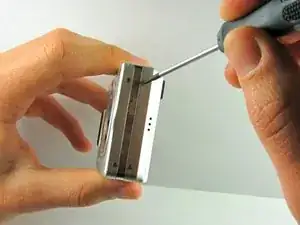

    • Remove eight 1.8 mm screws from the left and right sides of the camera using a Phillips #00 screwdriver

  2. AnfdoP3Ou2r3BYit

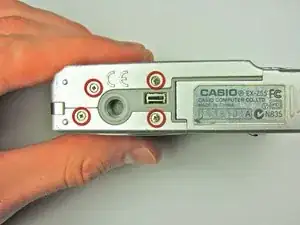

    • Remove the four 3.7 mm screws from the bottom of the camera using a Phillips #00 screwdriver.

  3. A6ijjmPP5FVg31Yb

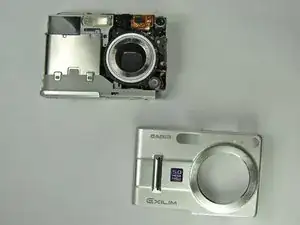

    • Separate the front case from the body of the camera.

  4. DGNKkAH5isFFBawG

    • Separate the back case from the body of the camera.

  5. NkQ64sMVT5ASX41U
    NkQ64sMVT5ASX41U
    OBlUA4DaOUeZHLwf
    a5aDGQJ2OqhLvp2k

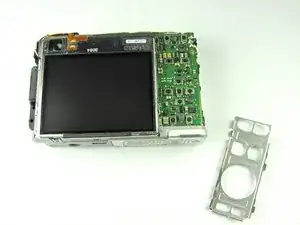

    • Remove the metal grating located to the right of the LCD screen by inserting the plastic opening tool under the grating and pulling up.

  6. g2D6TeTwqOxLUPUU

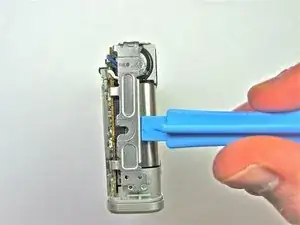

    • Before removing the side metal bracket, first remove the attached strap knob by twisting it off.

    • Then, remove the side metal bracket by inserting the plastic opening tool under the bracket and pulling up.

  7. xsQerFlSkIG3gZbN

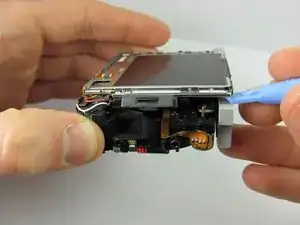

    • Using the plastic opening tool, pry up the LCD screen starting at one of the corners. Insert the tool under one of the corners and lift up.

  8. cvo3pqBZrh1EOgBi
    cvo3pqBZrh1EOgBi
    2DpuAEFqrlwmSwFg

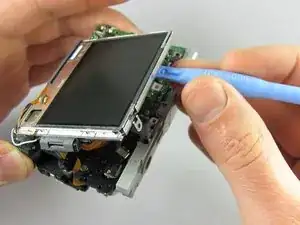

    • Continue to lift the LCD screen all the way up.

    • Be careful not to rip any wires connecting the LCD screen to the top of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
