Einleitung

  1. dOHP2yiGosIHkLSI
    • Remove the four screws on the side of the speaker.

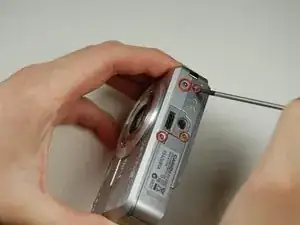

  2. PGD3P1bMd1HiEDTZ
    • Remove the two back screws on the bottom of the camera.

    • Note: Bottom screws are longer than the top ones, so label accordingly for easy reassembly.

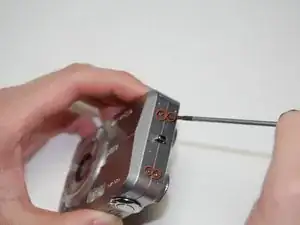

  3. 21aHStBG2jTcCveP
    • Remove the four screws on the side opposite of the speaker.

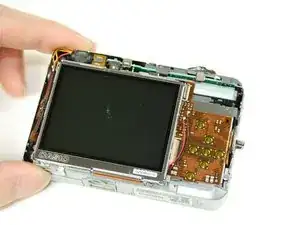

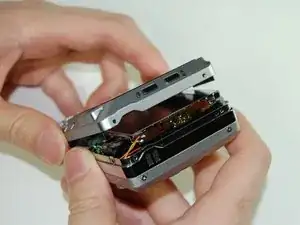

  4. lLokhgxVKwEJaSMQ
    lLokhgxVKwEJaSMQ
    XwSf3eHZAmTlaR1C
    • Once all screws have been removed, gently pry open bottom casing.

    • With tweezers, carefully remove ribbon from LCD screen.

    • Set bottom casing aside.

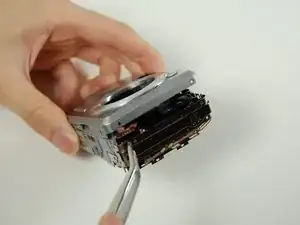

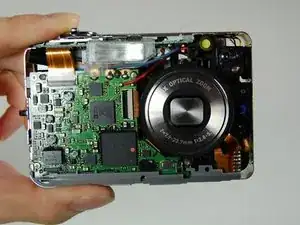

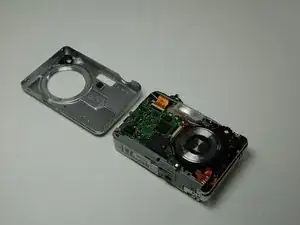

  5. ndFMsRgYjaRorKUc
    ndFMsRgYjaRorKUc
    aQao1GLtZQSWYQnD
    A6NQBv1jsKAYG2HD
    • Gently pry apart the top casing using tweezers.

    • Set the top casing aside.

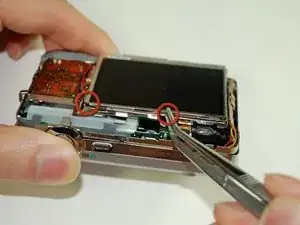

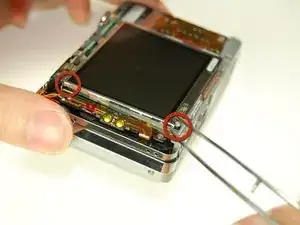

  6. ynLNnilxf3OXZcji
    ynLNnilxf3OXZcji
    exwf1TArvDqYtJvI
    • Use tweezers or prongs to pry the LCD screen off from the opening.

    • Note: The bottom of the LCD screen is attached to the frame by a few pieces of black tape.

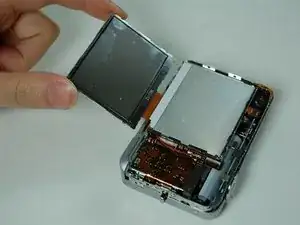

  7. xt1cZyvkeRS4LBKM
    xt1cZyvkeRS4LBKM
    HAZECarTwsnLIZ1o

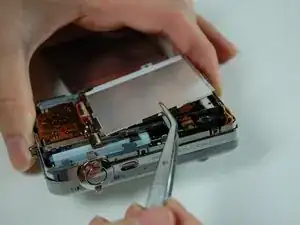

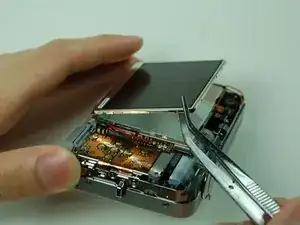

    • Lift up the LCD screen, slowly move it to the other side.

  8. NBG5WrULoO6AOjA5
    NBG5WrULoO6AOjA5
    vGUYE1jBmOYObSqm

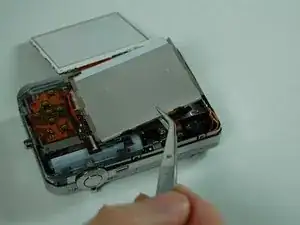

    • Pry off the LCD casing.

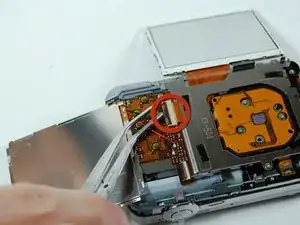

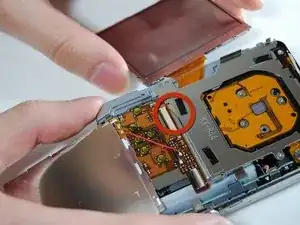

  9. uPULtl6vy6vDNTiK
    uPULtl6vy6vDNTiK
    KKE3ulf1B3aOYZ4y
    yKQ1XLRyMNnXklMu

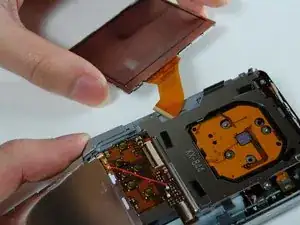

    • Flip open the connector holding the ribbon.

    • Pull out the LCD screen with the ribbon from the camera.

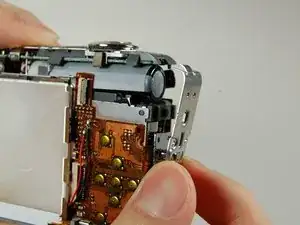

  10. KcsgQpe1BGICOaIv
    KcsgQpe1BGICOaIv
    pfNZAuldbE5VtbmF
    • Remove two screws on the side where the battery is located.

    • Remove the lanyard loop after the screws come off.

    • Slowly pull the side casing so it becomes dislocated from the top of the camera frame.

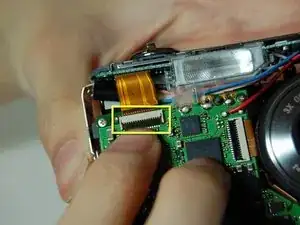

  11. UdWWApOwIGgYeIng
    UdWWApOwIGgYeIng
    xdSXDBxYXXSqdqKH
    • On the front of the camera near the flash flip the connector holding the ribbon.

    • Remove the ribbon from the connector.

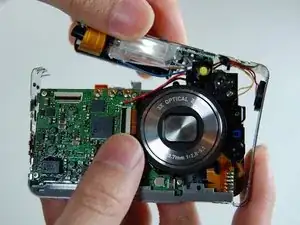

  12. qTJFbANJKGk15tDL
    qTJFbANJKGk15tDL
    s61gbleQKTT1U3AF
    koGuHZLaKSOK4fuO

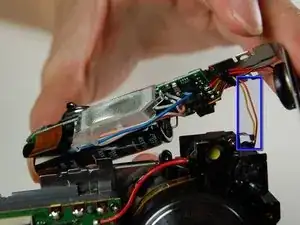

    • Carefully remove the L shaped frame from the camera.

    • At the bottom of the camera the L shaped frame is being held in by two plastic bumps and a metal tab.

    • Pop the frame off the bumps and tabs.

    • Note: There is a yellow and orange wire soldered onto the camera. Be careful not to pull them off.

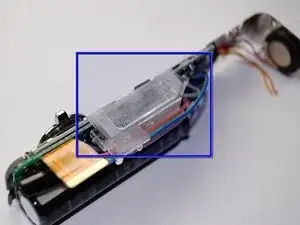

  13. KG31LVVX5apNWPNL
    KG31LVVX5apNWPNL
    GFTF5preZo3Bk5dQ

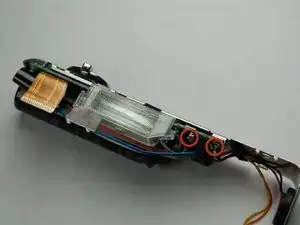

    • This is the flash assembly.

    • It needs to be removed with soldering points circled.

Abschluss

To reassemble your device, follow these instructions in reverse order.
