Casio Exilim EX-Z850 Motherboard Replacement

Geschrieben von: Jennifer Roth

Kommentare: 0

Casio Exilim EX-Z850 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

1 - 4 Stunden

Einleitung

If your Casio Exilim EX-Z850 is no longer working correctly, you most likely need to replace the motherboard.

The motherboard is responsible for keeping your device functioning properly. It connects all of the principle components of the camera. If the motherboard is not working correctly, everything has the possibility of not working right. If your device continues to malfunction, you should replace the motherboard.

Make sure to power down your camera before you begin.

Werkzeuge

Schritt 1

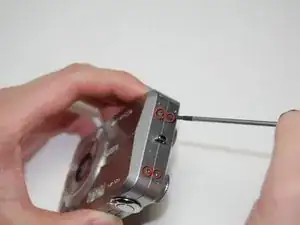

Using the Phillips #00 screwdriver, remove the four screws from the side of the speaker.

Schritt 2

Using the Phillips #00 screwdriver, remove the four long screws from the bottom of the camera.
When reassembling the camera, the longer screws go on the bottom of the camera.

Schritt 3

Using the Phillips #00 screwdriver, remove the four screws from the side opposite of the speaker.

Schritt 4

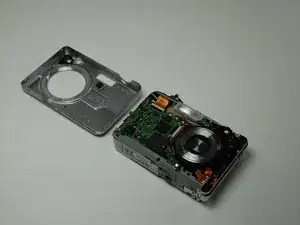

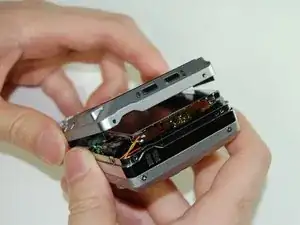

Pry open bottom casing gently after all screws have been removed.
With tweezers, carefully remove the ribbon from the LCD screen.
Set the bottom casing aside.

Schritt 5

Pry apart the top casing using tweezers.
Set the top casing aside.
The bottom left screw on the board is orange and the longest screw.

Schritt 6

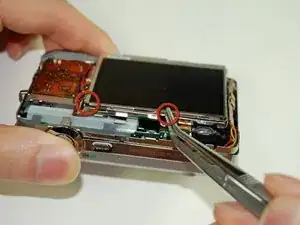

Carefully remove the pieces of black tape on the bottom of the LCD screen that attach it to the frame.
Use tweezers to pry the LCD screen off from the opening.

Schritt 7

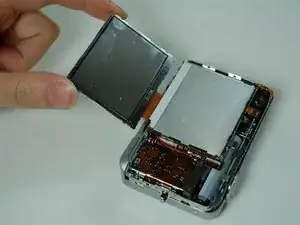

Lift the LCD screen and move it to the other side.

Schritt 8

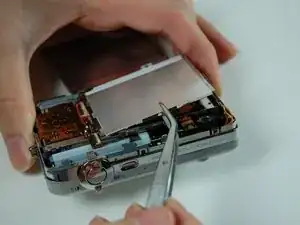

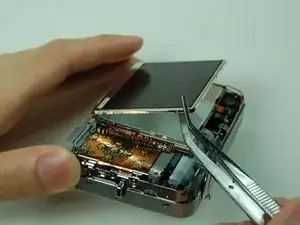

Using a pair of tweezers, pry off the LCD casing.

Schritt 9

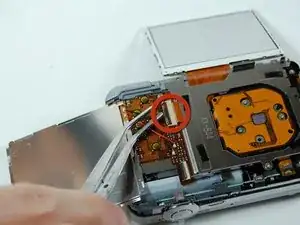

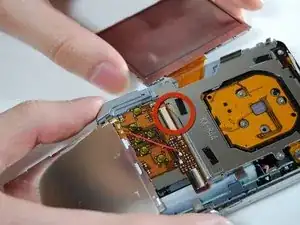

Flip open the connector holding the ribbon.

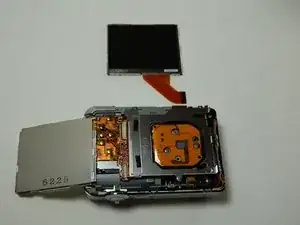

Use the tweezers to carefully pull out the LCD screen with the ribbon from the camera.

Schritt 10

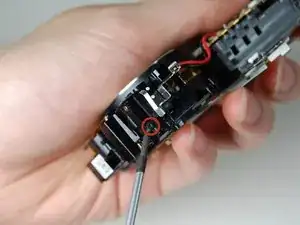

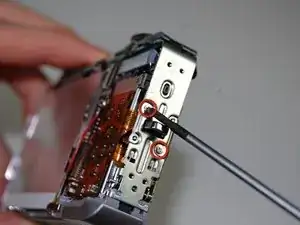

Using the Phillips #00 screwdriver, remove two screws on the side where the battery is located.
Remove the lanyard loop after the screws come off.
Pull the side casing so it becomes dislocated from the top of the camera frame.

Schritt 11

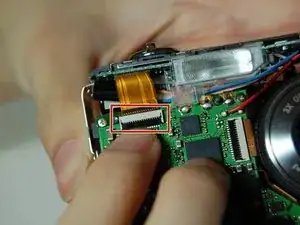

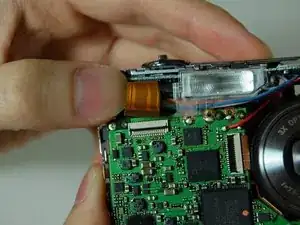

On the front of the camera near the flash, flip the connector holding the ribbon.
Remove the ribbon from the connector.

Schritt 12

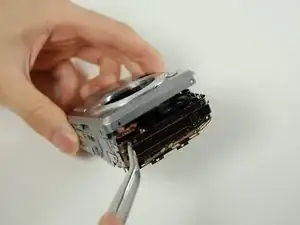

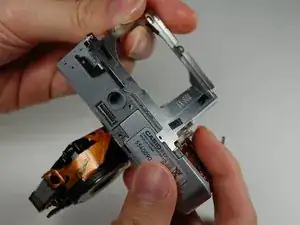

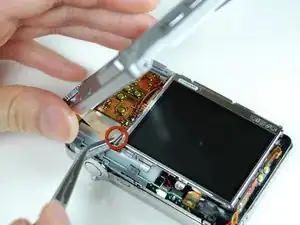

Carefully remove the L-shaped frame from the camera.

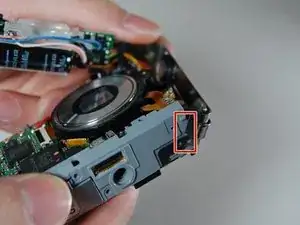

The L shaped frame is being held in by two plastic bumps and a metal tab at the bottom of the camera.
Pop the frame off the bumps and tabs.
Potential for device damage: Be careful not to pull off the yellow and orange wire soldered onto the camera.

Schritt 13

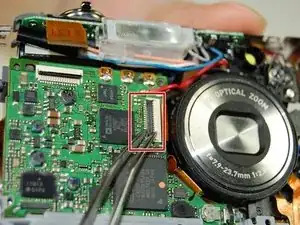

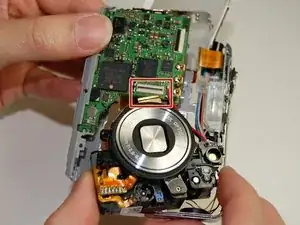

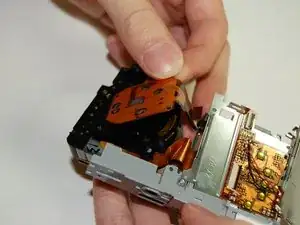

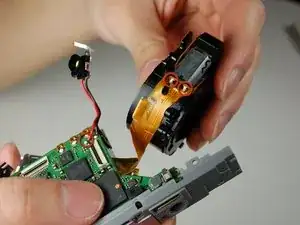

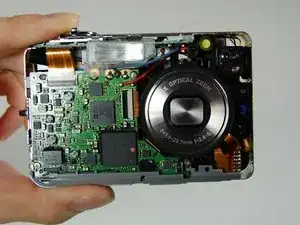

Flip the connector and remove the ribbon cable from the motherboard next to the lens.

Schritt 14

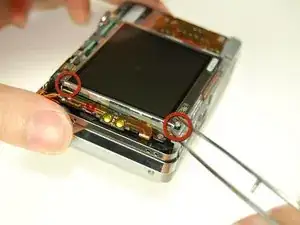

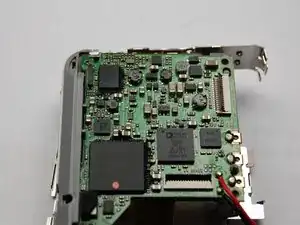

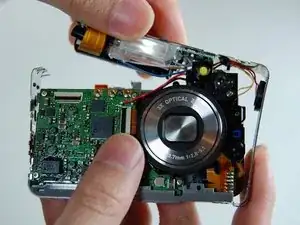

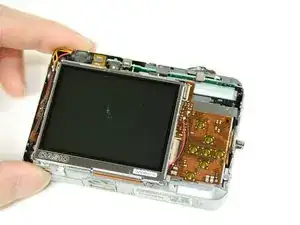

Remove the frame on the back side of the camera where the LCD screen was.

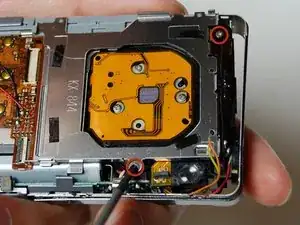

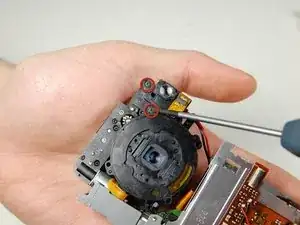

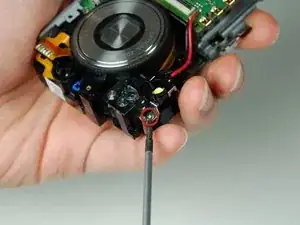

Use the Phillips #00 screwdriver to remove the two screws connecting the frame to the camera.
Slowly pry off the frame from the camera.

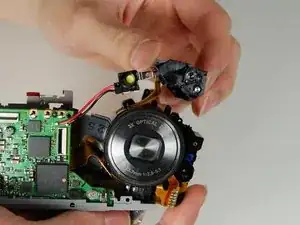

After removing the frame, a plastic piece with two yellow buttons should fall off.
Do not pull the plastic piece off as it is soldered to two wires: a yellow and orange one.
