In the event that your screen is cracked or broken you will need to remove the the motherboard and screen. This guide will show you how.

  1. nroBquKxMtuPR3jH
    • Remove the 6 screws, which are 5mm long, using a PH1 screwdriver.

  2. aE5YAlicYn6EKHJL
    aE5YAlicYn6EKHJL
    TQCQHYugmCHL2UnY
    dWPHXcXG6WlNQhak

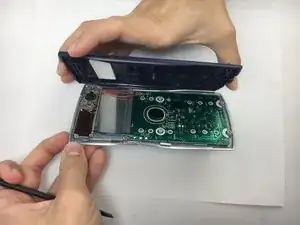

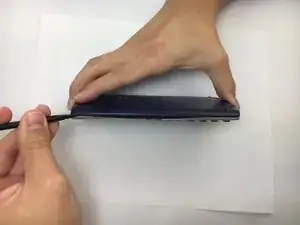

    • Use plastic spudger to separate backplate from the front-plate. Place the flat end of the spudger in the seam between the front and back, near one end of the calculator. Then slide the spudger towards the calculator's center. The two sides will pop free from each other as you go through it with the spudger.

  3. xkMX3UdP4tIQiucL
    xkMX3UdP4tIQiucL
    DaEoIRNsCJAuxoNV

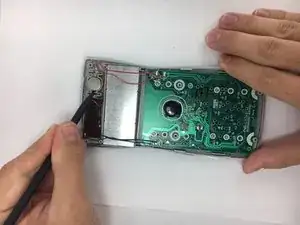

    • Using the pointed end of the nylon spudger, carefully pry an edge of the battery, and lift the battery from its socket.

  4. egFmgOU6Rt2ETxCx
    egFmgOU6Rt2ETxCx
    DUJTHC4d1qfo4DOh

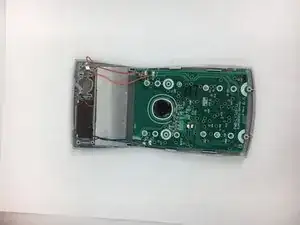

    • Using the plastic spudger, carefully pry the battery terminals from the front plate. If the plastic spudger is too weak for prying out the terminals, use the small metal spudger.By Carefully bending and/or prying the little teeth on the terminals upwards you can easily remove them.

  5. MobMv61aSMW1Ew5F
    MobMv61aSMW1Ew5F
    CI4wHBYAxMBqCMHh
    FPVaRdDxeQMYmghV

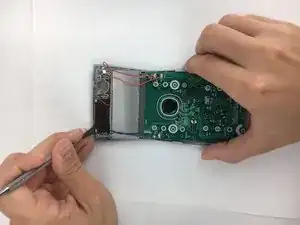

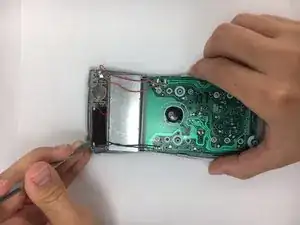

    • Using the small metal spudger. Carefully pry around the edge of the solar panel until it becomes loose. Then simply pull it from its socket using your hands.

  6. WMaDC32FmoqLjrCc
    WMaDC32FmoqLjrCc
    lPe1laXVLbfYObN5

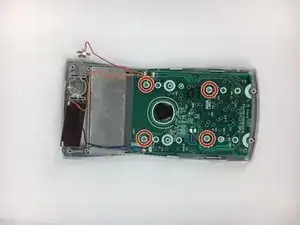

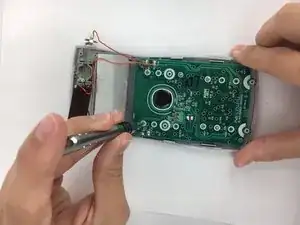

    • Using a PH0 phillips screwdriver, unscrew the four, 4mm, pan head screws from the motherboard.

  7. OBqMpUaR5IW2vM1m
    OBqMpUaR5IW2vM1m
    XVNQsUEpuYOpk5w6
    4RNFQE4m6gFHimRQ

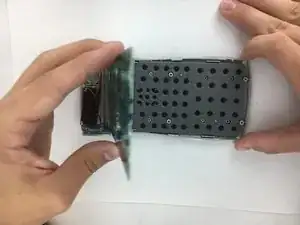

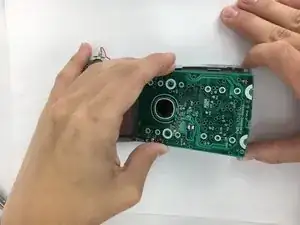

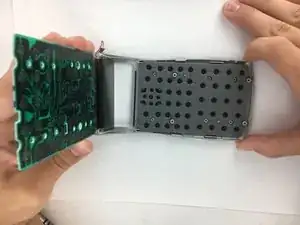

    • Carefully lift the motherboard, screen, solar panel, and battery terminal combination from the front plate. Start from the motherboard and lift at an angle toward the solar panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
