Casio G'zOne Commando Verizon MIL-SPEC Motherboard Replacement

Geschrieben von: Zack Almeida
  • Kommentare: 0
Casio G'zOne Commando Verizon MIL-SPEC Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

In this guide, we will be completely tearing the phone down to remove the whole motherboard and replace it with a new one.

  1. xRDPReKy4iWvjJfw

    • Slide the slider on the back of the phone to the free position.

  2. O2GnSLp4rqZVd1bv

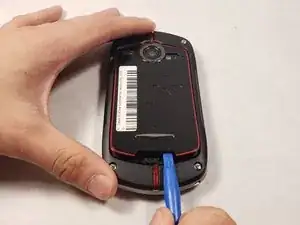

    • Using a plastic opening tool, gently lift open the back panel from bottom of the panel.

  3. uRRrS6M6ITDcVKCH
    uRRrS6M6ITDcVKCH
    uXnccuQ3cHy4TtJg

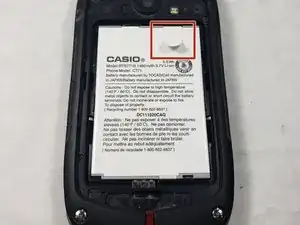

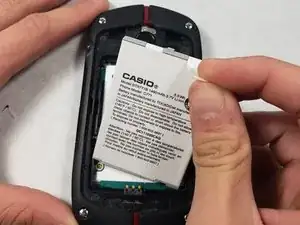

    • Pull the white battery tab upwards and remove the battery.

  4. FFNhkAwFWkNxvGWR

    • Remove the four 6mm Y0 screws from the corners of the device.

  5. cBQxSDmsQWYSfjQ4

    • Remove the four 5mm Y0 screws from the back of the device.

  6. 3xGkltIRhwSIiovh

    • Using a spudger, pry away the motherboard from its compartment, by inserting the spudger in the compartment and lifting upwards until fully out.

  7. WsBTS1B22BRmh5y2

    • Lastly, using your hands, separate the motherboard from its compartment.

Abschluss

To reassemble your device, follow these instructions in reverse order.
