Casio LK-170 Display Replacement

Geschrieben von: Samantha Baker
  • Kommentare: 1
Casio LK-170 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 - 30 Minuten

Einleitung

To see the notes you are playing, replace the screen by removing screws and opening up the keyboard to find a green panel with the display.

  1. WRVVUZjrIMmRHKo1

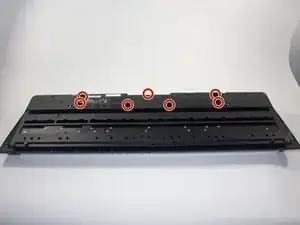

    • Using JIS-1 screwdriver, remove the seven 11mm screws located on the back of the keyboard.

  2. CChMTUpaLFX3uUAl

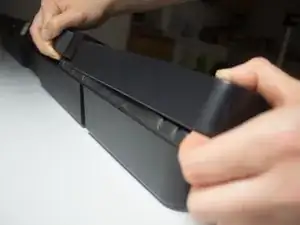

    • Once all the screws are out, flip the keyboard over and gently pull the middle panel out.

    • Flip this panel up so that the component board can be seen.

  3. Sy4cpJVfheyZ2rZh
    Sy4cpJVfheyZ2rZh
    j652xt3rbR4BGUDe
    5pZlhWoRKRsjmQxD

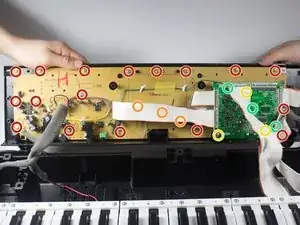

    • We will be removing a total of 26 screws on the component board..

    • First, you must use the PH-1 bit to remove the 17 8mm screws, circled in red.

    • Second, using the same PH-1 bit, you will remove the three 8mm screws hidden under the white wire. These screws are circled in orange.

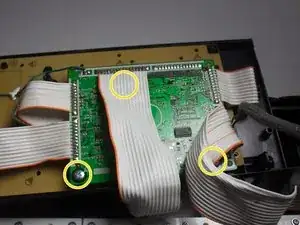

    • Third, using the JIS-1 bit, remove the three 7mm screws on the circuit board.

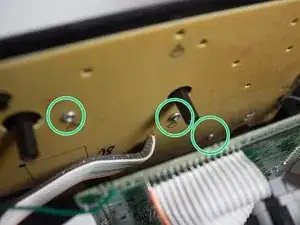

    • After removing the circuit board, three more screws will be revealed.

    • Using the PH-1 bit, remove the last three 8mm screws, circled in green.

  4. ysUEAULlZKJh4icj

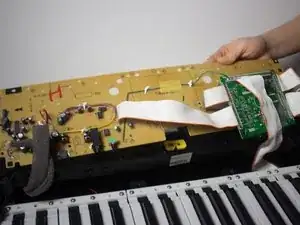

    • Once all the screws have been removed, lift the component board and place it face down on the keys.

    • The component board is connected to the keyboard, so do not try to remove it.

  5. lE1TTo4ZNAkkT36k

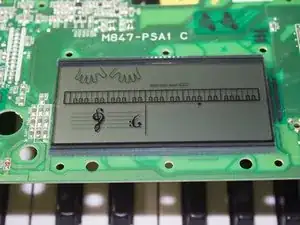

    • Flip over the component board to reveal the display that is currently connected to a green panel.

  6. F3bZq6BIQ4CoMGHP

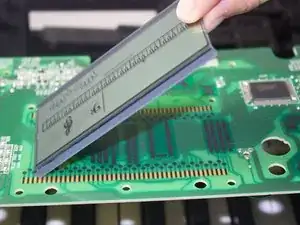

    • Remove the display by carefully picking it up with your fingers from the green panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
