Einleitung
Key's stuck or broken? No problem. Replace sets of keys in no time with the help of a screwdriver.
Werkzeuge
-
-

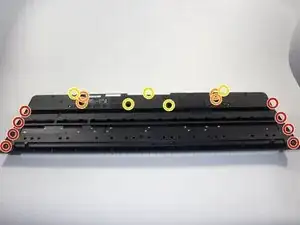

You will begin by removing 4 screws on each side of the piano, circled in red.
-

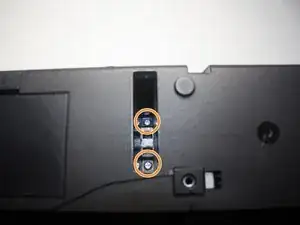

You will then remove the four screws that are a little hidden, circled in orange.
-

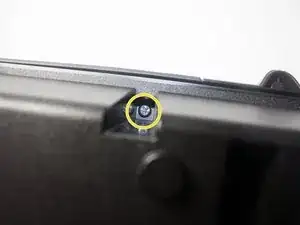

Next, remove the two screws in the middle of piano, as well as the three screws on the top of the piano, circled in yellow.
-
-
-

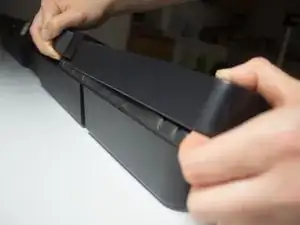

After flipping the keyboard over to the front, carefully remove the the front panel from the back panel of the keyboard using your hands.
-
You should now see the screws holding the keys in place.
-

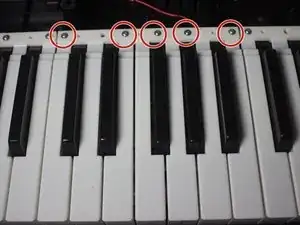

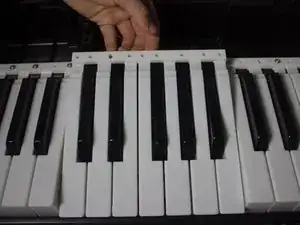

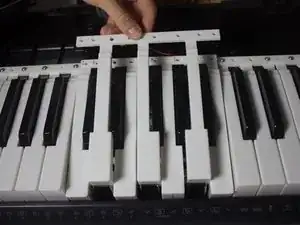

With a JIS-1 bit, unscrew the five screws in the section with the key you want to replace.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
