Einleitung

Step by step guide on how to replace the battery in the watch.

  1. JAfC3qCnXMTtLHZI
    JAfC3qCnXMTtLHZI
    McXNkdNwZfGGBmEx

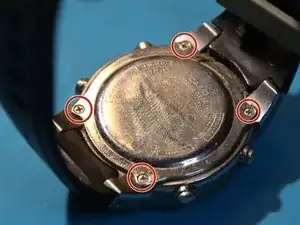

    • Use a Phillips #00 to remove the 4 screws holding the back.

  2. Ae2iv5LF4P1SW3Zl
    Ae2iv5LF4P1SW3Zl
    dadvN5jGSVZPXbrC
    IMfXlxPvSXVRCgET

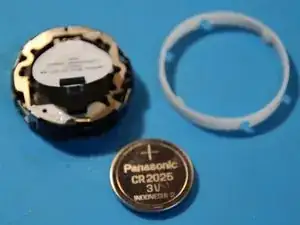

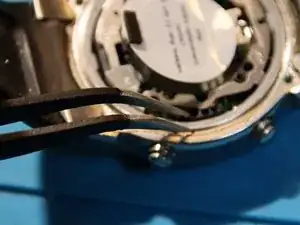

    • Use the tweezers to remove the plastic ring that aligns the movement.

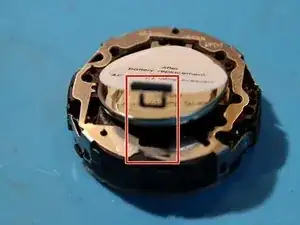

    • In this case the watch didn't have a battery installed, but to get the battery out you have to use the tweezers and unhook the latch holding the battery in place.

    • The correct battery for this watch is CR2025 3V button cell.

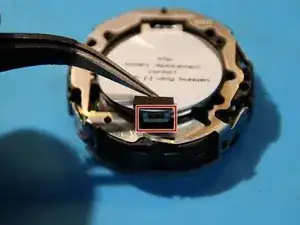

  3. Q1lYUUkDJ4uQ2YxH
    Q1lYUUkDJ4uQ2YxH
    KR2fOlwuXpm5YY1f

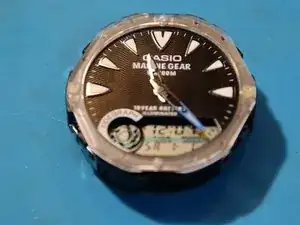

    • Insert the new battery into it's place.

    • Latch the battery hook back into it's place, securing the battery.

    • Turn the movement over to verify the watch is now working.

    • You may have to touch the AC (negative) side of battery, to the metal grounding plate. (It's stated on the white label and marks are very clear).

  4. Jdf4LoqPDjLZBO3O
    Jdf4LoqPDjLZBO3O
    PnH1fVEmSejEMWw5
    iAkmyBDhpEcS6gvM

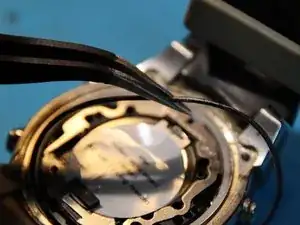

    • Make sure the rubber gasket is placed correctly in it's groove, as it is there for water resistance.

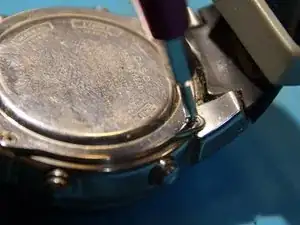

    • Place the back cover on and fasten the 4 Phillips #00 screws securing the back plate.

    • Set the time and date, and your watch is now in working order again.

Abschluss

Reassembly is detailed in the guide
