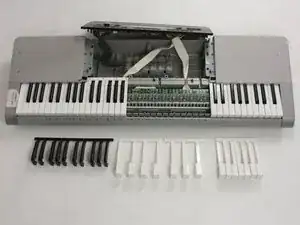

This guide will teach you how to remove, clean, and replace the black keys of the keyboard.
Werkzeuge
Ersatzteile
-
-
Remove speaker(s) if necessary to access desired key section(s)
-

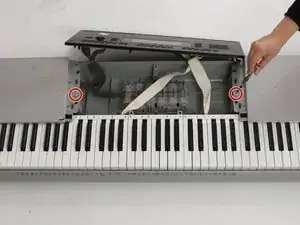

Use Phillips #2 screwdriver to remove two 16 mm screws (circled in red)
-

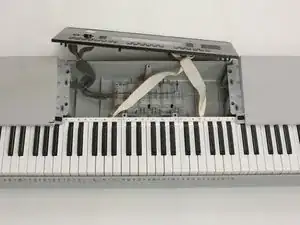

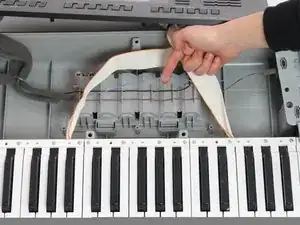

Pop wires out of plastic holders so speaker can be moved out of the way
-

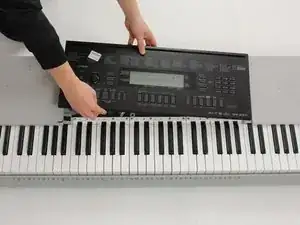

Move speaker out of the way
-
-
-

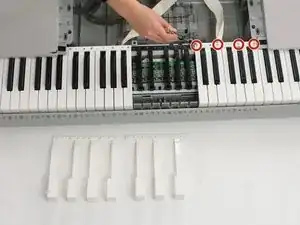

Remove 4 18 mm screws (circled in red) from desired key section using Philips #1 screwdriver
-

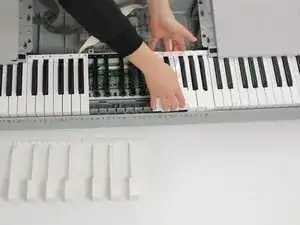

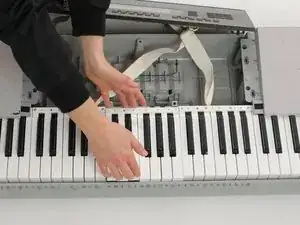

Gently push white keys away from screws and pull up to remove from keyboard. Repeat this with the black keys
-
Reassemble with new/cleaned keys
-
-
-
Remove second white section covering desired black section
-

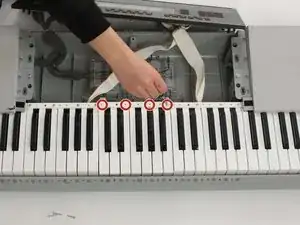

Remove screws using Phillips #1 screwdriver
-

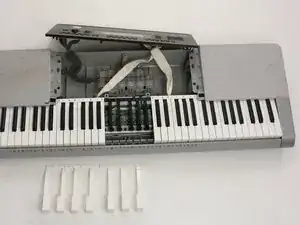

Push keys away from screws and pull up
-
-
-

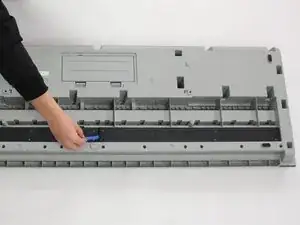

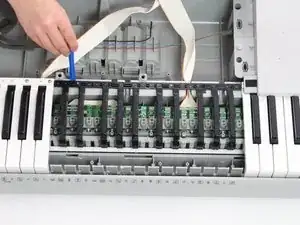

Use plastic opening tool to pry up black key section
-

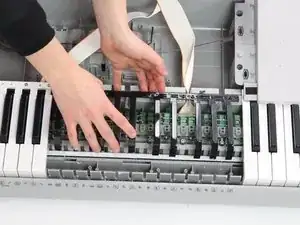

Remove black key section
-
Reassemble with new/clean black key section
-
To reassemble your device, follow these instructions in reverse order.
