Cassida Counterfeit Detector Disassembly

Geschrieben von: TREVOR j NELMS
  • Kommentare: 0
Cassida Counterfeit Detector Disassembly

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. YlU3qJFMWjKlx6VD

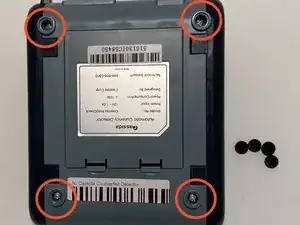

    • Remove the rubber legs.

  2. JXmJdTNHEsHRQvXl

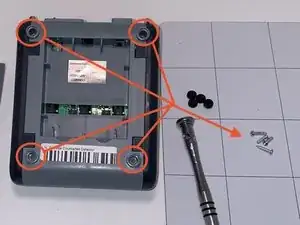

    • Using a Phillips #1 bit, remove the circled screws.

  3. 66vXmRrnbgaO6EYB

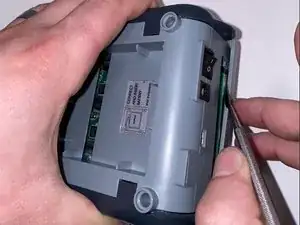

    • Pry the top cover off, starting from the side with the switch, with a metal spudger.

  4. owsItk1GV2wW5kFo

    • Pop the 4 tabs on the top of the machine up with a metal spudger and then remove the 2 side panels.

  5. WAsf3O1xHcWqUAor

    • Disconnect the wires circled and then remove the top section from the bottom section just by pulling the top section straight up and holding onto the bottom.

  6. NoAjs4JRQJkWmpph

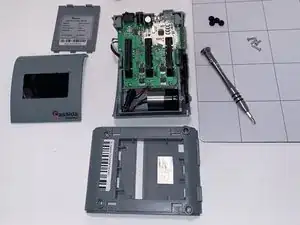

    • All the parts disassembled.

Abschluss

To reassemble your device, follow these instructions in reverse order.
