Einleitung

  1. Q1SSy32rUrwKTPtZ
    • Place the phone screen-side down and place thumb on the yellow and black switch. Slide the switch to the right to unlock the back covering for removal.

  2. YIVbGOFVDrFBbKTK
    YIVbGOFVDrFBbKTK
    XaFmyWwD6BPwNZDq
    • Remove the back covering by gently lifting upwards from the bottom of the back covering. The back will snap off and the battery is exposed.

  3. vZgnAE2XwMIOCn4Y
    vZgnAE2XwMIOCn4Y
    XSragQJiJpfcSLws
    • Place index finger at the top edge of the battery and gently lift upwards. The battery will slide cleanly out of the phone.

  4. ciNgmJNgTIEoWHoK
    ciNgmJNgTIEoWHoK
    ZIRDPmv2AbwS5KcF
    • With the back cover removed, locate and remove the Phillips screw pictured top-center, and the two torx screws above and to either side of the Phillips screw. A T-5 bit is required for removal of the torx screws.

    • WARNING: Proceeding beyond this point will void the warranty for this device.

  5. GhdRNbVlRghioCwL
    • Next, remove the two torx (star-shaped) screws below the battery. These screws help to secure the outer shell of the phone around the motherboard. A T-5 bit is required for removal.

  6. OF3eyVBlf3vE6rpk
    • There are three remaining screws on each long side of the phone. A small hex bit is required for removal.

  7. tHIuvWDLCCIDGltN
    • There is one more Phillips screw remaining. It is located beneath the headphone cover.

  8. MO3HFxjKvsoYUETl
    • With all screws removed, the back and side pieces should come off the front of the phone, exposing the motherboard and various components as shown.

  9. LaA4IFDjqFgfcKKR
    • With all screws removed, move around the motherboard, carefully prying it from the remaining shell.

  10. lyHffMCkV5ZdT54R
    • Finally, disconnect the chip seen in the upper right, and the board should pull away from the rest of the phone.

  11. lVtX1mDeMj1TynQb
    • Congratulations. You have successfully disassembled the Caterpillar B15.

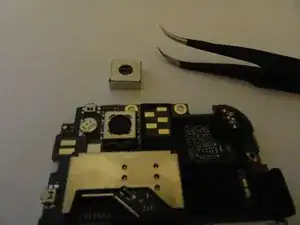

  12. SZP1fWPIE41QcjWe
    SZP1fWPIE41QcjWe
    3IdwBNRpxJtP2KnD
    • Locate the camera module (pictured). To access the component to be replaced, the protective metal casing must first be removed. There are small gaps at each corner in which tweezers will fit. Choose any two, and slide this piece off.

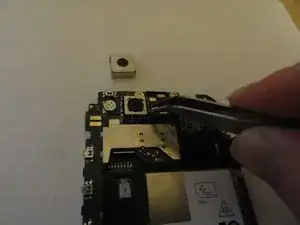

  13. jtJoxE1JjwRSKFPm
    • The module is also held in place by two small metal tabs to either side. To undo these, bend the bracket on both sides ever so slightly.

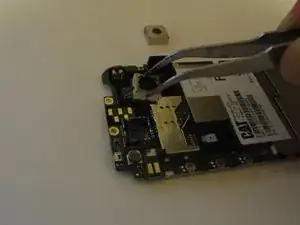

  14. RwXCvMrRYH46JiBO
    • The camera module will now easily pull free.

    • When installing the new camera module, be sure to resecure the brackets on either side. A faint click should also be heard when pressing the new piece into its socket. These are the tabs hooking onto the brackets, and will signify it is in securely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
