This is a guide on how to replace the anchor arm. These arms connect the control arms to the lenses to adjust the focal length.

  1. DIeBGI6hZTdmyU4S
    DIeBGI6hZTdmyU4S
    gmBDmruLMp1FiACn
    • Using a plastic opening tool, nylon spudger or metal spudger, pry into seam of the skin cover at the center of the device. Lightly lift the tool which should cause the skin cover to rise.

  2. MuiL1kGmW2qOs63D
    MuiL1kGmW2qOs63D
    v3fUuKJNxUKyNQXo
    • Start peeling the skin away from the center. Apply force as there is an adhesive substance that is binding the skin to the device. Continue peeling until skin cover slides off completely.

  3. LFSy3W4IFWGirDOA
    • Repeat steps 1 and 2 for the other side.

  4. I4JZBSbrGORoMabP
    • Remove the top cover of the focus knob as shown. Simply twisting and pulling the cover will slide it off.

  5. GarLAV2FZHJRBgOR
    • Use a magnetic pickup tool or magnetic screwdriver head to remove the guard. The guard should come right off without much resistance.

  6. 4TfHOL5CJIW3MIed
    • Unscrew the focus knob. It should come off without much resistance or pressure.

    • Parts revealed will be heavily lubricated. Consider wearing gloves.

  7. hSU1JFlnPmXyGESw
    hSU1JFlnPmXyGESw
    afOqdEEqQOI4B2YX
    • Locate the panels in front of the binoculars between the middle axle and the viewing lens and simply pry them off with your fingers

  8. LdGUaFNBlQYnkgAE
    LdGUaFNBlQYnkgAE
    6OlMyancMILC5Ho2
    • Using a flathead screwdriver, unscrew the highlighted screwhead for the control arm.

    • With your fingers, grab the screw head and pull it out completely once it's unscrewed and replace it with the new control arm if needed.

    • Parts revealed will be heavily lubricated. Consider wearing gloves.

  9. Ld3PIlkZMIUPpCA2
    Ld3PIlkZMIUPpCA2
    ZWYV1bQFnfgQMlTn

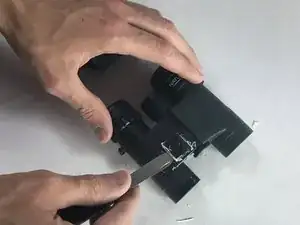

    • Identify the panel on the side you wish replace the anchor arm on, as marked on the photo.

    • Cut the panel open with a knife. Cut the adhesive substance around the panel with the knife and then using said knife, you should be able to lift it off.

  10. qtIYGiy5sQraIDR4
    qtIYGiy5sQraIDR4
    fIsVZZA4hFEJFTIl

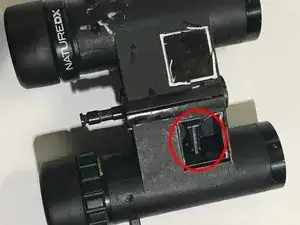

    • Identify the anchor arm. It is circled in red.

    • Using the spudger, lift the anchor arm. It should come off without much resistance.

    • Insert the new anchor arm into the now open slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
