Cen-Tech Seven Function Digital Multimeter 'On'/'Off' Switch Replacement

Geschrieben von: Rebekah Allison
  • Kommentare: 1
Cen-Tech Seven Function Digital Multimeter 'On'/'Off' Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

If the 'on'/'off' switch of the device is stuck in the 'off' position, the device will not turn on. This guide will show how to access and replace the switch from within.

  1. ZsHeYidKPtSFMstZ

    • Place the meter face down, and the back panel and screws can be seen.

  2. JnTOIqhAV2qtskAK
    JnTOIqhAV2qtskAK
    nZh2ppKdJQ65IAUO

    • Unscrew the two 9mm screws on the back panel using a #0 Phillips screwdriver.

  3. U3OHqXdYCavDOSX3

    • Remove the back panel of the device by lifting upward.

    • Remove the battery from the meter before continuing.

  4. bNmABCeqtISWFd6u
    bNmABCeqtISWFd6u
    GHsa62cSUIiPtTT1

    • Remove the four 7mm Phillips screws holding the circuit board in place.

  5. 4CmblrvOXjHF3r6B

    • Gently lift the circuit board away from the device casing.

    • Remove the battery after removing the back cover to reduce the chances of short-circuiting the circuit board.

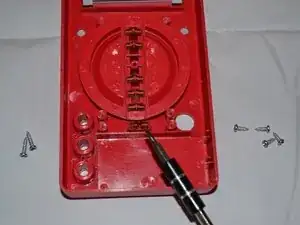

  6. IK5ro2DIBAI6xRTP

    • The 'on'/'off' switch is located directly beneath the dial.

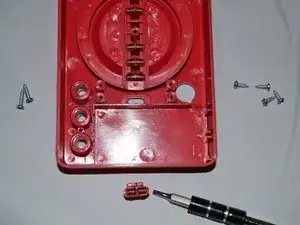

  7. VklrGYXQhZXNMQRu

    • Gently remove switch from device by lifting upward.

    • Either clean or replace switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
