Cen-Tech Seven Function Digital Multimeter Battery Replacement

Geschrieben von: Anna Kihm
  • Kommentare: 3
Cen-Tech Seven Function Digital Multimeter Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

If the device is unable to turn on, it may be necessary to replace the battery. This guide will show how to remove the old battery, and how to replace it with a new one.

  1. ZsHeYidKPtSFMstZ

    • Place the meter face down, and the back panel and screws can be seen.

  2. JnTOIqhAV2qtskAK
    JnTOIqhAV2qtskAK
    nZh2ppKdJQ65IAUO

    • Unscrew the two 9mm screws on the back panel using a #0 Phillips screwdriver.

  3. U3OHqXdYCavDOSX3

    • Remove the back panel of the device by lifting upward.

    • Remove the battery from the meter before continuing.

  4. bNmABCeqtISWFd6u
    bNmABCeqtISWFd6u
    GHsa62cSUIiPtTT1

    • Remove the four 7mm Phillips screws holding the circuit board in place.

  5. 4CmblrvOXjHF3r6B

    • Gently lift the circuit board away from the device casing.

    • Remove the battery after removing the back cover to reduce the chances of short-circuiting the circuit board.

  6. flNaMefRAaSccZwD

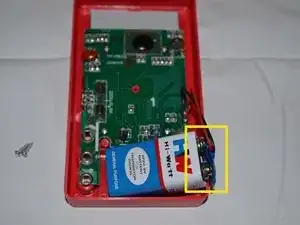

    • After removing the outer casing and motherboard of the device, locate the attachment site of the battery to the motherboard.

  7. cQwctNqlct2OtnAO

    • Unsnap the battery from its attachment plate.

    • When replacing the battery with a new one, be sure to properly align battery heads (positive and negative) with snaps. The positive battery head should be connected to the negative wire, and vice versa.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Anna Kihm

Mitglied seit: 13/10/14

918 Reputation

3 Kommentare

My case was glued or welded together. I thought it was going to break elsewhere first

No need to remove the board. Just use a screwdriver to pop the battery connector off

Osman Vincent -

In at least some of these meters, the caution label has been applied upside-down, so that it covers the screw holes.

dan -

The top of the panel has two tabs engaged (can be seen by carefully examining photos above). After screws are freed, lift the bottom edge first to allow tabs to disengage. Also, routing of battery clip wires is critical; take care that they clear the case edges.

dan -
