Cen-Tech Seven Function Digital Multimeter Screen Replacement

Geschrieben von: Anna Kihm
  • Kommentare: 1
Cen-Tech Seven Function Digital Multimeter Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

If the screen is cracked or not working it may be necessary to replace it. This guide will show how to conduct a screen replacement.

  1. ZsHeYidKPtSFMstZ

    • Place the meter face down, and the back panel and screws can be seen.

  2. JnTOIqhAV2qtskAK
    JnTOIqhAV2qtskAK
    nZh2ppKdJQ65IAUO

    • Unscrew the two 9mm screws on the back panel using a #0 Phillips screwdriver.

  3. U3OHqXdYCavDOSX3

    • Remove the back panel of the device by lifting upward.

    • Remove the battery from the meter before continuing.

  4. bNmABCeqtISWFd6u
    bNmABCeqtISWFd6u
    GHsa62cSUIiPtTT1

    • Remove the four 7mm Phillips screws holding the circuit board in place.

  5. 4CmblrvOXjHF3r6B

    • Gently lift the circuit board away from the device casing.

    • Remove the battery after removing the back cover to reduce the chances of short-circuiting the circuit board.

  6. oBjtYxxYQUpBrIiU

    • The screen is located at the top of the device.

  7. URL5icfSORWxJgjV

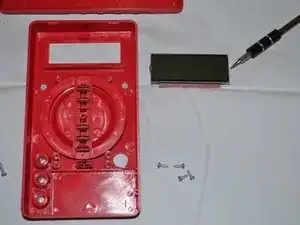

    • Carefully remove screen from device by lifting upward.

Abschluss

To reassemble your device, follow these instructions in reverse order.
