Motorola Moto 360 3rd Gen Battery Replacement

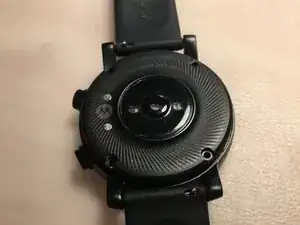

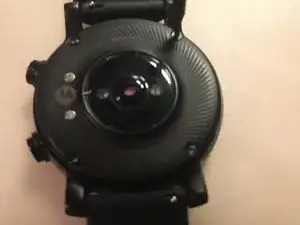

Unscrew the 4 bolts with your T4 screwdriver.

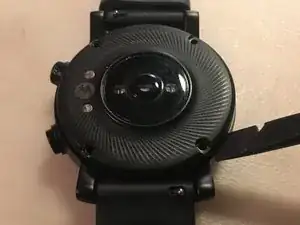

If the cover is stuck, gently pry open with a spudger.

Do not remove the cover completely, it could damage the watch.

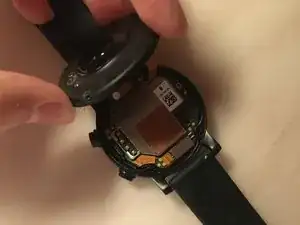

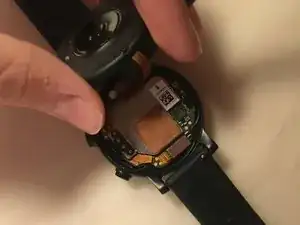

Gently raise the cover.

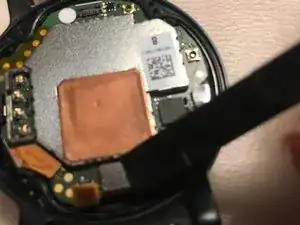

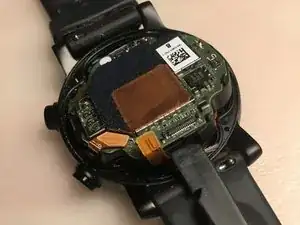

Disconnect the cable with your spudger.

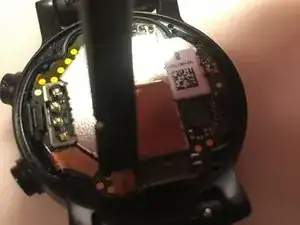

Gently disconnect the ribbons with your spudger.

Do not remove the bottom-left cable.

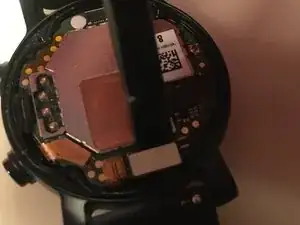

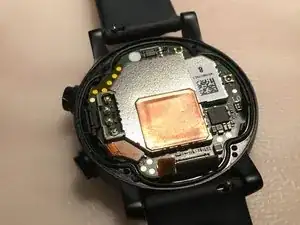

Gently remove the motherboard.

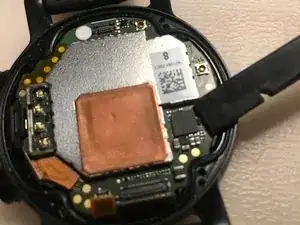

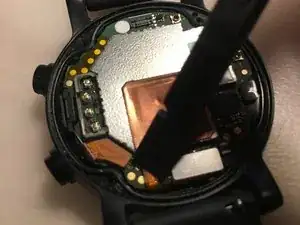

Place your spudger under the board and lever up.

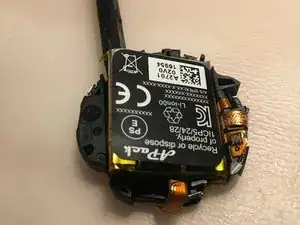

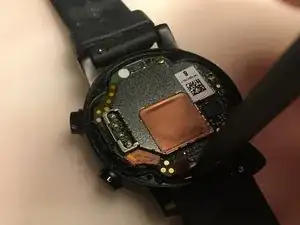

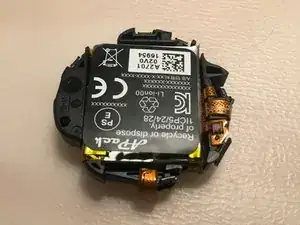

Turn the motherboard around so that you see the battery. The battery connection needs to be at the bottom.

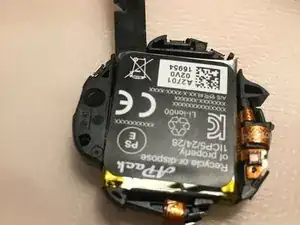

Gently pry the battery. The easiest way to do so is in the top-left corner.

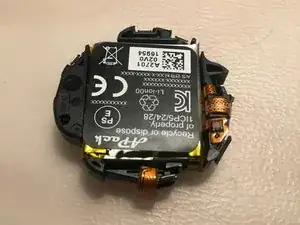

Put the battery back into its case.

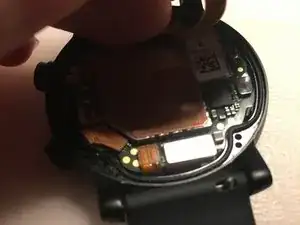

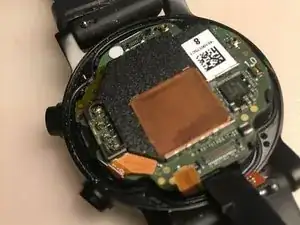

Gently put back the motherboard in the watch casing.

Start by putting the left side first.

Be careful not to pinch any cables.

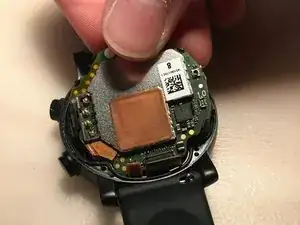

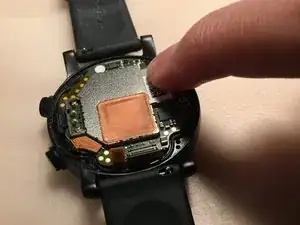

Reconnect all the cables.

Note: You can use your spudger but a finger does it.

Reconnect the cable attached to the back panel.

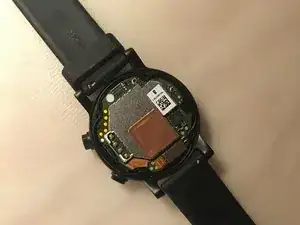

Screw the four screws and you’re done!
