Einleitung

This guide will take you through the steps of replacing your Sterwins HC 150's pump.

  1. s2o2cRFV3MFRy6oc
    s2o2cRFV3MFRy6oc
    UDTKkMTm3sUOjZmY

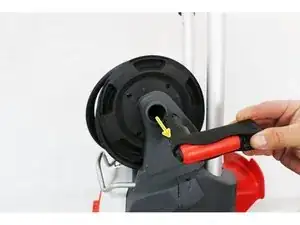

    • Before any intervention on the device, make sure that the power cord is disconnected.

    • Pull on the winder handle facing you to unclip it.

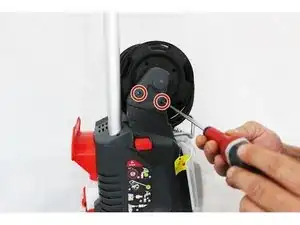

  2. rTHLPkUNkMuXtjZZ
    rTHLPkUNkMuXtjZZ
    q2d5DbPvNEZYKVrC
    YHBT6ZnPlXHUsgIY

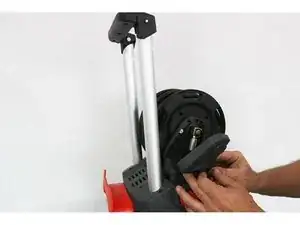

    • Unscrew the 2 housing fixing screws.

    • Remove the housing.

    • Using a flathead screwdriver, remove the clips holding the high pressure outlet connector from the pump to the hose reel.

  3. YgdUo5S1oLtO6jDj
    YgdUo5S1oLtO6jDj
    QbWMqDgJqtyQ26ht
    LayRXNx6KD3QTB2t

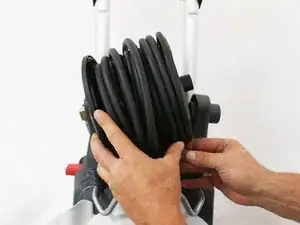

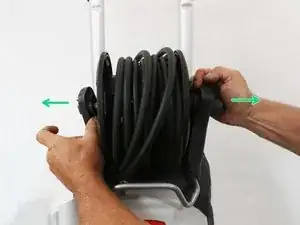

    • Pull the connection towards you.

    • Move the 2 roller bearings outwards.

    • Then remove the winder one side at a time.

  4. TiOUfQjZqMIT2GvS
    TiOUfQjZqMIT2GvS
    6Vmceg4yKdZNPQwD
    mOWWCtvjG4adqJkW

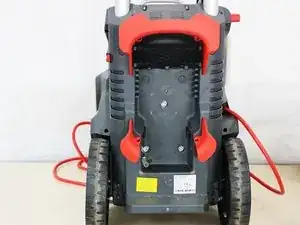

    • Unhook the container by pulling towards you.

    • Uncouple the suction hose by pulling in the direction of the arrow.

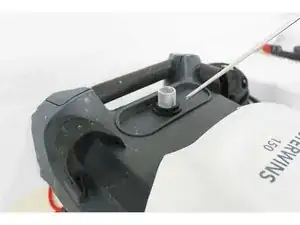

  5. 2Td6fZZXOBuShFbC
    2Td6fZZXOBuShFbC
    6E6tHbQ2Y5EQnLoC
    UOWxtDIiYE2UBeYH

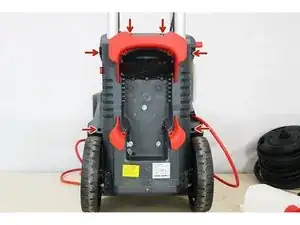

    • Unscrew the 6 fixing screws indicated by the arrows.

    • Tilt the product forwards to access the last 2 fixing screws located under the device marked with the arrows.

    • Then lay the device flat, and unscrew the plastic nut from the water inlet pipe.

  6. iSNgw1OoOSNkpwpm
    iSNgw1OoOSNkpwpm
    Z2dBpKEHF1jDUNPS
    MArX1UvpfvHvnRYk

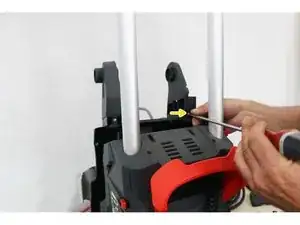

    • Remove the faceplate upwards.

    • Return the device to an upright position on its wheels.

    • Unscrew the screw indicated by the arrow to separate the bearing from the winder in order to extract the pump outlet pipe.

  7. lvKpqWyKNEQdCxYG
    lvKpqWyKNEQdCxYG
    WCAlCbv2KQInpkZw
    2BHBaVU2W6mLXFFp

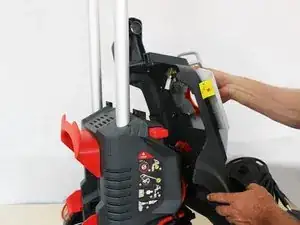

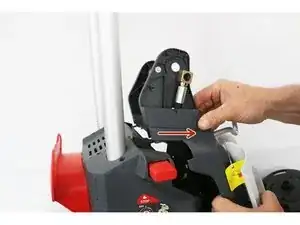

    • Once the fixing screw removed, slide the bearing as indicated by the arrow.

    • Then pull upwards to extract the bearing from the pipe.

    • Then remove the front panel.

  8. TRQSl2hTVOJrDVCW
    TRQSl2hTVOJrDVCW
    p3LQ52jqTJGUH4cl
    c4Fa6Oo5YyOxyKGS

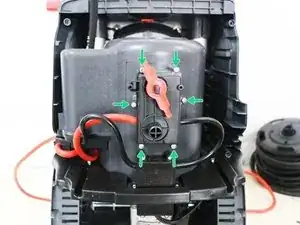

    • Remove the button facing you.

    • Unscrew the 2 screws as indicated in order to separate the support.

    • Then unscrew the 6 screws and remove the hatch to access the electrical connection.

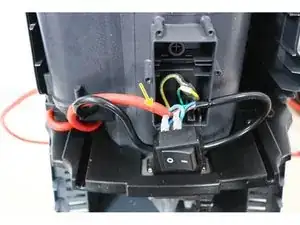

  9. fJSjXoLFZk4KfLmJ
    fJSjXoLFZk4KfLmJ
    3DcXctAbemRWmvVa
    uQs6ULgkIFILZKTx

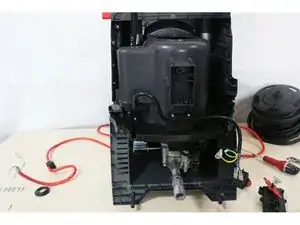

    • Remove the switch from its housing.

    • Uncouple the red power cable from the On/Off switch.

  10. XqPCiRgiruw5SBJk
    XqPCiRgiruw5SBJk
    lxlHaJs4mwpbCypO
    ABKOx1oISrW462OS

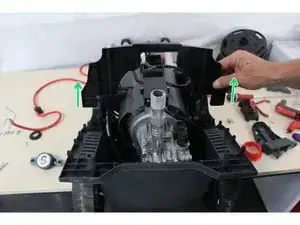

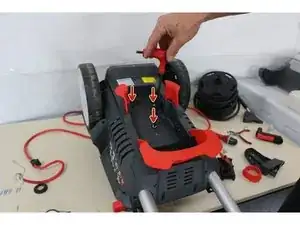

    • Unscrew the 3 fixing screws of the pump using the allen key.

    • Turn the device over, unscrew the 2 screws of the pump retaining hoop.

    • Then pull it up.

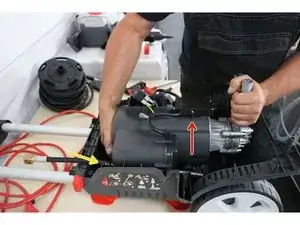

  11. ZBtVlFdHwaTgZj1u
    ZBtVlFdHwaTgZj1u
    1BEBMooeH6N6ATQQ
    3PYMivhUmPbKVhQV

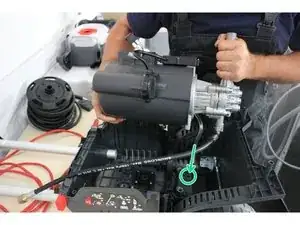

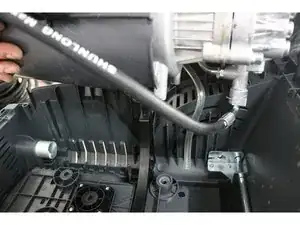

    • Lift the pump upwards.

    • Be careful to note the passage of the high pressure pipe, indicated by the yellow arrow.

    • Be careful to note the passage of the detergent pipe, indicated in green by the arrow and the circle.

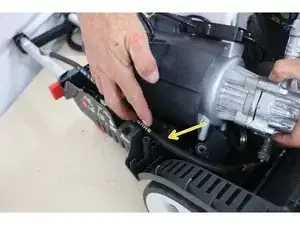

  12. ORWHNfPxsCVpQ3c5
    ORWHNfPxsCVpQ3c5
    ICrDjwQggL2UUpyQ
    eSUAKuZUsYNmSxnd

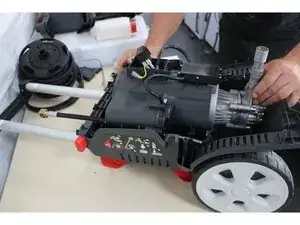

    • Fit the suction pipe of the detergent container.

    • Install the pump outlet pipe.

  13. wMFuHAMHwWnbDKT5
    wMFuHAMHwWnbDKT5
    kEUVxQCTUpFCILbB
    OTvLZwkUuOqSsPiO

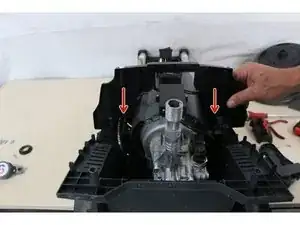

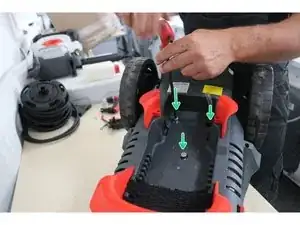

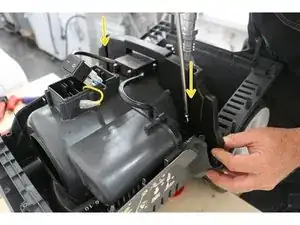

    • Install the pump motor retaining arch.

    • Tighten the 2 arch fixing screws.

    • Turn the device over on the front face in order to reattach the 3 pump motor retaining screws.

  14. eYAaVDPqCEgoffhL
    eYAaVDPqCEgoffhL
    Ca3GWBKHMDRrADmA
    JQjclXCdKemSJTGI
    • Position the cable block on the housing as indicated by the red arrow.

    • Position the excess cable as indicated by the yellow arrow

  15. Ymwsw6oqStPhYMfT
    Ymwsw6oqStPhYMfT
    PqOW4yVrqlumlI4w
    bZeSTAgGxA1JPmJx

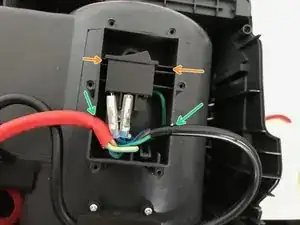

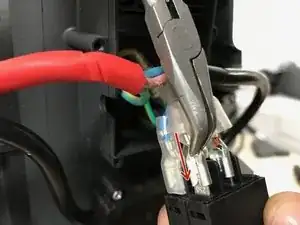

    • Connect the power cord (red) to the On/Off switch, taking care to match brown with brown (phase) and blue with blue (neutral).

    • Be careful not to forget to connect the grounding cable (yellow/green) as indicated by the yellow arrows.

    • Reposition the switch in its housing indicated by the orange arrows, as well as the cables indicated by the green arrows.

  16. qa3YBEVfhU3eYi4a
    qa3YBEVfhU3eYi4a
    lGLD1jDEqDlCU5p5
    fDFjgHLJwluIbhbc

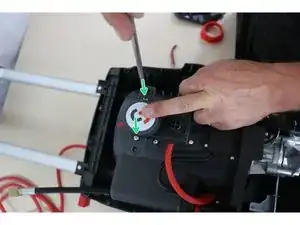

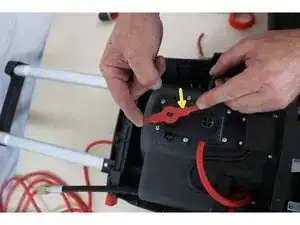

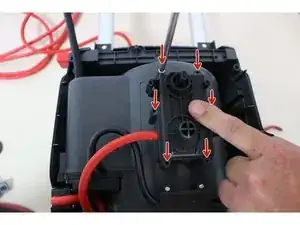

    • Position the plate and tighten its 6 fixing screws.

    • Put the control lever back in place.

    • Insert the 2 fixing screws of the button support.

  17. wxQZeRF1bKKEUTEl
    wxQZeRF1bKKEUTEl
    Hd6dwqQXfCYWkshU
    xWEHo6vVsQXD5BsO

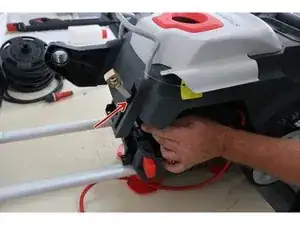

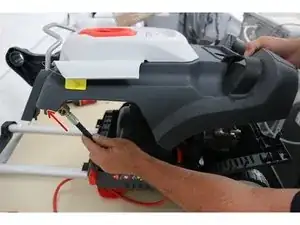

    • Be careful before fitting the front panel, do not forget the control button by positioning its notch with the control lever (as shown in the photo).

    • Insert the hose into the channel of the bearing support of the reel.

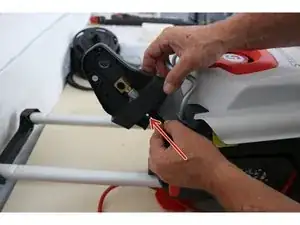

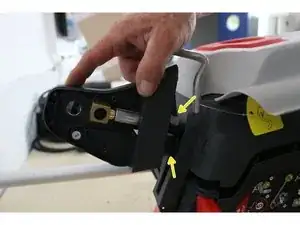

  18. FJUH2qGLGZKUrHBx
    FJUH2qGLGZKUrHBx
    3hOkSDng3SJrF5Ay
    NrgEnWhJdq4FIZaX

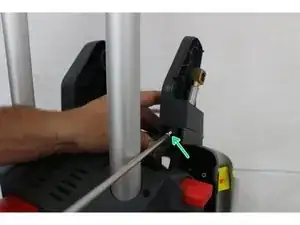

    • Insert the pipe into the bearing.

    • Insert the slide of the support into that of the front.

    • Put the fixing screw back in place.

  19. rGqDakXBaHPK23H1
    rGqDakXBaHPK23H1
    BED2FdYe1NnUFHnS
    donnSwwHklLX2RHT
    • Reposition the front panel, aligning the notches correctly.

    • Screw the plastic nut of the water inlet pipe back on.

    • Tighten the 8 front fixing screws.

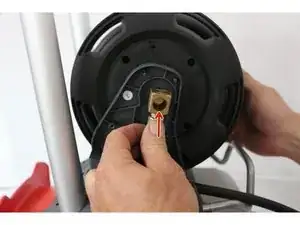

  20. pWymhGk2NasSXGvM
    pWymhGk2NasSXGvM
    x5frTTdnu2EwOGgu
    WeoEBqavp2Fk5YHO
    • Connect the hose to the winder.

    • Install the locking clips.

    • Tighten the 2 casing fixing screws

  21. 5QaYg4DTWrUqIFvd
    5QaYg4DTWrUqIFvd
    n1BoDQrMFKFxWBuy
    SAcj4SoJMBMWkIGG

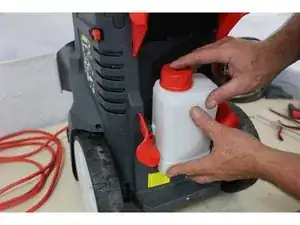

    • Connect the suction hose to the detergent container.

    • Replace the container.

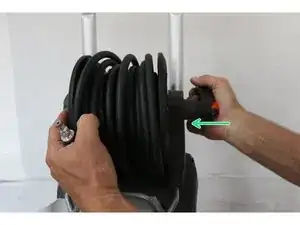

    • Insert the handle into the winder until it snaps into place.

  22. k4cDToYoR2253gBS

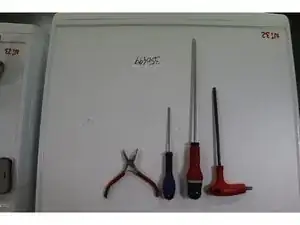

    • 1 clamp

    • 1 flat screwdriver

    • 1 Phillips screwdriver

    • 1 allen key size 6

Abschluss

By the end of the guide your pump should be replaced and fully functional.
