Chef's Choice M115 Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

A loose or faulty power switch should be replaced immediately. This can be a fire hazard due to an electrical short or choking hazard if it got loose and fell into the hands of an infant. This guide will show you how to prevent this from happening.

  1. bcDNdSkwPkB1uW2g
    bcDNdSkwPkB1uW2g
    hkSbsIn6aOJZRuc6

    • Remove the two rubber feet on the motor side of the device.

    • Remove the five Phillips screws from the bottom of the case.

    • These screws are recessed deep in the device, so a long, thin screwdriver is required.

  2. CTCnVmFjmMlIkw2I

    • Remove the two hex-cap screws on the bottom using a pair of pliers.

  3. RAa26YtUcuF3LbUl

    • Carefully flip the device right-side-up while grasping the top and bottom pieces.

    • The white cover should lift off with no resistance. If it does not, ensure all screws were removed in previous step.

  4. qB2mrWHCjsZOVvUp

    • Remove the sharpener guard by gently pulling up on it.

    • If the sharpener guard does not come off easily, ensure all screws were removed in step 1.

  5. abwyMUF2iOcWTdwT

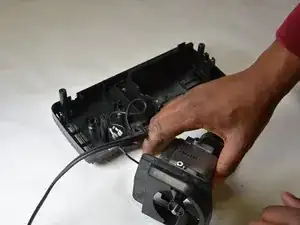

    • Carefully lift the entire motor assembly out of the case.

  6. 5iRXSfZ1IBko5qrC
    5iRXSfZ1IBko5qrC
    YgyIsmFhaHlFluPU

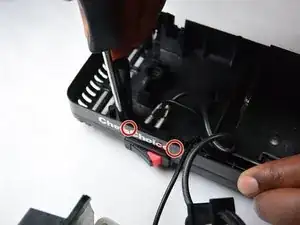

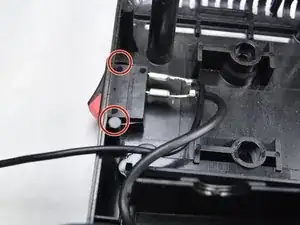

    • Using a screw driver, unclip the edges of the switch by pushing them inwards and nudging the switch out of the plastic casing. You will hear a click when the edges unhook from the casing.

  7. YIZywysD2Oenexvw
    YIZywysD2Oenexvw
    Gh3Zubj1Cqb5Q2mE

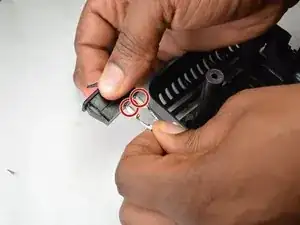

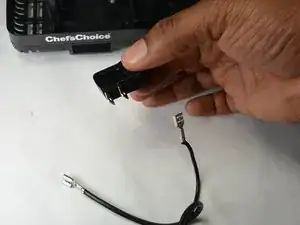

    • Remove the spade connectors from the switch by pulling only on the connector, not the wire.

    • This may require a fair bit of force. Use caution to not damage the device, yourself, or your surroundings.

Abschluss

To reassemble your device, follow these instructions in reverse order.
