Chef's Choice M115 Sharpening Stones Replacement

Geschrieben von: Zachary Nagel
  • Kommentare: 2
Chef's Choice M115 Sharpening Stones Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

Sharpening is essentially what the chef's choice is about. This is achieved by the sharpening stones and will frequently need to be replaced. Extra caution to be taken on the removal of the c-clips as they can easily spring out and get lost.

  1. bcDNdSkwPkB1uW2g
    bcDNdSkwPkB1uW2g
    hkSbsIn6aOJZRuc6

    • Remove the two rubber feet on the motor side of the device.

    • Remove the five Phillips screws from the bottom of the case.

    • These screws are recessed deep in the device, so a long, thin screwdriver is required.

  2. CTCnVmFjmMlIkw2I

    • Remove the two hex-cap screws on the bottom using a pair of pliers.

  3. RAa26YtUcuF3LbUl

    • Carefully flip the device right-side-up while grasping the top and bottom pieces.

    • The white cover should lift off with no resistance. If it does not, ensure all screws were removed in previous step.

  4. qB2mrWHCjsZOVvUp

    • Remove the sharpener guard by gently pulling up on it.

    • If the sharpener guard does not come off easily, ensure all screws were removed in step 1.

  5. g5JWVNWy2yZI5JLb
    g5JWVNWy2yZI5JLb
    depwqriPqpf22uW3

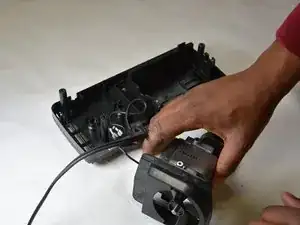

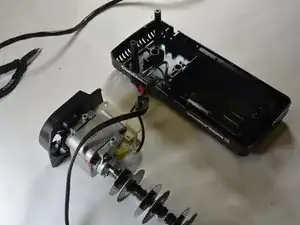

    • With the outer case removed, firmly grasp the motor-axle attachment and remove it from the base. It should come right off of the assembly.

  6. lderLhJ2itJmMvMR
    lderLhJ2itJmMvMR
    wDbvyUCkNS4AcSIZ

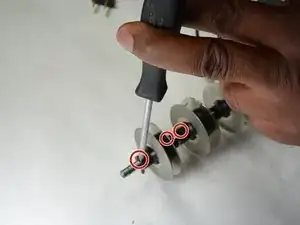

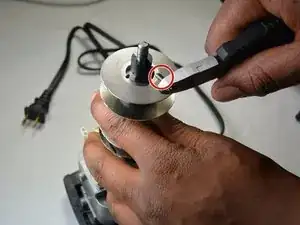

    • Use a screwdriver to push the linkage pins out of the rod.

    • Use pliers to pull the pins the rest of the way out.

    • Remove all the linkage pins necessary to slide desired sharpening stone off the end of the shaft.

  7. 2BRGBvqqcWQpBVWC
    2BRGBvqqcWQpBVWC
    QOZqRfSoQTNSkPp4
    Uonx4JwfwJxi3LLM

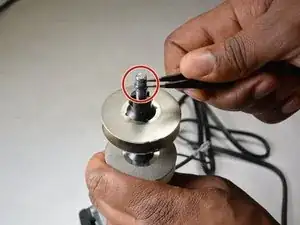

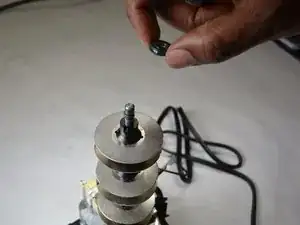

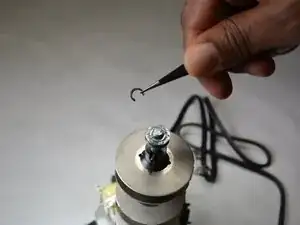

    • On the rotating apparatus, holding the sharpening stones in place, are two C-clamps that grip the axle.

    • Remove the C-clamps by applying pressure to both sides of the "C" and pushing the clamp over and off of the axle.

    • Pull the bearing off the shaft. It is in between the two C-clamps.

    • These clamps are very small; use caution to avoid dropping them on the ground or losing them.

  8. d3inGaCHwK2GhOTm

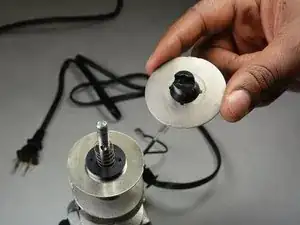

    • Pull sharpening stones off the end of the shaft.

    • Be sure to remember the order and placement of each individual stone so you can reassemble them in the same order.

Abschluss

To reassemble your device, follow these instructions in reverse order.
