Chefman RJ38-V2-35 Timer Replacement

Geschrieben von: Robert Gates
  • Kommentare: 0
Chefman RJ38-V2-35 Timer Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

If the air fryer is not stopping at an allotted time for cooking, this guide is for you. This guide will work you through how to replace the timing system in the air fryer. It’s a semi long process, but not too challenging.

  1. JmYgfpCHaHhm3Edn

    • Using the plastic opening tool, pop off each of the four corners on the top silver plate.

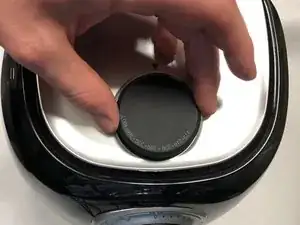

  2. JFbl5eoWmFk6tiYT

    • Twist off the temperature knob.

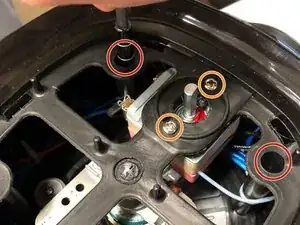

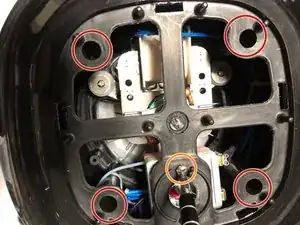

  3. 2awCXaFMjcaZYwBu
    2awCXaFMjcaZYwBu
    neXWwqYGGWC6Yeag

    • Using a Phillips #1 screwdriver, remove the four 4mm screws, one in each corner.

    • Also unscrew two 4mm screws.

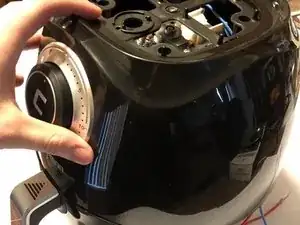

  4. YwuYJe1RV1ZRVuDP
    YwuYJe1RV1ZRVuDP
    toQwsOhg5l6OiD3K

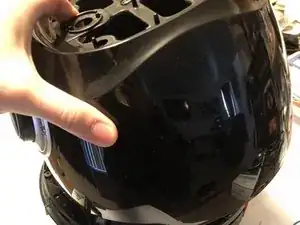

    • Pull off top black cover.

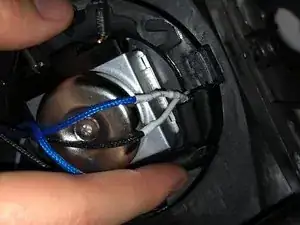

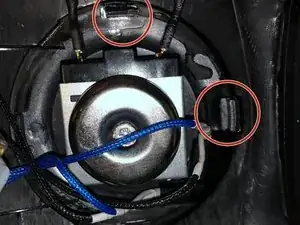

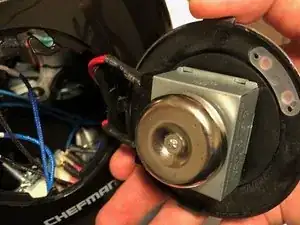

  5. 3A4JrF2XXSsgvREd
    3A4JrF2XXSsgvREd
    GmvBPn5Rrvfivmrx
    qKYOkxfwpdT3XIdK

    • Squeeze on plastic pieces holding timer down and push out.

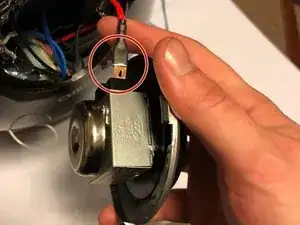

  6. 1Xe4yRdWk1MRdGYC

    • Pull cable from timer using either hands or tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
