Einleitung

This guide will walk you through the following steps:

  • Removing the bottom of the kettle
  • Locating and identifying the internal components
  • Disconnecting the wiring from the internal components
  • Removing the kettle power supply
  • Removing the kettle control switch

Reassembly is as simple as reversing the steps!

  1. DImgL5HHoBwlW1xV
    DImgL5HHoBwlW1xV
    RIjHwHUVbJsRWPgA

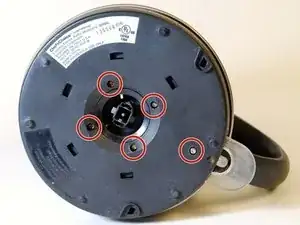

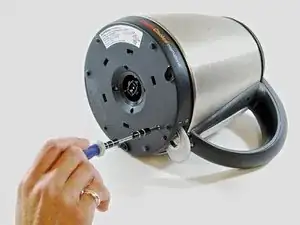

    • Remove the five 3/8" screws from the base of the kettle using a Phillips #1 screwdriver.

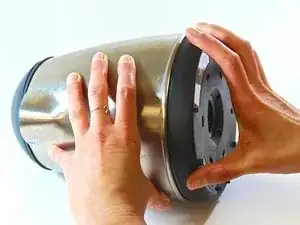

  2. XRQKIoept5KAKZnI
    XRQKIoept5KAKZnI
    HHmZrnjm2JEMjGyN

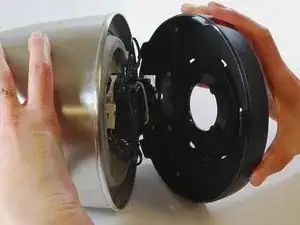

    • Using your hands, pry the base off the kettle.

    • Open the kettle like a clamshell; the ON/OFF switch will be the hinge point.

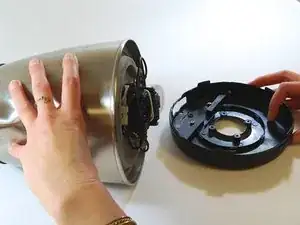

  3. eMYxHQQuhEyorqGO
    eMYxHQQuhEyorqGO
    phgKfCEUND1yuWOw
    12RQYeCNguM66Ea5

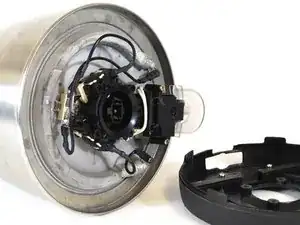

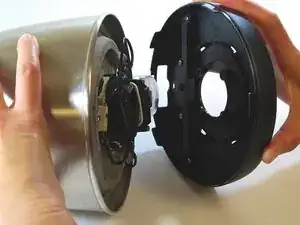

    • Using your hands, remove the kettle base by sliding it over the switch.

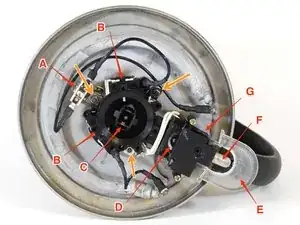

  4. AsKrm2cTfwaUcFEd
    • Now that you have removed the bottom from the kettle, identify all of the parts. The ORANGE arrows point to the posts for mounting the control circuit components. The RED arrows point to the following parts:

    • A: The power supply.

    • B: The two boil-dry protection switches, one on either side of the central black ring.

    • C: The power coupling. This fits into the baseplate when you place the kettle on it.

    • D: The thermostat. This is a little metal ring, half hidden by the switch cover.

    • E: The manual ON/OFF switch.

    • F: The indicator light.

    • G: The steam chamber. This heats the thermostat, which turns off the kettle automatically.

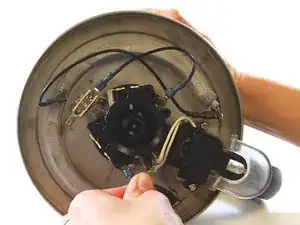

  5. SvaZweLcbXBBUaoM
    SvaZweLcbXBBUaoM
    1H6gOwcBwA3XjRjF
    CLYKMebtteinKSvL

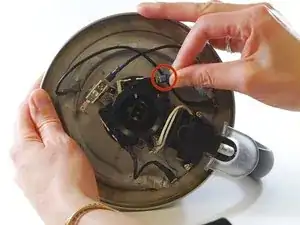

    • Take note of how the wires connect to the components to aid reassembly.

    • Remove the connectors (spaded lugs) from the circuit components as shown in the second image.

    • DO NOT pull on the wires, as you might pull them out of the connectors.

    • You should be able to remove each connector easily by hand. Pinch the lug between your fingers and pull in the direction of the attached wire.

    • If necessary, use needle-nose pliers to grasp the lug shank firmly. Gently pull the lug in the direction of the attached wire.

    • Gently bend the disconnected wires back and out of the work area.

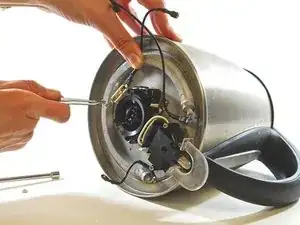

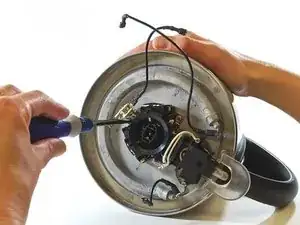

  6. Gj25UYl56AgPQiTn
    Gj25UYl56AgPQiTn
    Zxyd5ph4akpO3GSI
    • Using a 7/32" nut driver, remove the hex nut that secures the power supply to the base of the kettle.

    • Using a pair of tweezers, remove the split-ring lock washer located under the nut. (It may be hard to see in low light.)

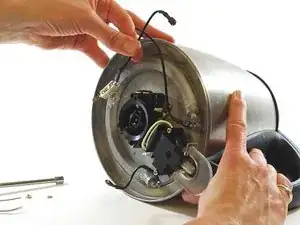

  7. T12dctsXO5ai2ZFX
    T12dctsXO5ai2ZFX
    hoRGmAyGq6W2OV6C

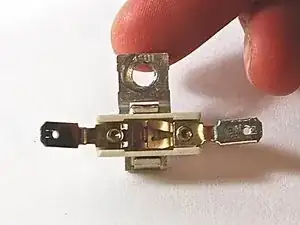

    • Using your hands, grasp the wire that is still connected to the power supply. Carefully lift the power supply off the threaded stud to which it was coupled.

    • At this point you will have removed the following parts from the kettle:

    • Five (5) screws.

    • The kettle base.

    • One (1) 7/32'' hex nut.

    • One (1) 7/32" split-ring lock washer.

    • One (1) power supply unit.

  8. lvV4E6ubHDXZqkXo
    lvV4E6ubHDXZqkXo
    IZkdtBuFJPZhdIZE

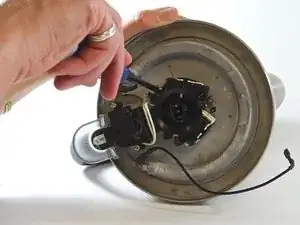

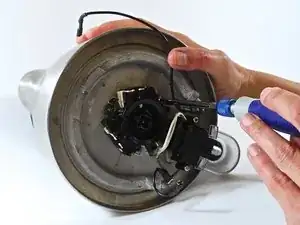

    • FIRST IMAGE: Remove the power supply. Align the kettle as shown, with the handle to your right. Use the 7/32" nut driver to remove the 7/32" nut from the stud that is located clockwise from where the power supply was attached.

    • Use tweezers to remove the split-ring lock washer located under the nut.

    • SECOND IMAGE: Roll the kettle over so the handle is now on your left. Use the 7/32" nut driver to remove the 7/32" nut from the final stud, which is now located counter-clockwise from where the power supply was attached.

    • Use tweezers to remove the split-ring lock washer located under the nut.

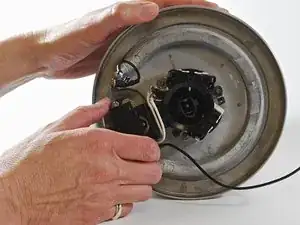

  9. XlZoIkPa51p2VNqV
    XlZoIkPa51p2VNqV
    rMNXOq3ui6jTy5I6
    udFTao6DBhOoLWVv

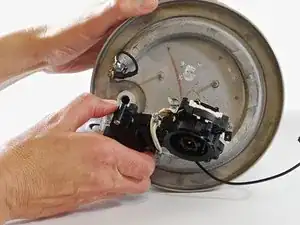

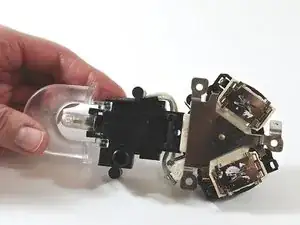

    • Grasp the control switch with one hand and the kettle with the other.

    • Gently rock the control switch while simultaneously pulling it away from the bottom of the kettle.

    • Pull the switch completely off the kettle.

  10. VxFDhlGTcQaXGFoD

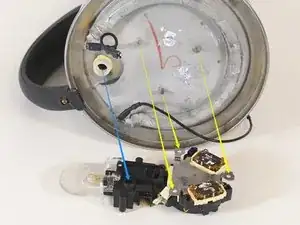

    • This image shows the alignment of various kettle parts.

    • The yellow arrows show how the studs align with the switch brackets.

    • The blue arrow shows how the steam tube aligns with the steam chamber on the switch thermostat.

Abschluss

To reassemble your device, follow these instructions in reverse order.
