Chromebook 14-x015wm Battery Replacement

Geschrieben von: Cameron Sinclaire
  • Kommentare: 0
Chromebook 14-x015wm Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

You are able to disassemble your laptop and, as a last result, purchase a new one, through a variety of different sellers. One of the most popular would be Amazon or HP themselves. The battery is an integrated 59Wh battery and it's expected use time. 5 hours

  1. 36ACGCavKnB5QeVT
    36ACGCavKnB5QeVT
    MgMH212hsItZDIjP

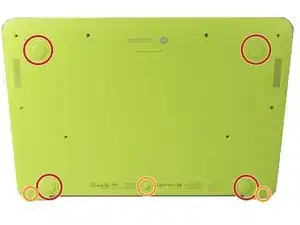

    • Turn the Chromebook upside down so that the bottom is facing upwards.

    • Remove the small rubber circles from all four corners.

    • Remove the other three rubber pads from the bottom

    • Proceed to unscrew all the screws.

    • Keep the screws on a magnetic mat or in a secure location and keep track of which screws went where.

  2. XFeE6DTJPilpTeRM

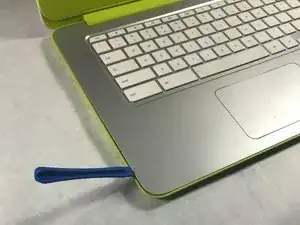

    • Flip the laptop back over and open it so that the keyboard is revealed to you.

    • Use a plastic opening tool to pry off the keyboard. It's slightly difficult to get off, but go evenly around all four sides until it pops out.

    • Be careful of the ribbons underneath that connect the keyboard to the internal components.

  3. UgckGCRkiwKLgAIA
    UgckGCRkiwKLgAIA
    RVEVQnEHItK3xLUV

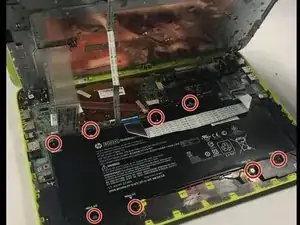

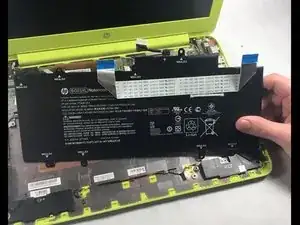

    • The long, flat, black component that takes up the majority of the space is the battery.

    • All you are required to do is unscrew the screws attached to the battery and then gently remove the battery from the Chromebook.

    • Make sure to keep track of where the screws came from.

Abschluss

To reassemble your device, follow these instructions in reverse order.
