Chromebook 15 CB3-531-C4A5 Screen Replacement

Geschrieben von: Savannah Vining
  • Kommentare: 3
Chromebook 15 CB3-531-C4A5 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

The screen will need to be replaced if there are pixels on the screen, a blue screen, or no display. There are no hazards accompanied with this task.

  1. KKynLjeB6FubriFR
    KKynLjeB6FubriFR
    1qwWq2QfXaHA2T53

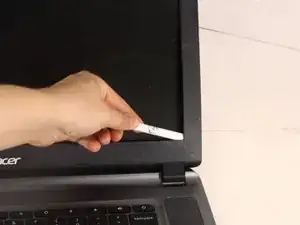

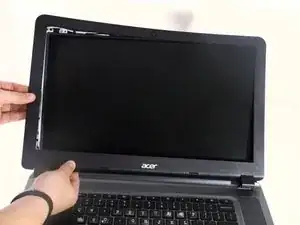

    • Remove the bezel with a plastic spudger.

    Say will the CB3-531 screen fit a CB3-532?

    Doug Crisp -

    Actually its a CB3-532-C47C 15.6

    Doug Crisp -

  2. JFdVMllGdGDaWUZE
    JFdVMllGdGDaWUZE
    GqOHN5mNEXrGIV6A

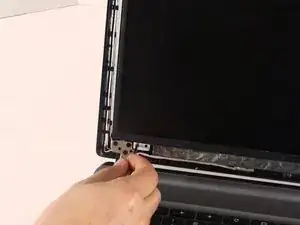

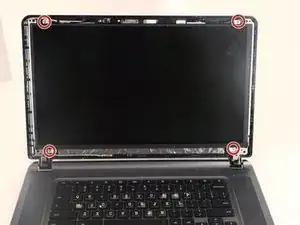

    • Remove four screws - one in each corner along the screen.

  3. ICRa2h1uTbPKpQpK
    ICRa2h1uTbPKpQpK
    raweJbWUETVKkqBr

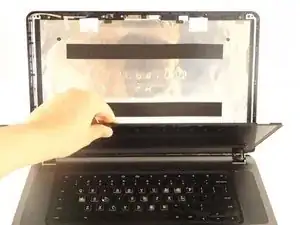

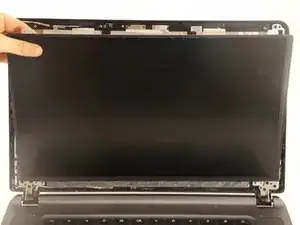

    • Remove Screen by gently pulling it out and then lifting it up.

  4. wS1qgOA2prrRxvQu
    wS1qgOA2prrRxvQu
    GaNjFCKe2mrcvnKR

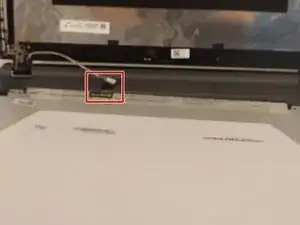

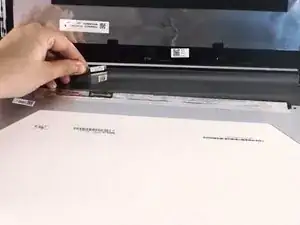

    • Remove the LCD data cable which will allow the screen to be removed completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
