Chumby One Speaker Replacement

Geschrieben von: Jordan Houchins
  • Kommentare: 0
Chumby One Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 Minuten

Einleitung

This guide shows how to replace the Chumby One speaker.

  1. pmigtkDvdNFYuuep

    • Remove 4 self-adhesive plastic dots covering the screw holes.

  2. 6SZFRLXAN4ocuMEZ

    • Remove the four 2mm screws with a Phillips screwdriver.

  3. cTsQJ6SGMsFHNbwD

    • Remove the back and bottom cover.

  4. qJDlK2kloASCdxWQ

    • Disconnect the battery connector from the motherboard with a plastic opening tool.

  5. mRjEADYhX6AcnExm

    • Disconnect the microphone connector from the motherboard with a plastic opening tool.

  6. 2YOjqIM4VxHQU5bn

    • Remove the display ribbon cable from its socket with a plastic opening tool.

  7. iYQ1SE4JQKEVNIMR

    • Remove the volume knob from the side of the Chumby One with a plastic opening tool.

  8. k6RXjU6YMKC3YRod

    • Remove the four 6mm screws using a PH000 bit on the inner chassis.

  9. Qosgy2QHBM2ujA2P

    • Remove the inner components from the outer shell.

  10. ONEudFwGRba1Se35

    • Remove the speaker wire connector from the motherboard.

  11. GfOsuS3YQZhkb2IP
    GfOsuS3YQZhkb2IP
    1Dw4SLSaoIXddqAT

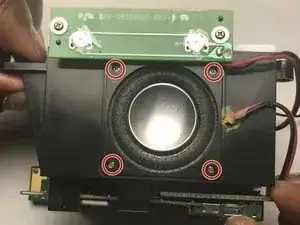

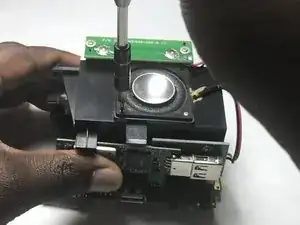

    • Remove the four 5mm screws on the speaker base with a Phillips PH00 screwdriver bit.

  12. kQq23DJm1GE1yIrr

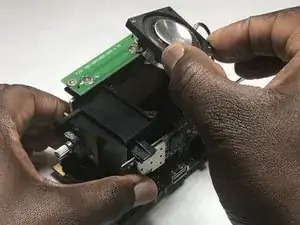

    • Remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
