Einleitung

Use this guide in order to remove the housing of the phone.

  1. eYpVKhFHM4lCIyVj
    eYpVKhFHM4lCIyVj
    WE6IOgV36JXwVINm

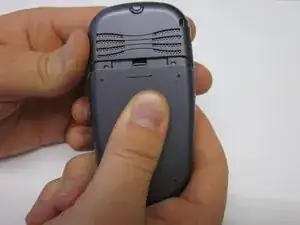

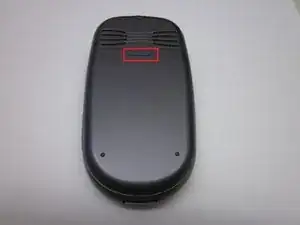

    • Locate the horizontal grip located on the back cover of the phone.

    • Slide the back cover down and off of the phone.

  2. HuncfVaHW5pMjEVr
    HuncfVaHW5pMjEVr
    hAF4DToOQAvYNQUs

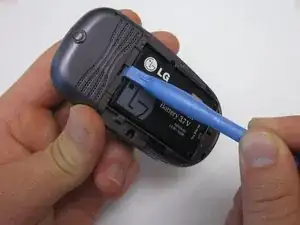

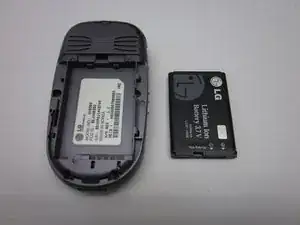

    • Insert a plastic opening tool into the battery release point located above the battery.

    • Pull outwards in order to release the battery.

  3. I34EroRy6obgMNa4
    I34EroRy6obgMNa4
    Sxuu2JTBpB4NaeL2
    lqkNGJWVrhYHBT21

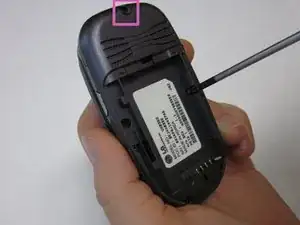

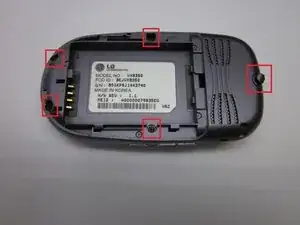

    • Locate the 5 screws holding the body of the phone together.

    • The top screw will have a plastic cover, remove it using tweezers.

    • Using a Philips head screwdriver, twist counterclockwise to remove the screws.

    • Take special care with the screw located at the top of the phone. It is smaller and more likely to be damaged or improperly attached.

  4. S1SbxEoJr5q1BL6W
    S1SbxEoJr5q1BL6W
    4HbotLKijaD6uxVo

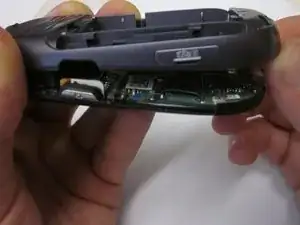

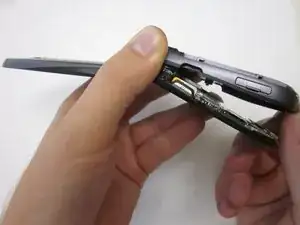

    • Lift the back cover starting at the bottom of the phone.

  5. 2veTiNRCRWgdTRMO
    2veTiNRCRWgdTRMO
    GAWaLxATIprHWX5q

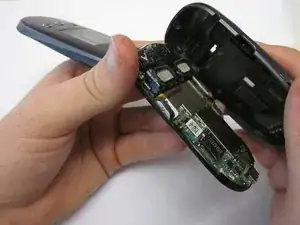

    • Remove the back cover completely from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
