Circular Saw Blade Replacement

Geschrieben von: Craig Lloyd
  • Kommentare: 1
Circular Saw Blade Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Whether your circular saw blade is worn out, or you just want to switch it out for a different style, it’s really easy to swap out blades on pretty much any circular saw—and it takes just a few minutes.

This guide uses a Ryobi P504G circular saw, but the process is very similar for most circular saws.

  1. yunZ3W1dZZtfNVCQ
    yunZ3W1dZZtfNVCQ
    JGbSPPO5NYYjqFnl

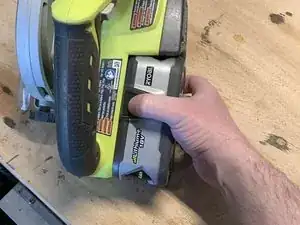

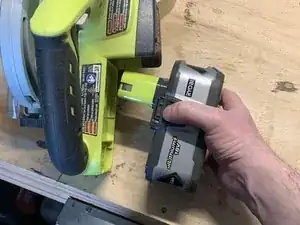

    • Unplug your circular saw or remove the battery before replacing the blade!

  2. NE5LWupWKKTvXTcP
    NE5LWupWKKTvXTcP
    m5QPNEO5VHjVPS1J
    ilRAmyPvgae5JbSK

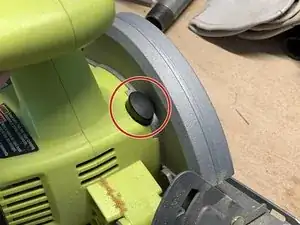

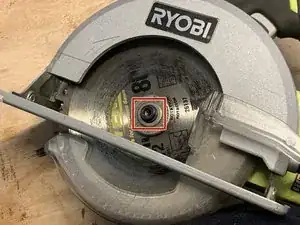

    • Press and hold down the blade lock button to keep the blade from turning while you loosen it.

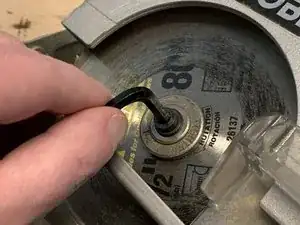

    • Loosen the arbor's hex bolt in the center of the blade using a 5mm hex key, making sure to loosen clockwise since the bolt threads are reversed.

    • Your circular saw may already come with a hex key.

  3. mbRLuMkctBodng5Y
    mbRLuMkctBodng5Y
    ywdPRJREe2JfEqq5

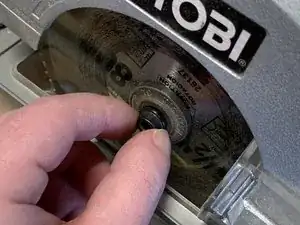

    • Once loosened, continue unscrewing the bolt with your fingers and remove it from the saw.

  4. RnWgf6HGO2BiRKQu
    RnWgf6HGO2BiRKQu
    djXGhaXZ33HbSYUJ

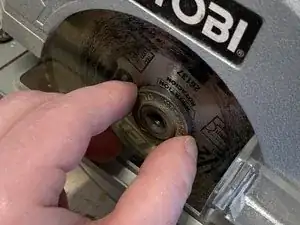

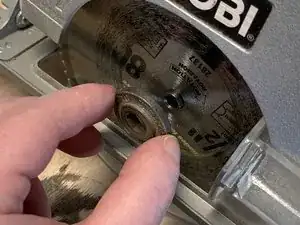

    • Remove the arbor washer.

  5. uG1VOZDM3OwobZhI
    uG1VOZDM3OwobZhI
    bWOPxcLY3O5bLTvq
    fljrip6IXhaHTKpH

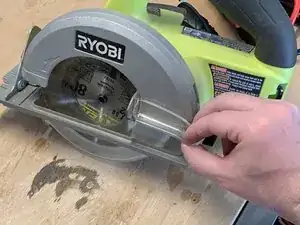

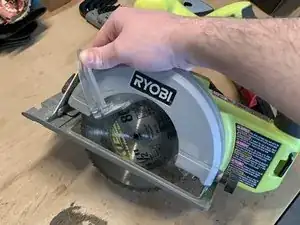

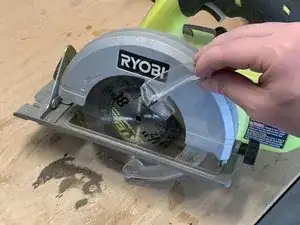

    • Completely retract the blade guard.

    • You can hold the blade guard in place with a clamp while you change the blade.

  6. wNkFu2PQCVuEbdpH
    wNkFu2PQCVuEbdpH
    jUqeWYGPj2x5CGXL
    OO22vQQBcpXSGH1O

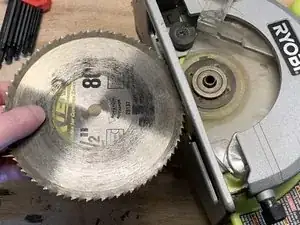

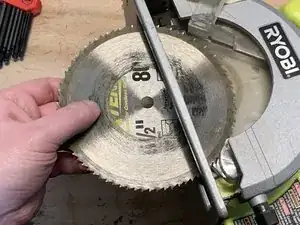

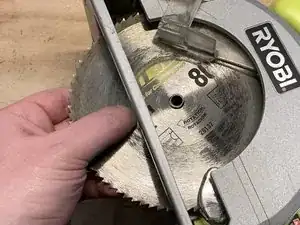

    • Set the circular saw on its side and carefully lift up the blade to unseat it from the arbor.

    • Slowly slide out the blade.

    • Use extreme caution when handling the blade!

  7. LSKUc5QuFdFFsL6E

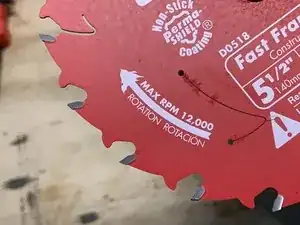

    • When inserting the new blade, be sure to note its rotation and install it in the correct orientation.

Abschluss

To reassemble your device, follow these instructions in reverse order.
