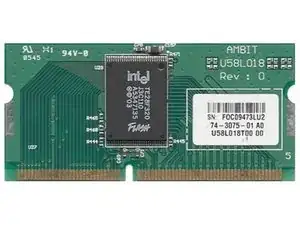

How to replace/upgrade Cisco 878 Router StrataFlash Memory module.
-
-

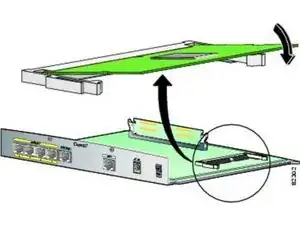

1. Gently push the top cover of the router away from you.
-
2. Lift it up top cover from the bottom of the router.
-
3. Remove top cover from the device.
-
-
-
1. Gently lift up inner metal shield from the bottom of the router.
-
2. Remove inner metal shield from the device (see the anchors on the picture).
-
-
-

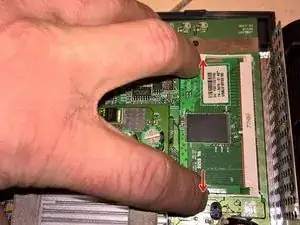

1. Place your fingers on the levers at the two sides of the slot, and push open.
-
2. Firmly pull the release lever away from the module until the module pops up.
-

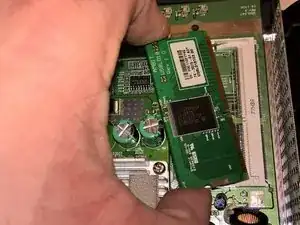

3. You can then remove the module from the module slot.
-
-
-
1. Insert the notched edge of the module into the slot at an angle.
-
2. Firmly press down the unnotched edge of the module until you hear a click. The indents must be fully in the notches.
-
To reassemble your device, follow these instructions in reverse order.
