Einleitung
If you need to access the internal components of the Cisco Meraki MC74-HW or replace a broken back housing cover or stand, use this guide. This process requires a plastic spudger, bit driver, 150 mm flex extension, and H2.0 bit. The following steps present no threat or potential damage to your device.
Werkzeuge
-
-

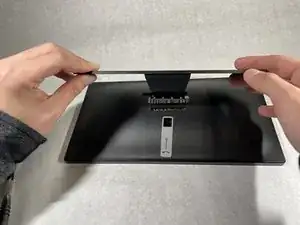

Extend the stand as far away as possible from the device.
-

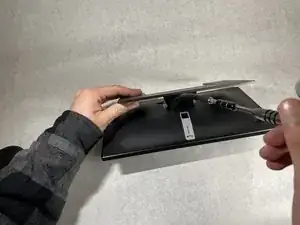

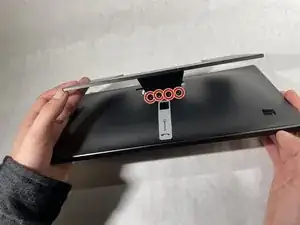

Remove all four 3 mm Hex 2 screws from the stand.
-
-
-

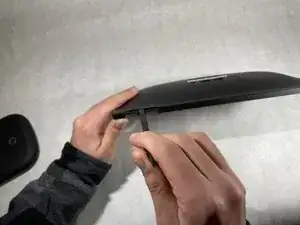

Insert a plastic spudger between the back housing cover and the sensor cover piece.
-

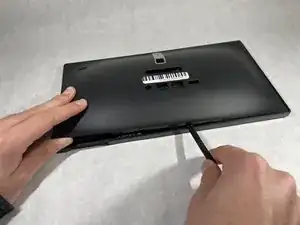

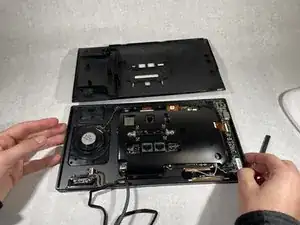

Work your way slowly around the edges of the device until all the clips have been unclipped.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
