Classen Over Seeder TS20HD 2012 Belt Guard Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Classen Over Seeder TS20HD 2012 Belt Guard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 20 Minuten

Einleitung

Follow this guide to remove the belt guide in order to replace it, or to access the belt and pulley.

  1. g5vFOM5NkuWfaZOH
    g5vFOM5NkuWfaZOH
    GPEPEXG2E4UjQyny

    • Before you begin, ensure that the machine is powered down and cool to the touch.

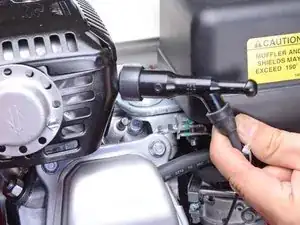

    • Disconnect the spark plug to prevent the engine from accidentally starting up during service:

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

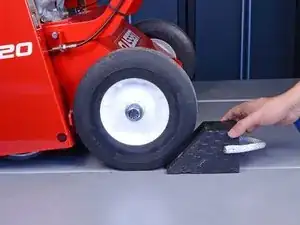

  2. uLxYVtuDSmeAY4Dj

    • To prevent the over seeder from rolling during service, place wheel chocks behind a rear wheel.

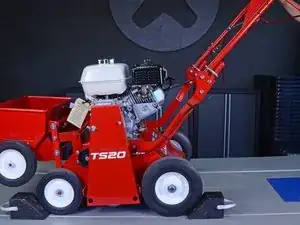

  3. eQaTMYJIS4puU6Oc
    eQaTMYJIS4puU6Oc
    rfodWBojiJGoiqqy

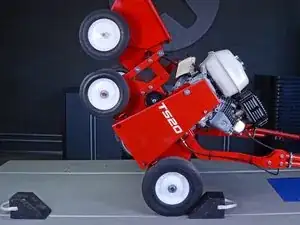

    • Push down on the main handle to tilt the over seeder back on its rear wheels.

    • Place some weights on the handle, or tie the handle down, to prevent the machine from falling forward.

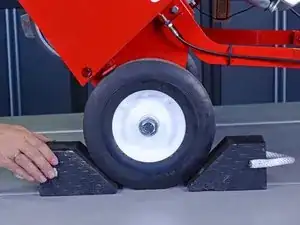

  4. aOgR6qtZWTjvxSKh

    • Place a wheel chock in front of a rear tire to keep the machine in place.

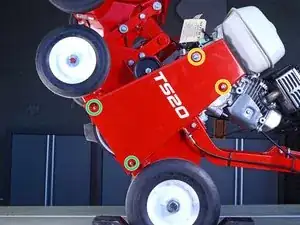

  5. GlLc1P4dxXmXTwmL
    GlLc1P4dxXmXTwmL

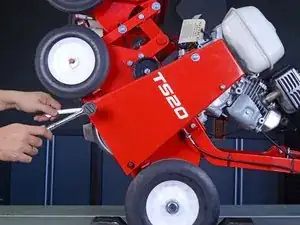

    xTov3IVI3YyHojQU

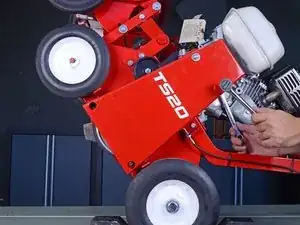

    Y1SRIE1SUHIrhMRV

    • Remove the four lock nuts securing the belt guard:

    • Two 1/2" lock nuts

    • Two 7/16" lock nuts

    • These lock nuts are recessed and require a socket extension to access.

    • Use box wrenches to hold the corresponding bolts in place as you loosen and remove the nuts.

  6. t2ArJIrlRMfc4JCB

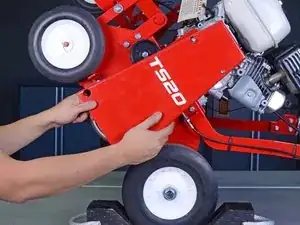

    t2ArJIrlRMfc4JCB
    DEgKwWHtppSdeYbi

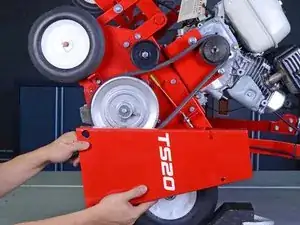

    xQdQLcxss2mv4HMp

    • Remove the belt guard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
