Classen Over Seeder TS20HD 2012 Drive Pulley Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Classen Over Seeder TS20HD 2012 Drive Pulley Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

10 - 40 Minuten

Einleitung

This guide shows how to remove and replace the drive pulley.

Note: The pulley can be hard to remove and requires a suitably sized gear puller to extract it.

Note: The pulley bolt may be heavily seized on with thread-lock. You may need to use a blowtorch to heat up the bolt in order to soften the thread-lock.

  1. g5vFOM5NkuWfaZOH
    g5vFOM5NkuWfaZOH
    GPEPEXG2E4UjQyny

    • Before you begin, ensure that the machine is powered down and cool to the touch.

    • Disconnect the spark plug to prevent the engine from accidentally starting up during service:

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. uLxYVtuDSmeAY4Dj

    • To prevent the over seeder from rolling during service, place wheel chocks behind a rear wheel.

  3. eQaTMYJIS4puU6Oc
    eQaTMYJIS4puU6Oc
    rfodWBojiJGoiqqy

    • Push down on the main handle to tilt the over seeder back on its rear wheels.

    • Place some weights on the handle, or tie the handle down, to prevent the machine from falling forward.

  4. aOgR6qtZWTjvxSKh

    • Place a wheel chock in front of a rear tire to keep the machine in place.

  5. GlLc1P4dxXmXTwmL
    GlLc1P4dxXmXTwmL
    xTov3IVI3YyHojQU
    Y1SRIE1SUHIrhMRV

    • Remove the four lock nuts securing the belt guard:

    • Two 1/2" lock nuts

    • Two 7/16" lock nuts

    • These lock nuts are recessed and require a socket extension to access.

    • Use box wrenches to hold the corresponding bolts in place as you loosen and remove the nuts.

  6. t2ArJIrlRMfc4JCB
    t2ArJIrlRMfc4JCB
    DEgKwWHtppSdeYbi
    xQdQLcxss2mv4HMp

    • Remove the belt guard.

  7. BXTOx2mHE25JoNxK
    BXTOx2mHE25JoNxK
    3FkeKCwSuMu45PKi

    • Use your fingers to pry the belt off the drive pulley.

    • If you are having trouble, make sure that the machine is not resting on the bail bar up by the handlebars, which tightens the idler pulley.

  8. D1rJxhyuMLi6GWhQ
    D1rJxhyuMLi6GWhQ
    io6UctsiZK5ESSms
    rrKdnadkLYFRno1l

    • Squeeze the belt and unhook it from the engine pulley.

    • Remove the rake belt.

  9. 4NBhKVtGBnJvv5GQ

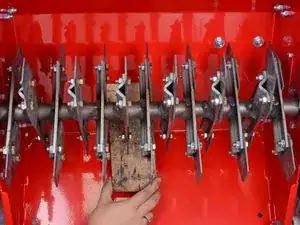

    • Place a block of wood to jam the blades so they don't rotate forward, allowing you to unscrew the pulley bolt.

  10. 2SZPxHpYSGgaSmIE
    2SZPxHpYSGgaSmIE
    kUvIBCZKuuO2aHjS

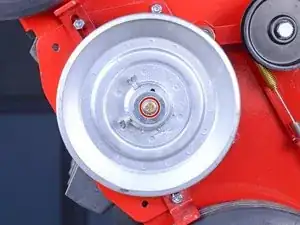

    • Use a 7/16" socket and socket wrench to remove the center pulley bolt.

    • The bolt can be heavily thread-locked in place, and the bolt head can shear off easily. To prevent breakage, use a torch and heat the bolt for two minutes to weaken the thread-lock.

  11. 3vPWjLhr4rfMWuRX

    • Remove the bolt, along with the pulley retainer washer and crush washer.

    • Re-assembly tip: Replace the crush washer with a new one and apply red thread-locker to the bolt threads.

  12. 4CtVecnqO5ZaJNrw
    4CtVecnqO5ZaJNrw
    32KAJibbDxWgWNaA

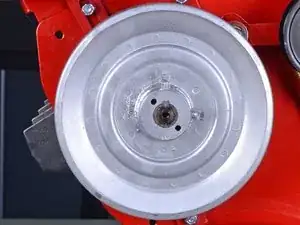

    • Use a 5/16" box wrench to loosen the two set screws.

    • You don't need to remove the set screws completely—two full turns sufficiently loosens each set screw.

  13. 211Oupnd2euYof3Y
    211Oupnd2euYof3Y
    ZZcIwqtJWGIVLOLs
    awh1vUjlRbYppECO

    • Your pulley may be loose enough to remove by hand. If not, follow this step to use the gear puller to remove the pulley.

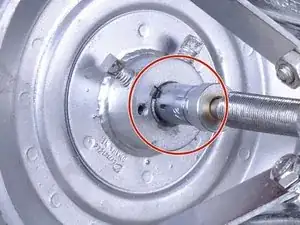

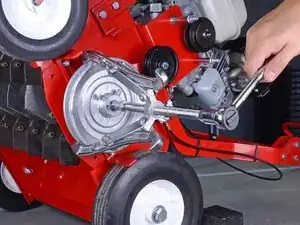

    • Attach a gear puller to the pulley.

    • If your gear puller's center pin is too thick for the pulley, use a 1/2" socket as a buffer.

    • Crank on the gear puller with a wrench to remove the pulley.

  14. g24NOOMeEIU4fAoE
    g24NOOMeEIU4fAoE
    xM2KCYlLLpyl2Wkq

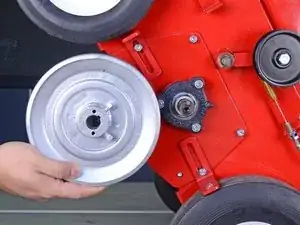

    • Remove the drive pulley.

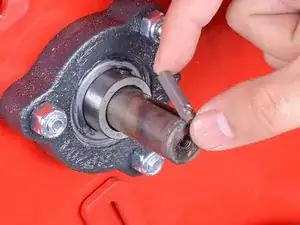

    • Remove the square axle key.

  15. DoGKtdjsGw5XoQJD
    DoGKtdjsGw5XoQJD
    GFoBV2bninx1NAyl

    • Re-assembly tips:

    • Lubricate the axle and key with machine oil.

    • Set the square key in the pulley first, then align the pulley onto the axle. This makes it slightly easier to hammer the pulley in place.

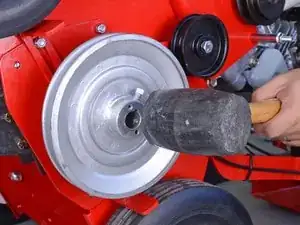

    • Hammer the pulley in place with a rubber mallet.

    • Before you tighten the set screws, make sure that the drive pulley's belt path aligns with the idler pulley.

Abschluss

To reassemble your device, follow these instructions in reverse order.
