Classen Sod Cutter HSC18AHD 2018 Eccentric Arm Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 2
Classen Sod Cutter HSC18AHD 2018 Eccentric Arm Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Follow this guide to replace the eccentric arms on a 2018 Classen Sod Cutter model HSC18AHD.

  1. 5R51rpeBCID1Ylcm
    5R51rpeBCID1Ylcm
    Ua3XgdqBZphRcuMF

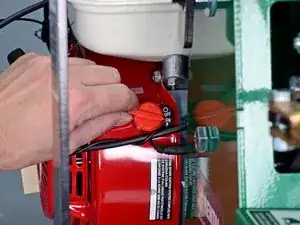

    • Make sure the engine is off and cool to the touch before you proceed.

  2. LEDQcVLuJnOHVEGQ

    • Place wheel chocks against the roller and rear wheel to prevent the machine from moving.

  3. 2DV3qBu1nDeKwS6y
    2DV3qBu1nDeKwS6y
    GXPy6GNkQFSRBawK

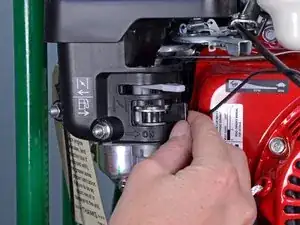

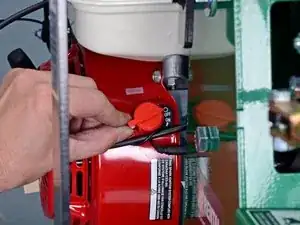

    • Flip the gas shutoff switch next to the motor to the left into the off position.

  4. s52JhZLLpWSNPVpF
    s52JhZLLpWSNPVpF
    H44OwOfpdqNcCfmA

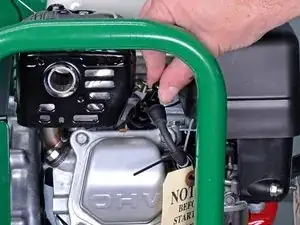

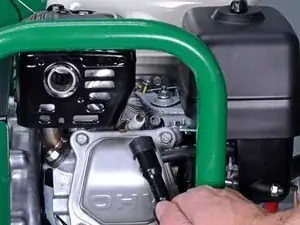

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  5. oQQKqATOkGlQwAai

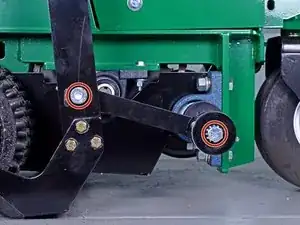

    • Use a 3/4 inch socket to remove the two bolts on the eccentric arm.

    • You may need to use a 3/4 inch wrench in combination with the socket wrench to hold the nuts in place.

    • During reassembly, apply threadlocker to the bolt securing the eccentric arm to the blade arm.

  6. vJH4ykuDPxNw3IMu
    vJH4ykuDPxNw3IMu
    GijQxZHZBddLq6pW

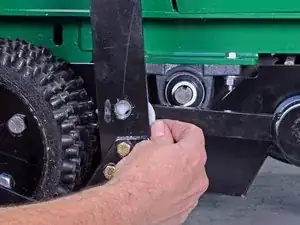

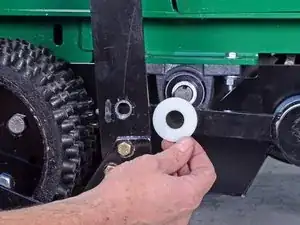

    • Remove the plastic washer from between the eccentric arm and the blade arm.

  7. vExB1JWVOAIEXjRZ

    • Lift the eccentric arm away from the blade arm.

  8. 2lK6gyP5TjkFTjAd
    2lK6gyP5TjkFTjAd
    kPwqmDR5JC3LCVAk

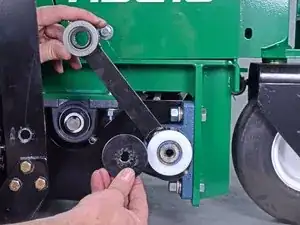

    • Remove the steel washer from the eccentric shaft.

  9. a1ql6TesZkLdgCrC

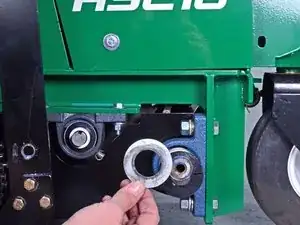

    • Remove the plastic washer from the eccentric shaft.

    what size is the nylon washer, that goes on before the control arm

    Derek Daniels -

  10. 54TiSFKkfjuwuZVk
    54TiSFKkfjuwuZVk
    i1UEUg1yoWQkCmkD

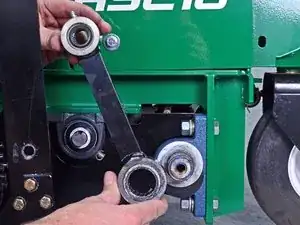

    • Remove the eccentric arm and plastic washer from the eccentric shaft.

    • Repeat steps 5–10 for the other eccentric arm.

    • During reassembly, use a grease gun to add grease to the bearings through the two Zerk fittings on each eccentric arm.

    The pictures are for the wrong model. Model A manual, only does so much good, for a model T

    TRACY -

Abschluss

To reassemble your device, follow these instructions in reverse order.
