Follow this guide to replace the upper drive chain on a 2018 Classen Sod Cutter model HSC18AHD.

  1. 5R51rpeBCID1Ylcm
    5R51rpeBCID1Ylcm
    Ua3XgdqBZphRcuMF
    • Make sure the engine is off and cool to the touch before you proceed.

  2. LEDQcVLuJnOHVEGQ
    • Place wheel chocks against the roller and rear wheel to prevent the machine from moving.

  3. 2DV3qBu1nDeKwS6y
    2DV3qBu1nDeKwS6y
    GXPy6GNkQFSRBawK
    • Flip the gas shutoff switch next to the motor to the left into the off position.

  4. s52JhZLLpWSNPVpF
    s52JhZLLpWSNPVpF
    H44OwOfpdqNcCfmA
    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  5. dsQuh3pVk3uWPsGn
    • Use a 1/2 inch socket to remove the three bolts securing the cutter blade on the left side of the machine.

    • You may need to use a 1/2 inch wrench in combination with the socket wrench to hold the nuts in place.

  6. W2rnLQmhPJPilQYJ

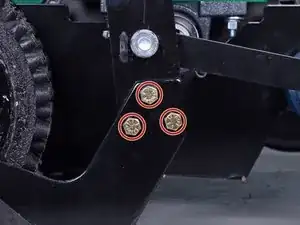

    • Use a 1/2 inch socket to remove the three bolts securing the cutter blade on the right side of the machine.

    • You may need to use a 1/2 inch wrench in combination with the socket wrench to hold the nuts in place.

  7. vkbKvCRCbeSHdhCW
    vkbKvCRCbeSHdhCW
    AZgqRYAT2vDaxObn
    t6mHOal3o1yZGYNB

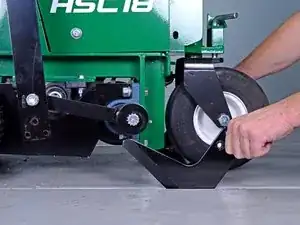

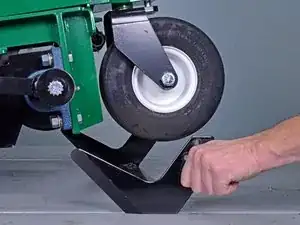

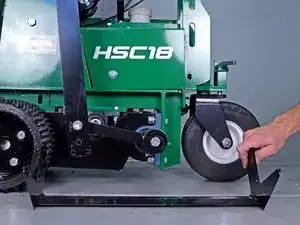

    • Slide the cutter blade out from under the machine to remove it.

    • Do not handle the blade from the cutting edge.

  8. pboOUpROmCx1EdTT

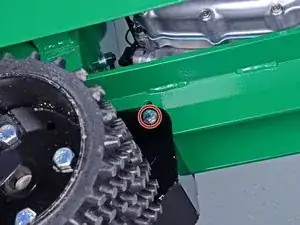

    • Use a 1/2 inch socket to remove the 130 mm-long bolt securing the chain guard.

  9. oOuQrRLAMGLyY6DU
    • Carefully tilt the sod cutter on its side.

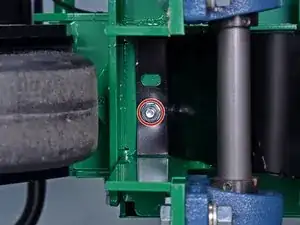

    • Use a 9/16 inch socket to remove the nut securing the chain guard.

  10. kXMrafWfXF1KXbFE
    kXMrafWfXF1KXbFE
    oQmNKpfyJ53tjTpB
    S5XCtPCEZEY4j1vS

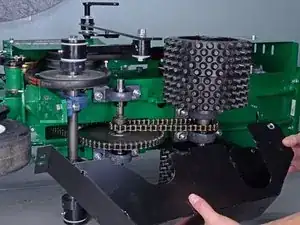

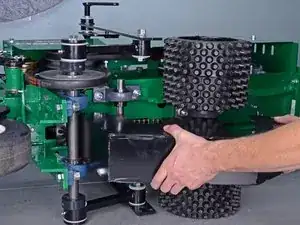

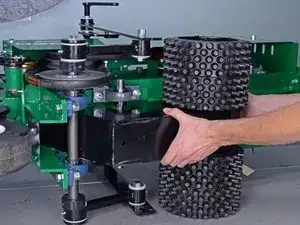

    • Remove the chain guard.

  11. MJcevQdVKdBsYWIU

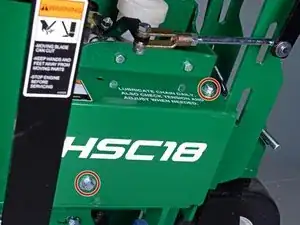

    • Use a 1/2 inch socket to remove the two bolts securing the upper chain guard to the frame.

  12. RQ1jtNpKV3JwZITU
    RQ1jtNpKV3JwZITU
    OxH6EFug5bybweb1

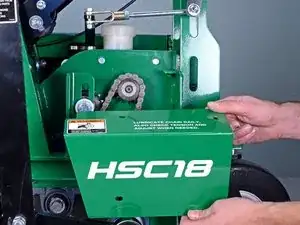

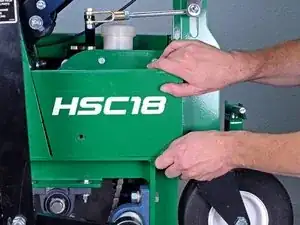

    • Remove the chain guard.

  13. 5cR5POA5PQWhTExP
    5cR5POA5PQWhTExP
    qPNX5RkURryiPA1f

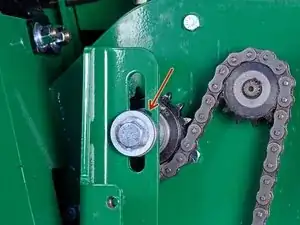

    • Use a pen to mark the location of the sprocket on the bracket.

    • During reassembly, line up the edge of the washer with the mark to get the sprocket as close to its original location as possible.

  14. jALuNZwELIIXJ5O5
    jALuNZwELIIXJ5O5
    vxKPs5hMV6d6S3j2
    F4QBwIeIjElpjjKf

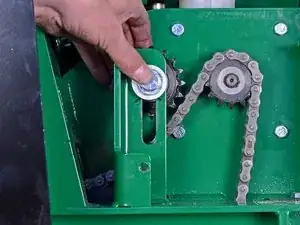

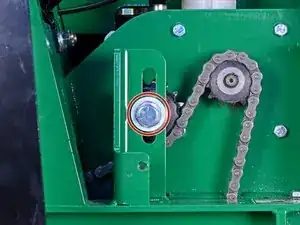

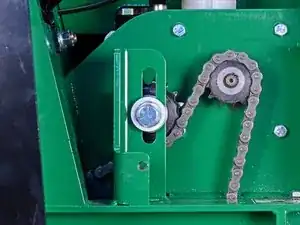

    • Use a 3/4 inch socket to loosen the bolt securing the tensioner sprocket until it can freely slide up and down the bracket.

  15. MF35yeYr2YrD5s1U
    MF35yeYr2YrD5s1U
    BXA1BjhLmZvET2ha
    • Roll the machine to turn the chain until the master link is accessible.

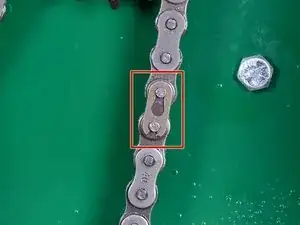

    • Notice the open end of the master link retaining plate is facing down.

  16. DNvBAPJdm1u5tKTZ
    DNvBAPJdm1u5tKTZ
    TBO3xOXwAWD1PZaQ

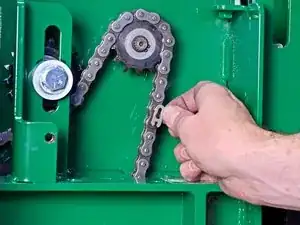

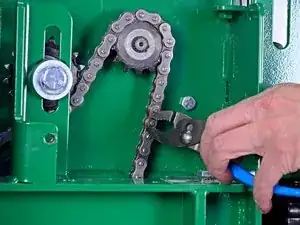

    • Use pliers to remove the master link retaining plate.

    • Install the new chain with the open end of the master link facing the same direction.

    • Do not install the new chain with the open end of the master link facing up or it could come off during operation.

  17. dXCXQj2ZBZCt3hFb
    dXCXQj2ZBZCt3hFb
    G33CqeP5qrgBEAg1

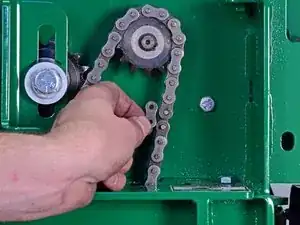

    • Remove the master link.

    • The chain will fall.

  18. 65waRiSwdigfsjNP
    65waRiSwdigfsjNP
    2BYBZ6eM6YFXfoDB

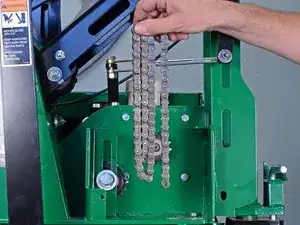

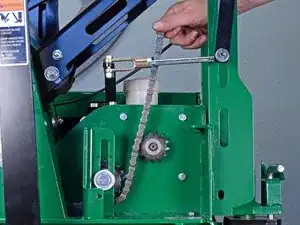

    • Remove the chain.

Abschluss

To reassemble your device, follow these instructions in reverse order.
