Classen Sod Cutter SC18AHDCA 2019 Blade Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Classen Sod Cutter SC18AHDCA 2019 Blade Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Follow this guide to remove and replace the cutting blade for the Classen Sod Cutter SC18AHDCA.

  1. RgXEJN2TXEPwbK4n
    RgXEJN2TXEPwbK4n
    kZjwbIANAxuIECHI

    • Before you begin, make sure that the machine is turned off.

    • For safety purposes, disconnect the spark plug.

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. FrmUhENSHR4PqrGm

    • Place wheel chocks against the roller and rear wheel to prevent the machine from moving.

  3. EErwWVkC5UlNTGVe
    EErwWVkC5UlNTGVe
    RJUN4HFLJHAFvaOf

    • Use a 1/2" socket wrench to remove the six 1 inch-long bolts securing both ends of the blade. You may need to use a 1/2" combination wrench to hold the nuts in place.

  4. SPLjEjNRslYCTd1T
    SPLjEjNRslYCTd1T
    wOyLIcIwIZiSlrCY

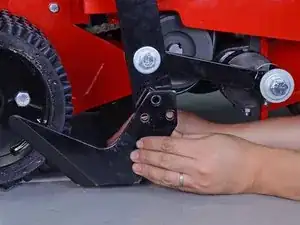

    • The blade can be very sharp! Do not handle the blade from the cutting edge.

    • Grasp the back of the blade and slide it away from the mount.

    • Remove the blade.

Abschluss

To reassemble your device, follow these instructions in reverse order.
