Classen Sod Cutter SC18AHDCA 2019 Engine Belt Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Classen Sod Cutter SC18AHDCA 2019 Engine Belt Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 Stunde

Einleitung

This guide shows how to remove and replace the engine belt on the Classen Sod Cutter SC18AHDCA. The engine belt transfers power from the engine to the blade piston, as well as to the speed reduction box (which drives the roller).

  1. RgXEJN2TXEPwbK4n
    RgXEJN2TXEPwbK4n
    kZjwbIANAxuIECHI

    • Before you begin, make sure that the machine is turned off.

    • For safety purposes, disconnect the spark plug.

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. FrmUhENSHR4PqrGm

    • Place wheel chocks against the roller and rear wheel to prevent the machine from moving.

  3. ia1n5blEmnIMfPqb
    ia1n5blEmnIMfPqb
    fBPEtQxSyvcuruPK

    • Use your hand to slowly rotate the blade pulley so that the blade is pulled back as far as possible.

  4. mMYQILdBK21wuILa
    mMYQILdBK21wuILa
    SELMegpRrEUIOMZI
    4tO3SsM6LJbd2ORn

    • Use a 1/2" socket wrench to remove the nine 1 inch-long bolts securing the right guard panel:

    • Two bolts on the front of the panel

    • Five bolts on the top of the panel

    • Two bolts on the back of the panel

  5. PWQVRjBMtPSEolbN
    PWQVRjBMtPSEolbN
    rV2GS2APVEEdLMm6
    UOOWUA2UaGBeT46g

    • Slide the guard panel forward until the panel clears the black blade arm.

    • Swing the panel outward to clear the screw post.

    • Remove the panel.

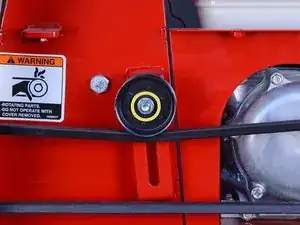

  6. 1aQfBQspWBXLdFgK

    • Use a 9/16" socket wrench and combination wrench to loosen (but not remove) the idler pulley bolt.

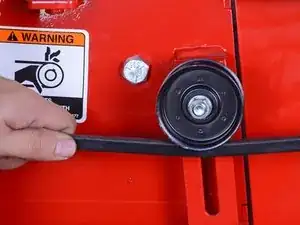

  7. KEVjgY6qBOMXhQKQ
    KEVjgY6qBOMXhQKQ
    TEiLVEQRF1VYLXuj

    • Re-assembly tip: When you are installing a replacement belt, follow this step to check that the idler pulley is sufficiently tensioning the belt.

    • Use your fingers to roll the belt. If you cannot twist the belt more than a quarter turn, the belt is sufficiently tensioned. If the belt is too loose, set the idler pulley lower to tension the belt more.

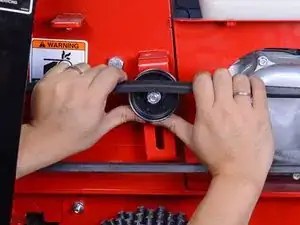

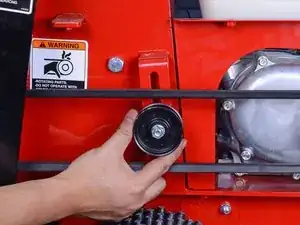

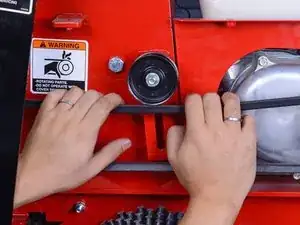

  8. BFGoj4gEoHXwTXjR
    BFGoj4gEoHXwTXjR
    rGjLOITbLENiPSim
    e5VetUOAKcmKLGXJ

    • Pull the engine belt downwards and slide it off the idler pulley.

    • Slide the belt over the top of the pulley.

    • Slide the pulley down so that it is not applying any tension to the belt.

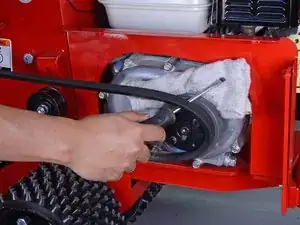

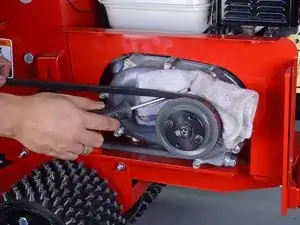

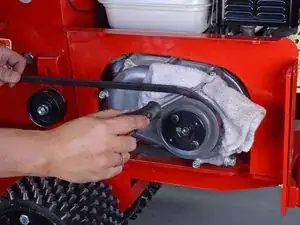

  9. ZwLZBu5S6M4RTPYC
    ZwLZBu5S6M4RTPYC
    GMHiKtGccWhjdpGm
    PgVnrxyLRlotVUI5

    • If you do not plan to reuse the belt, simply cut the belt in order to remove it. Cutting the belt is a much simpler and safer procedure.

    • A tensioned belt can cause severe injuries. Wear thick gloves if possible, and position your hands carefully to avoid pinching.

    • Place a rag behind the engine pulley to prevent the engine surface from being scuffed.

    • Wedge a long bolt or screwdriver shaft between the belt and the engine pulley.

    • Carefully feed the belt forward while using the shaft to derail the belt off the pulley.

    • Depending on how old the belt is, this may take significant force.

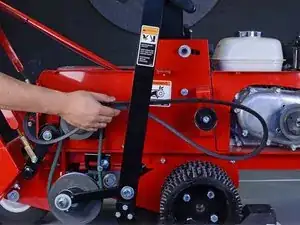

  10. 4U6SJBGRSZNbHhiZ

    • Remove the engine belt.

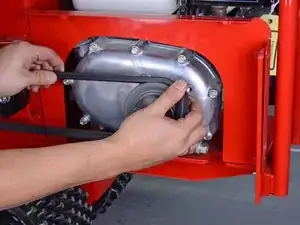

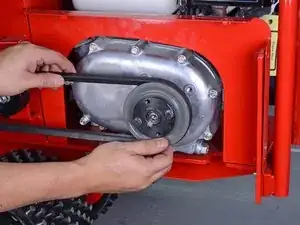

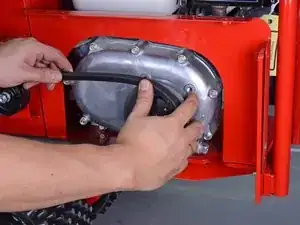

  11. ECeZKCXhyHYDFBsj
    ECeZKCXhyHYDFBsj
    EMj4FgQeKNp2QMrU
    MTsZxuefJuDMLcJf

    • Re-assembly tip: The next two steps show how to reattach and tension a replacement belt.

    • The belt can move unexpectedly and cause severe pinching injuries if you're not careful. Wear thick gloves and be conscious where your hands are while you work.

    • Loop the belt onto the rear pulley. Use your fingers to align the front of the belt to the engine pulley, and gradually push the belt into the pulley groove.

    • Carefully feed the belt forward as you push the belt into the pulley groove, until the entire belt is properly seated in the pulley.

Abschluss

To reassemble your device, follow these instructions in reverse order.
