Classen Sod Cutter SC18AHDCA 2019 Guard Panel Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Classen Sod Cutter SC18AHDCA 2019 Guard Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Follow this guide to remove the right guard panel for the Classen Sod Cutter SC18AHDCA in order to replace it or access the belt drive.

  1. RgXEJN2TXEPwbK4n
    RgXEJN2TXEPwbK4n
    kZjwbIANAxuIECHI

    • Before you begin, make sure that the machine is turned off.

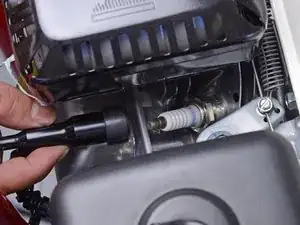

    • For safety purposes, disconnect the spark plug.

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  2. FrmUhENSHR4PqrGm

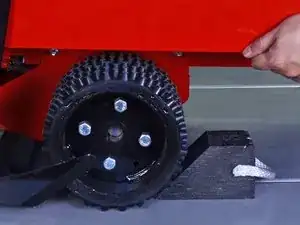

    • Place wheel chocks against the roller and rear wheel to prevent the machine from moving.

  3. ia1n5blEmnIMfPqb
    ia1n5blEmnIMfPqb
    fBPEtQxSyvcuruPK

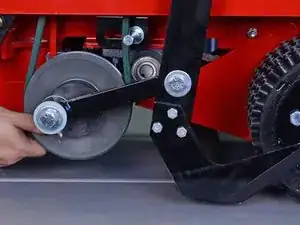

    • Use your hand to slowly rotate the blade pulley so that the blade is pulled back as far as possible.

  4. mMYQILdBK21wuILa
    mMYQILdBK21wuILa
    SELMegpRrEUIOMZI
    4tO3SsM6LJbd2ORn

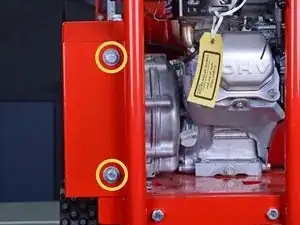

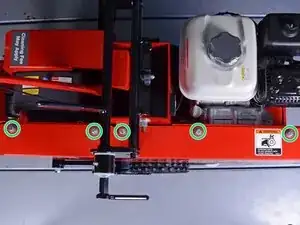

    • Use a 1/2" socket wrench to remove the nine 1 inch-long bolts securing the right guard panel:

    • Two bolts on the front of the panel

    • Five bolts on the top of the panel

    • Two bolts on the back of the panel

  5. PWQVRjBMtPSEolbN
    PWQVRjBMtPSEolbN
    rV2GS2APVEEdLMm6
    UOOWUA2UaGBeT46g

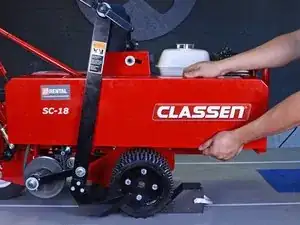

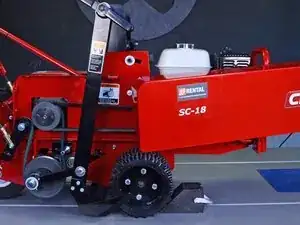

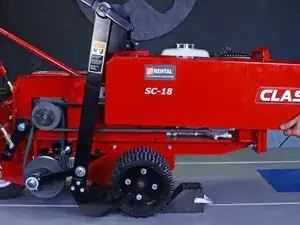

    • Slide the guard panel forward until the panel clears the black blade arm.

    • Swing the panel outward to clear the screw post.

    • Remove the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
