Classique 087CQA Switches Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

10 - 15 Minuten

Einleitung

Defective switches can prevent the hair dryer from working properly, so we are replacing the switches. Replacing the switches should ensure the hair dryer turns on and off, and changes to hot or cold air.

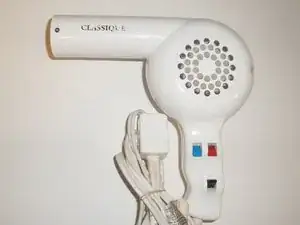

  1. OqIDAuV4clfxSV5G

    • Begin with the side with switches

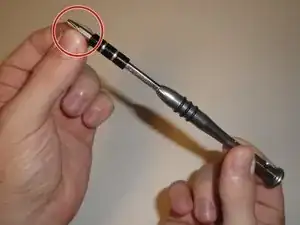

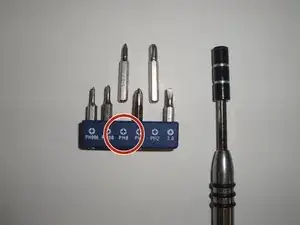

  2. a4kep6iLXXPN5XPH
    a4kep6iLXXPN5XPH
    dK5oyvboqibXSGxA

    • Remove the Phillips PH0 bit

    • Insert the bit into the screwdriver

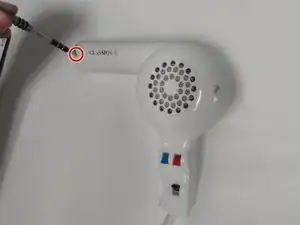

  3. SmK4SWerS1AQc1YF

    • Unscrew the shell screw (1) with the screwdriver

    • 5mm Phillips flat-head screw

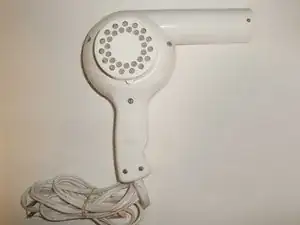

  4. 6MLdvVjDDoGTHDUB

    • Flip the hair dryer over to the side without switches

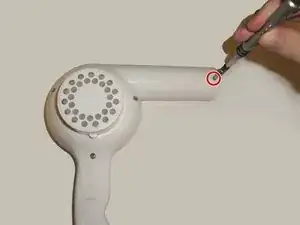

  5. OIF5vRBCLi4jeIjs

    • Unscrew the shell screw (1) with the screw driver

    • 5mm Phillips flat-head screw

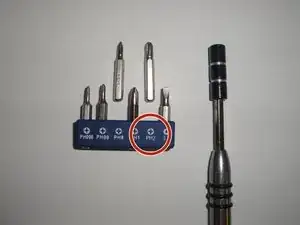

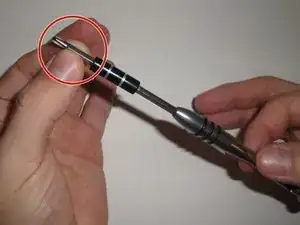

  6. bpBJqJEnEOpnpUF5
    bpBJqJEnEOpnpUF5
    oyeDMUBfXcgDnfZl

    • Remove the bit from the screwdriver and insert the Phillips PH2 bit

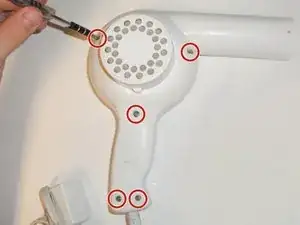

  7. uMQHrErEuMSYBsF4

    • Unscrew the remaining shell screws (5) with the screwdriver

    • 15mm Phillips round-head screws

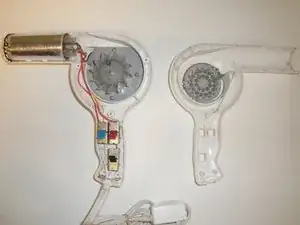

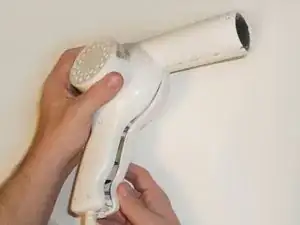

  8. wNgsuiuYSnRIfRdW
    wNgsuiuYSnRIfRdW
    eollQeZfqXsWCfj5

    • Gently pull the two sides apart

    • Separate each side

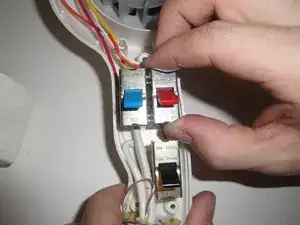

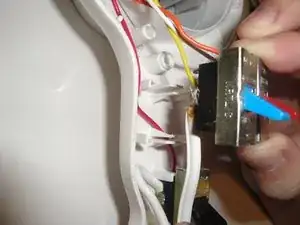

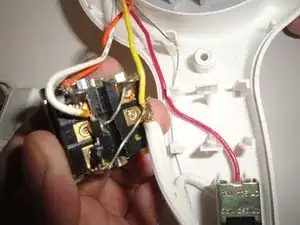

  9. JxUtEIH5bjmJxjT4
    JxUtEIH5bjmJxjT4
    WVUMWHeTy4C2uDKp
    QxcpVkfI1CZGsaGR

    • Pull up on the switches

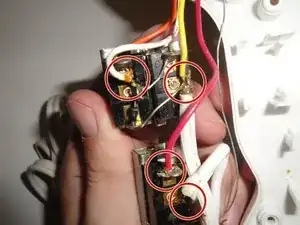

  10. PO5BQIBBgG6pWHFE

    • Verify wires are connected to each switch and are in good condition

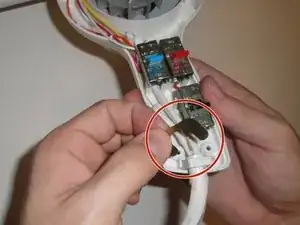

  11. oqGi3PTGKrOsOSUx

    • Reseat the switches

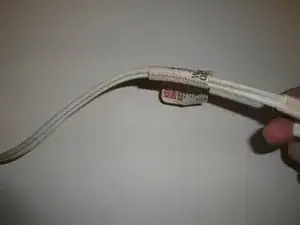

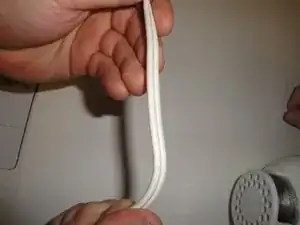

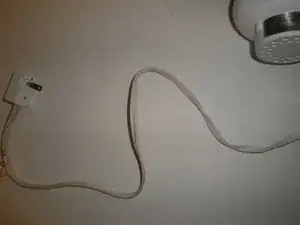

  12. bVryR1rqK5lZWTmn
    bVryR1rqK5lZWTmn
    KcSUJQT6sh4KJF4h
    X6IQgkICVB6pkaqP

    • Check power cord for tears or kinks

Abschluss

To reassemble your device, follow these instructions in reverse order.
